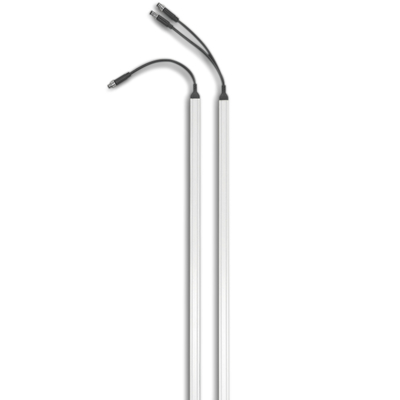

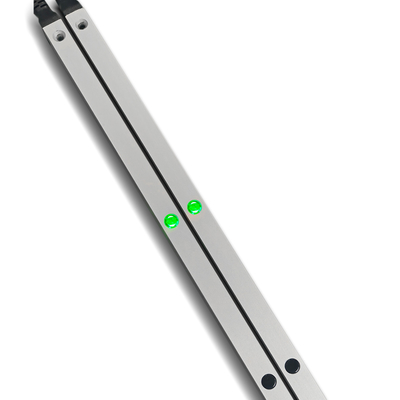

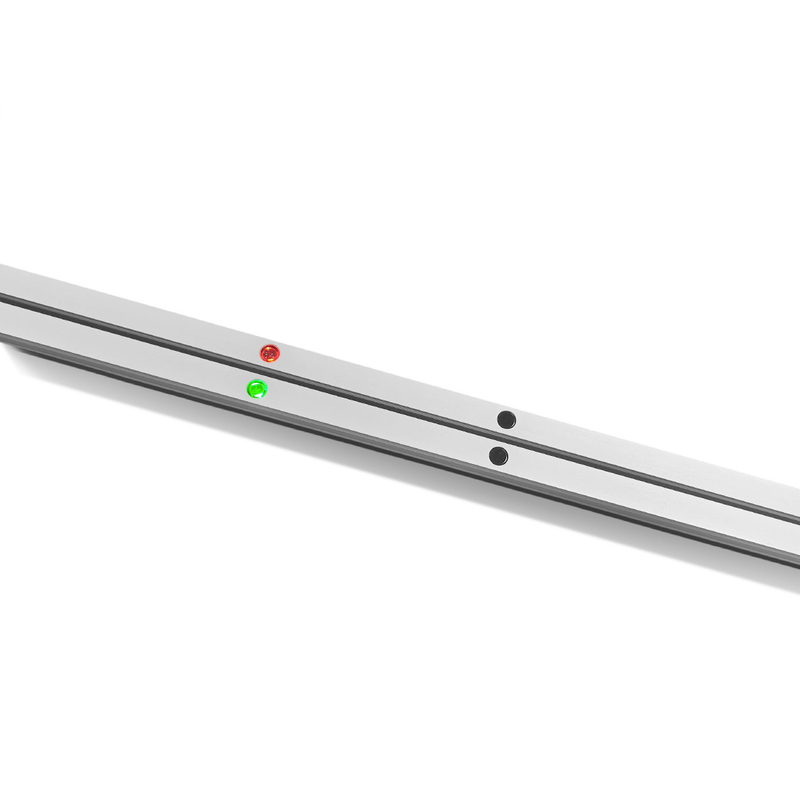

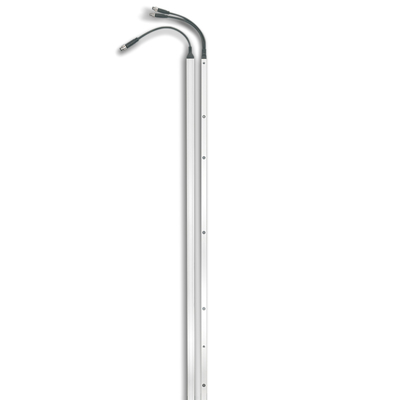

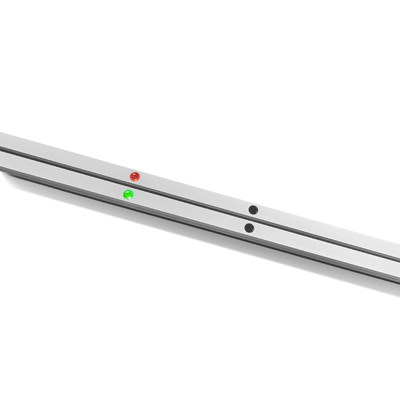

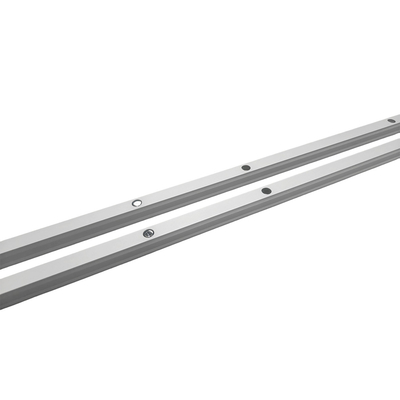

Ultra-Slim Safety light Curtain Sensor for Tight Door Track

Brand Name: JUTAI
Model Number: CG15-8L
MOQ: Support 1-10 pcs for testing
Price: Negotiation
Packaging Details: 1 set 1 cartoon. 8 set 1 big cartoon
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Working Voltage:
12 - 30VADC
Working Current:
64mA@DC12V / 44mA@DC24V / 34mA@DC30V
Output Load:
Maximum Switching Current: 1A, Maximum Switching Voltage: 125V@AC, 60V@DC
Output:
Transmitter: - ；Receiver: NO, NC, COM
LED Status:
Transmitter: Green Light Always On (normal) ；Receiver: Red Light (object Obstruction), Green Light (unobstructed, Power Supply), Red Light Flashing (first Power On)
Angle:
Transmitter: ±15° ；Receiver: ±65°

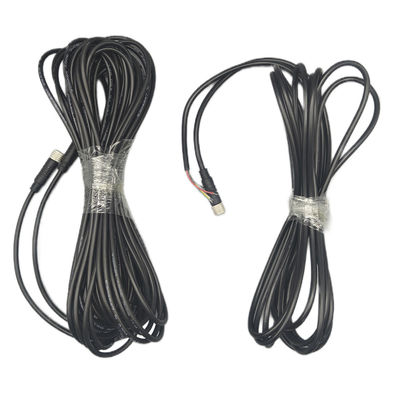

Cable Length:
Transmitter Size 12m Receiver Size 4 M
Number Of Optical Eyes:
8
Light Eye Distance:
175 Mm
Wavelength:
950nm
Detection Distance:
12m (Indoor/Outdoor)
Response Speed:
23 Ms
Closest Installation Distance:
50 Cm
Cable Specifications:
AWG26
Shell Material:
Natural Alumina
Protection Grade:
IP67
Operation Temperature:
-40°C ~ +70°C
Supply Ability:
1000 set per month
Highlight:

ultra-slim safety light curtain

,

safety light curtain for door track

,

vehicle loop detector sensor

Product Description

Ultra-Slim Safety light Curtain Sensor for Tight Door Track

❄️ Arctic-Proof Protection for Your Cold Chain

Defying Deep Freeze Challenges
Where temperatures plummet and frost never thaws, our freezer-ready safety curtain stands guard over cold storage doors with unwavering vigilance. Engineered for sub-zero environments in food distribution, pharmaceutical hubs, and frozen logistics, this arctic-grade shield battles ice buildup, condensation, and thermal shock that cripple ordinary sensors. Its frost-resistant beams detect gloved hands, pallet jacks, or stray products instantly—preventing crushing accidents before heavy freezer doors seal shut. The hermetically sealed design repels moisture intrusion while protecting door mechanisms from ice jams and corrosion. No more frantic defrosting or false alarms disrupting your frozen workflow—just silent, reliable sentinel that keeps personnel safe and your cold chain moving smoothly, even at -30°C.

Uninterrupted Safety in the Ice Arena

Guardian of the Frost Line
Step into freezer warehouses and blast chill rooms with confidence, knowing an intelligent protector watches every door cycle. Our specialty cold storage safety curtain thrives where others fail—its thermal-adaptive tech maintains flawless object detection amid swirling vapors and rapid temperature swings. Unlike generic systems, it prevents door damage from ice-induced strains and freeze-seal entrapments, while actively scanning for workers in bulky protective gear. The low-energy heating defense combats frost without wasting precious cold air, preserving energy efficiency. This is zero-maintenance peace of mind: a set-and-forget solution that endures relentless freeze-thaw cycles, ensuring compliance and productivity while protecting both people and perishables.



Ultra-Slim Safety light Curtain Sensor for Tight Door Track 0





Product Size



Ultra-Slim Safety light Curtain Sensor for Tight Door Track 1





Wiring



Ultra-Slim Safety light Curtain Sensor for Tight Door Track 2





Production



Ultra-Slim Safety light Curtain Sensor for Tight Door Track 3 Ultra-Slim Safety light Curtain Sensor for Tight Door Track 4 Ultra-Slim Safety light Curtain Sensor for Tight Door Track 5



Ultra-Slim Safety light Curtain Sensor for Tight Door Track 6 Ultra-Slim Safety light Curtain Sensor for Tight Door Track 7 Ultra-Slim Safety light Curtain Sensor for Tight Door Track 8





Product Series



CG15-8L CL05-10L CL10-8L CL10-16L CL15-8L

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 91.5 m 8 Infrared Beam

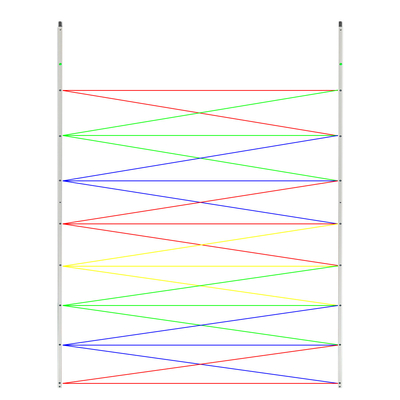

Cross Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 10
0.5 m 16 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 11

1 m 8 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 12

1 m 16 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 13

1.5 m 8 Infrared Beam

Parallel Beam Version
CL15-16L CL20-8L CL20-16L CL25-8L CL25-16L

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 14

1.5 m 16 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 15

2 m 8 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 16

2 m 16 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 17

2.5 m 8 Infrared Beam

Parallel Beam Version

Ultra-Slim Safety light Curtain Sensor for Tight Door Track 18

2.5 m 16 Infrared Beam

Parallel Beam Version
