Access Control System Controller
>

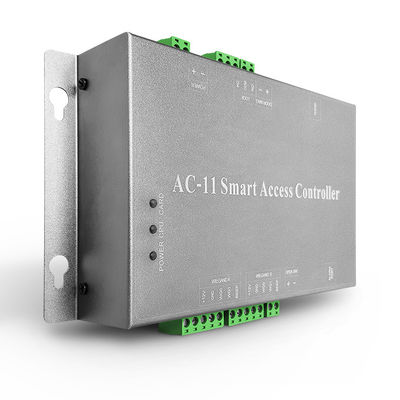

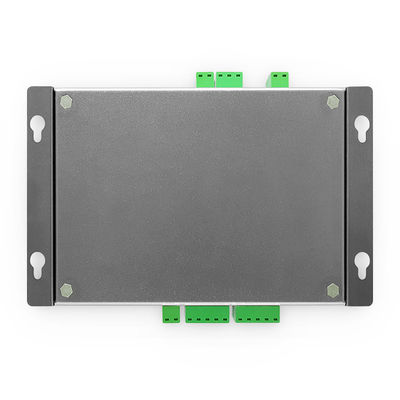

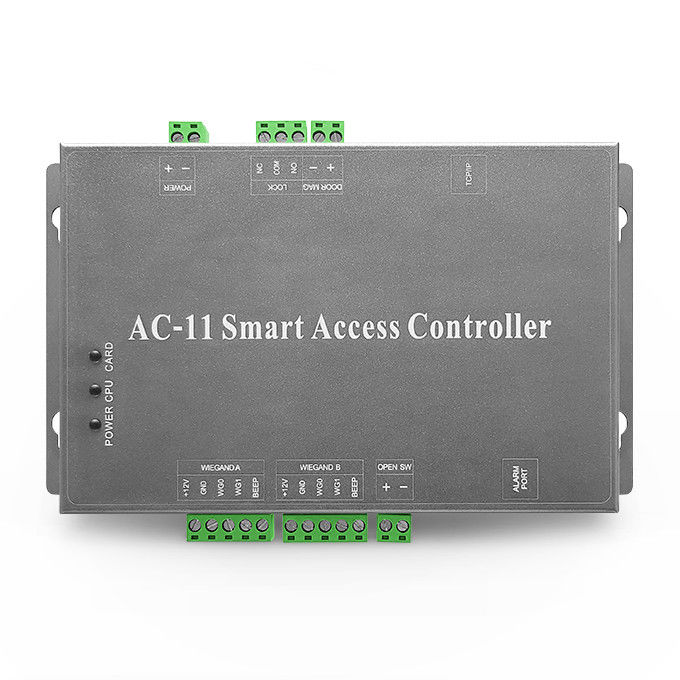

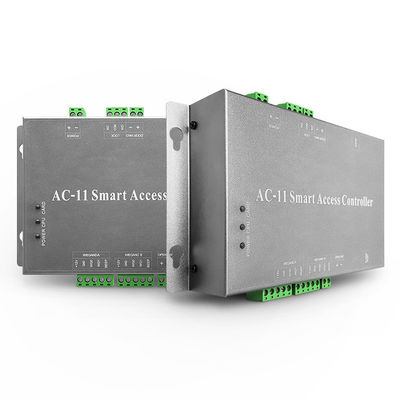

Modern AC-11 One Door Access Controller For 26000 Users Unlimited Access Level

Modern AC-11 One Door Access Controller For 26000 Users Unlimited Access Level

Brand Name: JUTAI
Model Number: AC-11
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC
Document:
Name:
One Door Access Controller
Event Record:
100,000
Work Voltage:
DC 9 - 14 V
Work Current:
<350 MA
Operating Temp:
-20℃ ~ +70℃
Card Holder:
26,000 Users
Relay:
2 Groups 7A Door Lock Relay Output
Sensor:
2 Groups Door Sensor
Interface 1:
4 Groups Wiegand 26 / 34 Interface
Interface 2:
1 Group RS 485 Interface
Interface 3:
1 Group TCP / IP Interface
Network Communication Port:
RJ-45 Self-Negotiate 10 / 100 Mbps
Time Zone:
64 Groups
Access Level:
Unlimited Access Level
Digital Output:
Max 4 Dry Contact Relay
Protection Supporting:
Power Protection / Surge Protection
On Board LED Control:
Power / Communication / LAN / Event / Error
Data Base:
ACCESS Or SQL
Backup Battery:
YES
Product Size:
191*128*40 Mm
Package Size:
13*17*4.5 CM
Net Weight:
372 G
Gross Weight:
500 G
HS Code:
8537109090
Supply Ability:
5000 Set per Month
Highlight:

AC-11 One Door Access Controller

,

Unlimited Access One Door Access Controller

,

Modern One Door Access Controller

Product Description

AC-11 One Door Access Controller Support 26,000 Users Unlimited Access Level



    Introducing the AC-11 One Door Access Controller, a cutting-edge solution designed to meet the demanding security needs of modern facilities. With support for up to 26,000 users, this versatile controller is perfect for a wide range of applications, from small businesses to large corporate environments. Its capability to manage an unlimited number of access levels allows for precise customization, ensuring that only authorized personnel can enter specific areas.

    The AC-11 is engineered with reliability and ease of use in mind. Its intuitive interface and straightforward installation process make it an ideal choice for both new and existing security systems. The device seamlessly integrates with various access technologies, providing a comprehensive security solution that adapts to your evolving needs.

    One of the standout features of the AC-11 is its robust construction, designed to withstand high traffic and harsh environmental conditions. This durability ensures consistent performance and long-term reliability, reducing maintenance costs and downtime. Additionally, the controller's advanced data management capabilities allow for easy monitoring and auditing of access events, providing valuable insights into user activity and enhancing overall security.



Built In Web Server

Built-in web server where network configuration such as IP address, subnet mask,server IP can be easily done upon;No more factory programming needed as the firmware can be upgraded via the on-board web server.



Hign Performance

Based on the latest HCB (Hybrid Compact Board), JTAC-11 is a high reliability,high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. This control panel can fulfill most demanding requirement in physical access control environment.



Door Interlocking

In 2 doors interlocking within the control panel,no need external wiring. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.



Super Network Processor And Combined With Mass Storage Technology

Adopting super network processor and combined with mass storage technology,and which can achieve real network data exchange.



                                       Access Control




Feature Highlight

  • Support Single Door
  • Unlimited Access Level
  • Support Car Park Mode
  • Support Dynamic Reader Location
  • Compatible with Various Reader Technologies
  • Peer To Peer Global Anti-Passback
  • Configurable Digital /Supervised Inputs (8)
  • Event Based Triggering (EBT)
  • Unlimited Access Level
  • Onboard &Cross-Board Interlocking
  • User Counting (Card Holder / Car Park)
  • Advance Encryption Standard (AES)
  • Reader Output Control
  • Support 26,000 Users And 100,000 Events Memory




Function Features

  • Remotely managed using standard web browser
  • Connect to any Wiegand or Hi-O reader.Supports up to 4readers
  • Web Browser Security —uses SSL 3.0(Secure Socket Layer)and TLS
  • (Transport Layer Security)to establish a secure web browser connection
  • Network Configuration—Works within DHCP or Static IP networks for plug and play installation
  • Multi Language Support—English and chinese for selection





IP INTELLIGENCE CONTROLLER INTEGRATED JUTAI SMART READER

  • Cost-Effective-Uses Power over Ethernet (PoE)to power reader and door strike.Eliminates the need for separate power supplies for many situations
  • Remote Management-Managed over the network through a standard web browser.No software installation necessary
  • Integrated wigand/rs485/TCP/IP Reader,The included reader/controller reads EM/M1 cards and opens the door;a secure,side-mounted door interface module places door contact in a secure area
  • Scalable-Can be remotely reconfigured through the web browser from stand-alone operation to a system controller in a host environment of multiple controllers
  • All-in-One UI Page —“Door Dashboard”accesses door commands,status,alarms,and recent events from all screens Back-up and restore of data from user PC
  • Manages Card only,PIN only,Card and PIN transactions
  • Manages up to 260000 cardholders/credentials
  • Manages 64 schedules
  • View last 100000 events
  • Standardized report generation,including CSV export
  • First Person In (Snow day)and PIN suppression schedules
  • Wet or dry door relays,including 12 VDC wet relay lock support
  • Interface to Hi-O door hardware and Hi-O compliant readers provides streamlined and smart installation
