Access Control System Controller
>
Versatile Offices AC-44 4 Door Access Controller FCC Certification

Versatile Offices AC-44 4 Door Access Controller FCC Certification

Brand Name: JUTAI
Model Number: AC-22
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC
Document:
Name:
4 Door Access Controller
Event Record:
100,000
Work Voltage:
DC 9 - 14 V
Work Current:
<350 MA
Operating Temp:
-20℃ ~ +70℃
Card Holder:
26,000 Users
Relay:
2 Groups 7A Door Lock Relay Output
Sensor:
2 Groups Door Sensor
Interface 1:
4 Groups Wiegand 26 / 34 Interface
Interface 2:
1 Group RS 485 Interface
Interface 3:
1 Group TCP / IP Interface
Network Communication Port:
RJ-45 Self-Negotiate 10 / 100 Mbps
Time Zone:
64 Groups
Access Level:
Unlimited Access Level
Digital Output:
Max 4 Dry Contact Relay
Protection Supporting:
Power Protection / Surge Protection
On Board LED Control:
Power / Communication / LAN / Event / Error
Data Base:
ACCESS Or SQL
Backup Battery:
YES
Product Size:
191*128*40 Mm
Package Size:
13*17*4.5 CM
Net Weight:
372 G
Gross Weight:
500 G
HS Code:
8537109090
Supply Ability:
5000 Set per Month
Highlight:

Offices 4 Door Access Controller

,

Versatile 4 Door Access Controller

,

FCC 4 Door Access Controller

Product Description

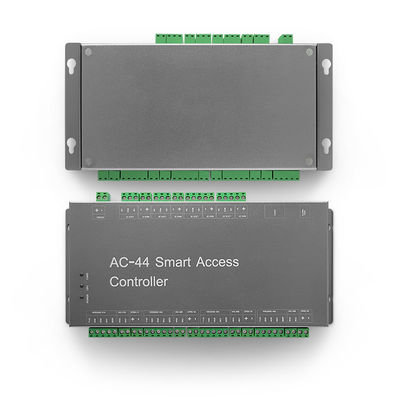

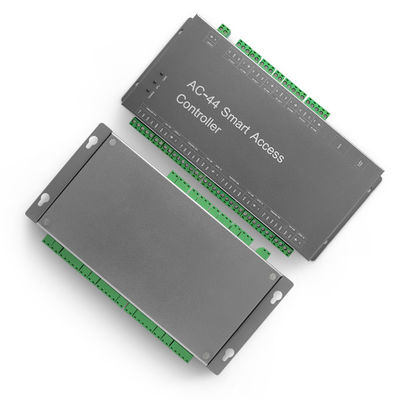

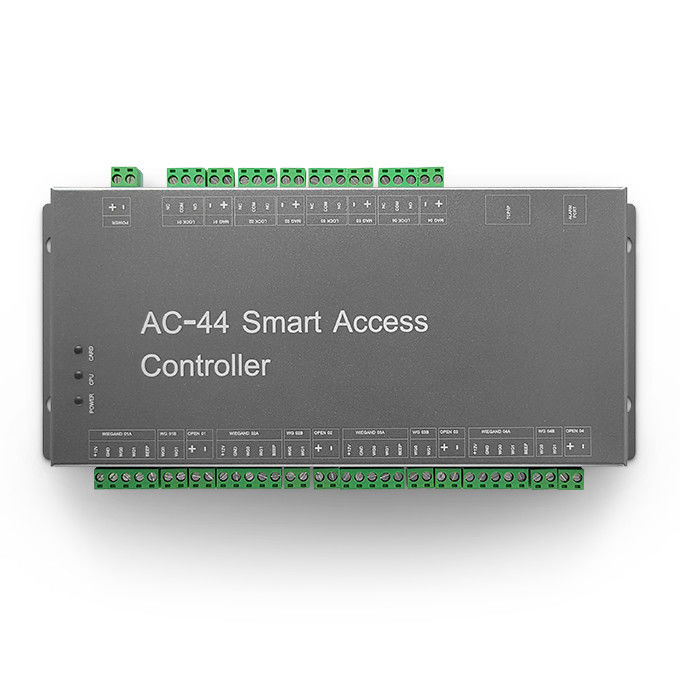

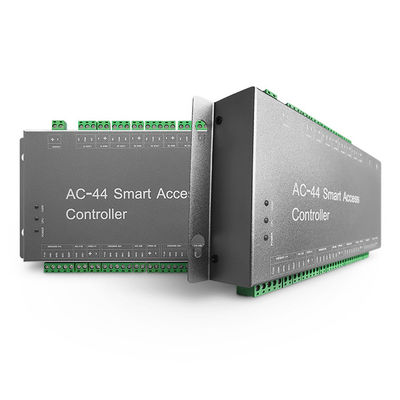

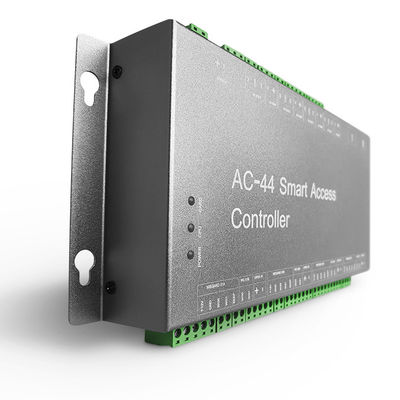

AC-44 Four Door Access Controller Compatible with Various Reader Technologies



    Introducing the AC-44 Four Door Access Controller, a versatile solution designed to meet the diverse security needs of modern facilities. This advanced controller supports multiple entry points, making it ideal for complex environments such as corporate offices, educational institutions, and healthcare facilities. The AC-44 is compatible with various reader technologies, including RFID, biometric, and keycard systems, providing a flexible and comprehensive security solution.

    The AC-44 stands out with its robust integration capabilities, allowing seamless incorporation into existing security infrastructures. Its user-friendly interface and straightforward setup process ensure that installation and management are efficient and hassle-free. By supporting a wide range of reader technologies, the AC-44 offers the adaptability required to meet evolving security demands, ensuring that your facility remains secure and future-proof.

    Designed with durability and reliability in mind, the AC-44 can withstand high traffic and challenging environmental conditions. This ensures consistent performance and reduces the need for frequent maintenance, lowering overall operational costs. Additionally, the controller's advanced data management features allow for real-time monitoring and detailed auditing of access events, providing valuable insights into user activity and enhancing overall security protocols.



Built In Web Server

Built-in web server where network configuration such as IP address, subnet mask,server IP can be easily done upon;No more factory programming needed as the firmware can be upgraded via the on-board web server.



Hign Performance

Based on the latest HCB (Hybrid Compact Board),JTAC-11 is a high reliability,high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry.this control panel can fulfill most demanding requirement in physical access control environment.



Door Interlocking

In 2 doors interlocking within the control panel,no need external wiring. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.



Super Network Processor And Combined With Mass Storage Technology

Adopting super network processor and combined with mass storage technology,and which can achieve real network data exchange.



                                       Access Control




Feature Highlight

  • Support Four Door
  • Unlimited Access Level
  • Support Car Park Mode
  • Support Dynamic Reader Location
  • Compatible with Various Reader Technologies
  • Peer To Peer Global Anti-Passback
  • Configurable Digital /Supervised Inputs (8)
  • Event Based Triggering (EBT)
  • Unlimited Access Level
  • Onboard &Cross-Board Interlocking
  • User Counting (Card Holder / Car Park)
  • Advance Encryption Standard (AES)
  • Reader Output Control
  • Support 26,000 Users And 100,000 Events Memory




Function Features

  • Remotely managed using standard web browser
  • Connect to any Wiegand or Hi-O reader.Supports up to 4readers
  • Web Browser Security —uses SSL 3.0(Secure Socket Layer)and TLS
  • (Transport Layer Security)to establish a secure web browser connection
  • Network Configuration—Works within DHCP or Static IP networks for plug and play installation
  • Multi Language Support—English and chinese for selection





IP INTELLIGENCE CONTROLLER INTEGRATED JUTAI SMART READER

  • Cost-Effective-Uses Power over Ethernet (PoE)to power reader and door strike.Eliminates the need for separate power supplies for many situations
  • Remote Management-Managed over the network through a standard web browser.No software installation necessary
  • Integrated wigand/rs485/TCP/IP Reader,The included reader/controller reads EM/M1 cards and opens the door;a secure,side-mounted door interface module places door contact in a secure area
  • Scalable-Can be remotely reconfigured through the web browser from stand-alone operation to a system controller in a host environment of multiple controllers
  • All-in-One UI Page —“Door Dashboard”accesses door commands,status,alarms,and recent events from all screens Back-up and restore of data from user PC
  • Manages Card only,PIN only,Card and PIN transactions
  • Manages up to 260000 cardholders/credentials
  • Manages 64 schedules
  • View last 100000 events
  • Standardized report generation,including CSV export
  • First Person In (Snow day)and PIN suppression schedules
  • Wet or dry door relays,including 12 VDC wet relay lock support
  • Interface to Hi-O door hardware and Hi-O compliant readers provides streamlined and smart installation
