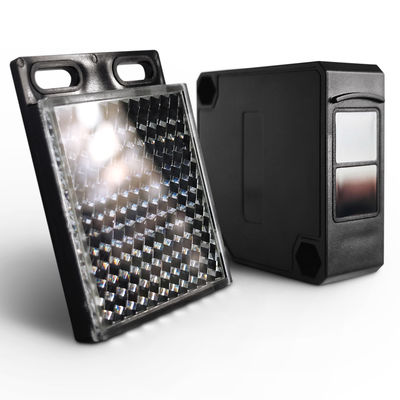

7 m Detection Range Reflective IR Sensor with Relay Output Waterproof & Ideal for Industrial Use

Brand Name: JUTAI

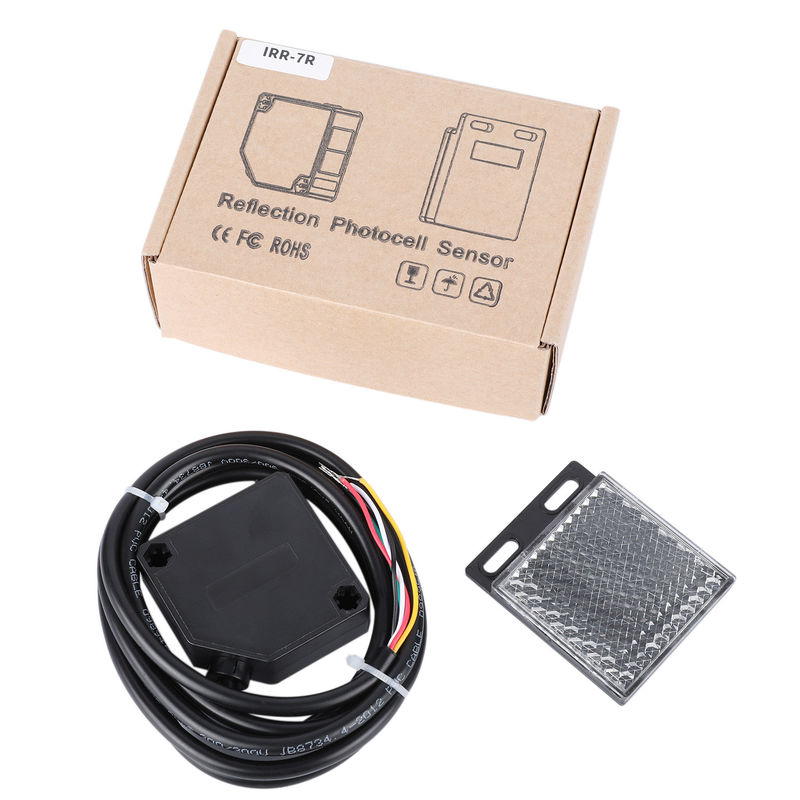

Model Number: IRR-7R
MOQ: Support 1-10 pcs for sample
Price: Negotiation
Packaging Details: 50 pcs / 1 cartoon
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Sensing Distance:
7 M
Output Type:
Relay Output
Sensing Object:
Opaque Object,min Y75mm
Response Time:
≤3 Ms
Sroduct Sizege:
DC12-24V(10-30V DC)/ripple(p-p):10% Max
Name:
Infrared Reflective Sensor
Sensing Mode:
Retro-reflective
Standard Target:

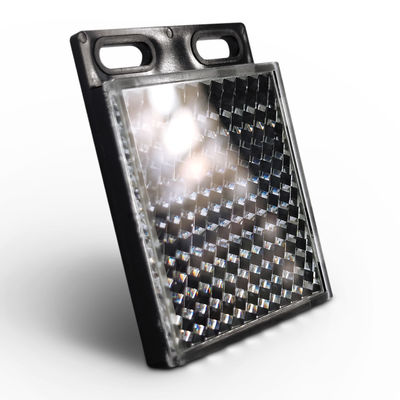

Reflector
Output Status:
Relay NO & NC
Consumption:
≤20 MA
Load Current:
200 MA
Voltage Drop(V,):
≤1.8V(200mA)
Load Capacity:
30VDC @ 1A / 125VAC @ 0.5A
Supply Ability:
5000 pcs per month
Highlight:

Industrial Use Reflective IR Sensor

,

7 m Reflective IR Sensor

,

Waterproof Reflective IR Sensor

Product Description

7 m Detection Range Reflective IR Sensor with Relay Output | Waterproof & Ideal for Industrial Use

The 7m Detection Range Reflective IR Sensor with Relay Output is designed to provide exceptional performance in industrial environments, offering a reliable and precise solution for automated systems. Whether used in warehouses, factories, or heavy-duty equipment, this sensor excels at detecting objects at a distance of up to 7 meters, ensuring efficient operation and improved safety across a variety of industrial applications.

Its reflective infrared technology allows for accurate, non-contact detection, making it ideal for situations where direct contact with the sensor is impractical or undesirable. This feature is particularly beneficial in busy industrial settings, where machinery, vehicles, or products are constantly in motion. By detecting objects from a distance, the sensor helps prevent accidents and ensures that automated systems function smoothly, without interruption.

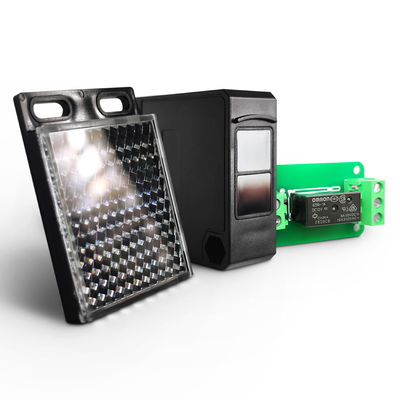

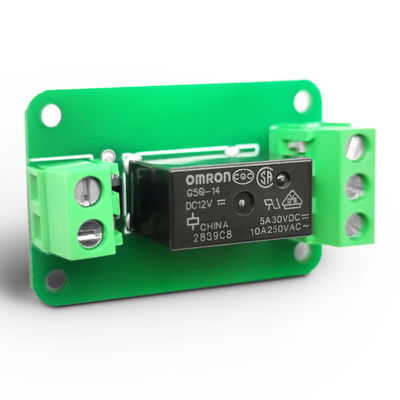

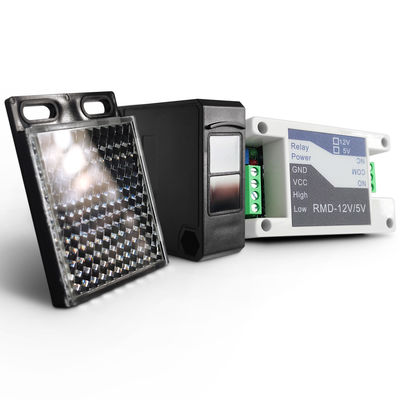

The Reflective IR Sensor is equipped with a relay output, offering versatile integration with existing control systems. Whether you need a Normally Open (NO) or Normally Closed (NC) output, this sensor provides flexible options to suit different industrial automation needs. The relay output ensures seamless communication with machinery, enabling reliable and efficient operations.

Built to withstand harsh industrial conditions, this sensor is waterproof and durable, ensuring reliable performance even in challenging environments. It’s designed to resist the dust, moisture, and fluctuating temperatures commonly found in industrial settings. This robustness ensures that the sensor will continue to perform optimally, reducing maintenance needs and improving the overall reliability of your automated systems.

Incorporating the 7m Detection Range Reflective IR Sensor into your industrial applications helps streamline operations, enhance safety, and improve efficiency, making it an indispensable tool for any modern industrial facility.



retro photocell



Feature

  • 1. Long Sensing Distance
    • AThrough-beam Sensor, for example, can detect objects morethan 7 m away.This is impossible with magnetic, ultrasonic.or other sensing methods.
  • 2. Virtually No Sensing ObjectRestrictions
    • These Sensors operate on the principle that an objectinterrupts or reflects light, so they are not limited like ProximitySensors to detecting metal objects. This means they can beused to detect virtually any object, including glass, plastic,wood.and liquid.
  • 3. Fast Response Time
    • The response time is extremely fast because light travels athigh speed and the Sensor performs no mechanical operationbecause all circuits are comprised of electronic components.
  • 4. High Resolution
    • The incredibly high resolution achieved with these Sensorsderives from advanced design technologies that yielded avery small spot beam and a unique optical system forreceivinglight.These developments enable detecting verysmall objects, as well as precise position detection.
  • 5. Non-contact Sensing
    • There is little chance of damaging sensing objects or Sensorsbecause obiects can be detected without physical contact.This ensures years of Sensor service.
  • 6. Easy Adjustment
    • Positioning the beam on an object is simple with models thatemit visible light because the beam is visible.



Applications

application

Product size

products size

Infrared sensor

Product series

IR-20 IPS-20R IS-30R WIS-30 IRR-7R

Infrared Photocell Sensor

12-24 VAC/DC

Detection distance:20 M

Infrared sensor

12-24 VAC/DC

Detection distance:20 M

Infrared Sensor

12-24 VAC/DC

Detection distance:30 M

INFRARED SENSORS

12-24VAC/DC

Detection distance:30 M

Infrared sensors

10-30 VAC/DC

Detection distance:7 M
SC-10 BP-70 PB3-4L15 PB10-4L15 PB10-8L15

Infrared photocell12-30 VAC/DC

Single Beam / Double Beam

Detection distance: 10

infrared photocell

TX-Batteries RX-12-24 VAC/DC

30.7 cm Single Beam

Detection distance:20 M

infrared sensors

9-30 VAC/DC

30.7 cm 4 Infrared Beam

Detection distance:15 M

infrared

DC 12-24 V

1 Meter 4 Infrared Beam

Detection distance:15 M

infrared

DC 12-24V

1 Meter 8 Infrared Beam

Detection distance:15 M
PB20-8L15 PB20-16L15 FC20-28L20 FC20-32L20 CB15-8L8

infrared

DC 12-24V

2 Meter 8 Infrared Beam

Detection distance:15 M

infrared

12-24 VAC/DC

2 Meter 16 Infrared Beam

Detection distance:15 M

INFRARED

12-24 VAC/DC

2 Meter 28 Infrared Beam

Detection distance:15 M

infrared

12-24 VAC/DC

2 Meter 32 Infrared Beam

Detection distance:15 M

Photocell beam

DC 12-24

1.5 Meter 8 Infrared Beam

Detection distance: 8
