Dual Channel Loop Detector - Independent Control & Anti-Crosstalk Tech for Smart Traffic Systems & Reliability

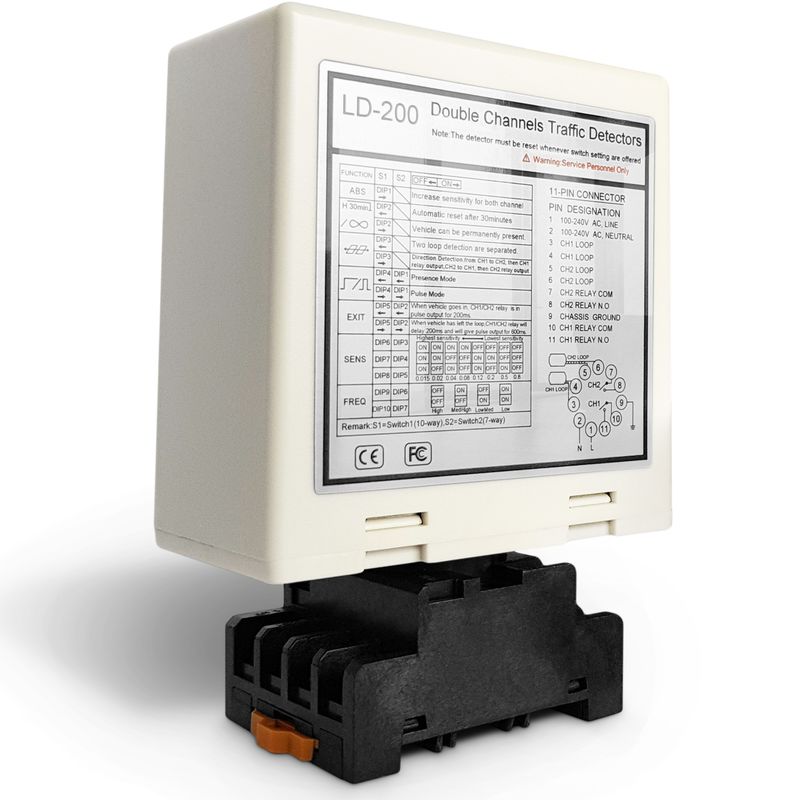

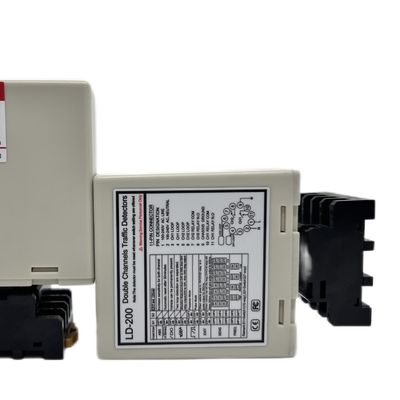

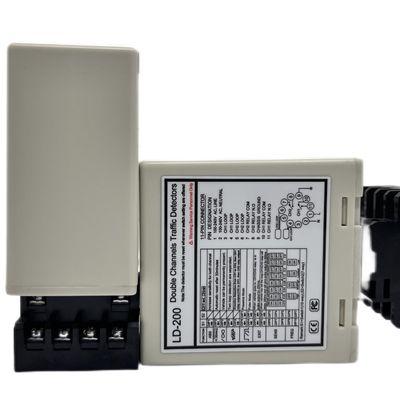

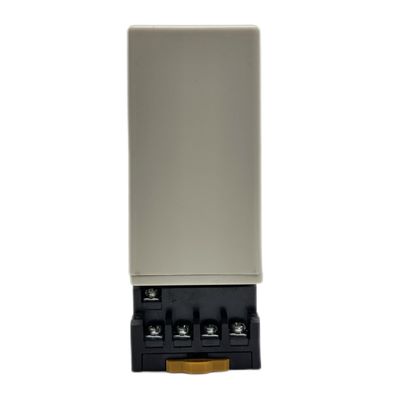

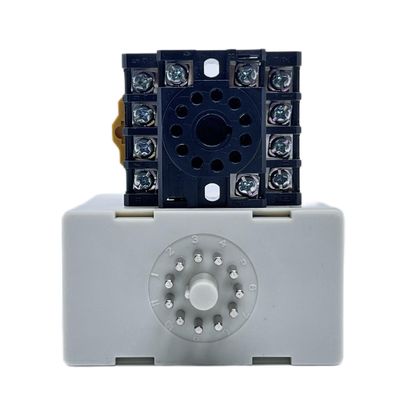

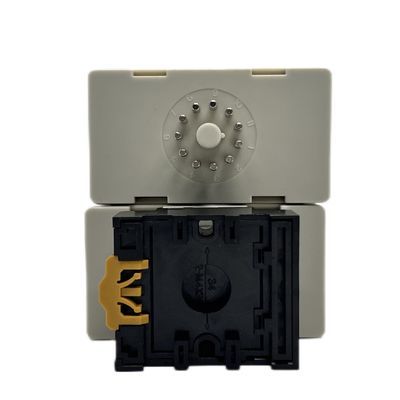

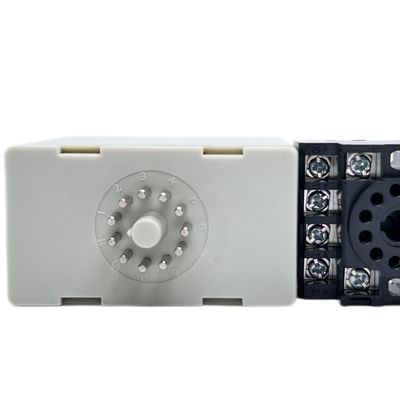

The JUTAI Dual Channel Loop Detector (Models LD-200/LD-202) is engineered to revolutionize traffic management with its independent dual-channel control and advanced anti-crosstalk technology, delivering unparalleled reliability for smart city infrastructure. Each channel operates autonomously, enabling simultaneous functions such as vehicle counting (Channel 1) and emergency lane prioritization (Channel 2), all while maintaining seamless coordination. The 40–80KHz frequency tuning dynamically isolates signals to eliminate cross-talk from adjacent detectors, power lines, or 5G networks, ensuring >99.9% accuracy in high-density installations like multi-lane highways or urban intersections. Built for resilience, the IP67-rated aluminum housing protects against dust, water ingress, and extreme temperatures (-40°C to +70°C), making it ideal for round-the-clock operation in harsh environments.

In smart traffic systems, the detector’s independent channels empower adaptive signal control. For instance, Channel 1 can optimize green light duration based on real-time vehicle queues, while Channel 2 monitors pedestrian crossings to prevent conflicts—reducing congestion by up to 25% in pilot projects. The anti-crosstalk technology ensures interference-free performance even in electrically noisy zones like EV charging corridors or industrial parks. With 16-level sensitivity adjustment (0-F) across a 20–2000μH inductance range, it precisely detects vehicles from motorcycles to freight trucks, minimizing false triggers from debris or small animals. A recent deployment in a European smart city reduced traffic violations by 30% through synchronized lane management.

JUTAI prioritizes reliability and integration ease. The universal 12-24V DC/100-240V AC input supports solar and grid power, while SPDT relay outputs interface effortlessly with traffic controllers and IoT platforms. Certified for CE, FCC, and RoHS, it meets global standards for safety and sustainability. Backed by a 5-year warranty and plug-and-play DIN-rail installation, the JUTAI Dual Channel Detector is the cornerstone of intelligent, future-ready traffic networks—where precision, durability, and innovation drive seamless mobility.

Feature

• 1. 15-2000 μh detection Range
  • The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
  • The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

• 2. Compact Side
  • The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.

• 3. Diagnostic Capabilities & LED Indication
  • Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems and shows through the LED state, ensuring optimal performance and reducing downtime.

• 4. Selectable Presence Time
  • The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.

• 5. Automatic Sensitivity Boost (ASB)
  • This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.

• 6. Automatic Environment Drifting Compensation
  • Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.

• 7. 17 Dip Switch Setting
  • The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.

• 8. Dual Channels work Cooperatively or Independently
  • Dual channel loop detector can be used as two single channel versions, Supports two independent detection channels.
  • Also allowing for the simultaneous monitoring of multiple loops, loop detector has the ability to recognize direction in single-channel applications. enhancing the flexibility and accuracy of vehicle detection.

• 9. Anti-crosstalk interference.
  • Through the dip Switch, the frequency of the loop detector can be adjusted to prevent crosstalk interference caused by the installation of two loop coils too close.





---



Connections







Modes Of Operation

The LD-200 series detector may be configured for any one of the following modes:

Presence Mode	Pulse Mode
AB Logic Presence Mode(Barrier Operation)	AB Logic Pulse Mode(Counting Logic)



Indicates And Switch

❀Power Led: RED Power LED Indicates “Power ON”

• CH1 Detecting Led:Continuously On: Indicates vehicle detection.

• Blinking Slowly: Indicates loop is short circuit or the number of twists after the loop is not enough.

• Blinking Fast: Indicates loop is open circuit or too many twists after the loop.

• CH2 Detecting Led:Continuously On: Indicates vehicle detection.

• Blinking Slowly: Indicates loop is short circuit or the number of twists after the loop is not enough.

• Blinking Fast: Indicates loop is open circuit or too many twists after the loop.



❀Sensitivity Selection

• Sensitivity and frequency of the loop can be adjusted by 7-way dip switch and 10-way dip switch setting.

• User can select 8 different setting by changing the setting of the dip-switch to different modes as in the dip-switch setting tables below. Dip switch 6, 7 and 8 for CH1 sensitivity selection with 0.8 being the least sensitive and 0.015 being the most sensitive.

• Dip switch 3, 4 and 5 for CH2 sensitivity selection with 0.8 being the least sensitive and 0.015 being the most sensitive.







❀Switch1=S1:Channel 1 Loop Function Selection (10 Way Dip Switch)

• (Switch 1)DIP1 & DIP2 Special Sensitivity Increase For Both Trailer (Both Channels)











• (Switch1=S1)D3,D4,D5 and(Switch2=S2)D1,D2 Setting Special Functions(Mode1,2,3 Direction Detection. Mode4,5,6 Normal mode, two loop detection are separated.)







• (Switch1=S1)D6 & D7 & D8 and (Switch2=S2)D3 & D4 & D5 Setting CH1 and CH2 Sensitivity Selection. (Eight Levels Choices)







• (Switch1=S1)D9 & D10 and (Switch2=S2)D6,D7 Setting Frequency (20 K to 100 KHz).

Reset Button: Please note: The LD-200 must be reset every time a setting change is made to the Dip switches.







Loop Installation

The loops are sealed using a “quick-set” black epoxy compound or hot bitumen mastic to blend with the roadway surface.



When installation, please keep the product plug and socket in the vertical direction







Trouble Shooting







---



Product Series

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
