24 G Barrier Radar Detector IP67 Car Detect Only For Boom Barrier Safety

24 G Barrier Radar Detector IP67 Car Detect Only For Boom Barrier Safety

Brand Name: JUTAI
Model Number: RD24-6M
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Operating Frequency:
24.150GHz
Input Voltage:
10-24 VDC
Housing Material:
ABS+PC
Detection Range:
1-6m
IP Rate:
IP 67
Operation Temp:
-40ºC~+70ºC
Relay Control Time:
1-6s Adjustable
Relay Contact:
1 A @24 V DC/AC
Response Time:
20-90 Ms
Horizontal Detection Angle:
0-28 °
Vertical Detection Angle:
0-60 °
Product Size:
98*20.5*118 Mm
Package Size:
143*106*55 Mm
Net Weight:
150 G
Gross Weight:
200 G
HS Code:
8526101090
Name:
Barrier Radar Detector
Supply Ability:
5000 Pcs per Month
Highlight:

24 G Barrier Radar Detector

,

Barrier Radar Detector IP67

,

Car Detect Barrier Radar Detector

Product Description

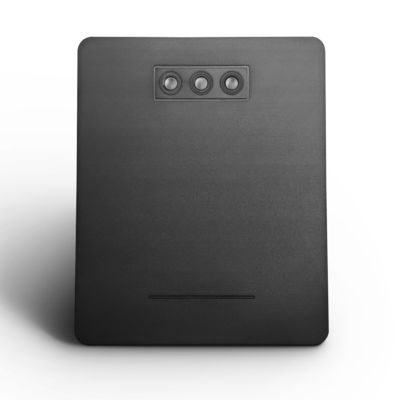

24 G Barrier Radar Detector for Boom Barrier Safety



   JUTAI Barrier Radar RD24-6 is the ideal choice for modern intelligent traffic management, designed to replace traditional ground loop sensors. Utilizing advanced microwave radar technology, this system operates reliably under various environmental conditions, unaffected by rain, snow, or dust. The radar system provides high-precision object detection and distance measurement, ensuring accuracy and dependability in barrier operation. It offers easy installation with no need for ground excavation, saving time and costs. With real-time data feedback, it significantly enhances response speed, optimizing operational efficiency. Additionally, the system's durability and stability minimize maintenance requirements, making it an excellent choice for those seeking high performance and low maintenance costs. Whether for commercial or industrial applications, our Barrier Radar System delivers outstanding performance and reliable service.



                                                     Barrier sensor




Key Feature



  • 1. Adjustable detection distance from 1-6 m
    • The RD24-6 can be operated by setting the detection distance via a pushbutton that comes with the radar, in combination with the three indicator lights on the radar. We can set the detection distance of the radar according to the length of the barrier arm.
  • 2. Pedestrian and vehicle distinction
    • RD24-6M radar detector in the range of 1-6m can achieve the function of only detecting vehicles, but also vehicles and pedestrians can be detected, two modes for your choice. So that the radar can adapt to different scenes.
  • 3. Strong environmental adaptability
    • The radar system is not affected by rain, snow, dust and other inclement weather, which ensures all-weather stable operation.
  • 4. Easy installation
    • No need to dig trench or bury coil on the ground, the installation process is faster and easier, reducing the construction difficulty and cost.
  • 5. High-precision detection
    • Advanced radar technology can provide high-precision object detection and distance measurement, ensuring the accuracy of the gate operation.
  • 6. Durability and Stability
    • Radar systems usually have high durability and stability, reducing maintenance needs and costs.
  • 7. Strong anti-interference capability
    • Radar systems are more resistant to interference than ground sensing coils and can maintain good performance in complex environments.

                                                    Barrier Radar




Application


  • 1. Car park management:
    • Entry and exit vehicle identification and control to prevent unauthorised vehicle entry.
  • 2. Commercial and office buildings:
    • Provide safe and reliable vehicle access management to ensure building security.
    • Automated operation, reducing manual intervention and improving work efficiency.
  • 3. Industrial Parks:
    • Accurate detection and management of heavy vehicles to improve logistics efficiency.
    • Real-time monitoring to improve security and management in the park.
  • 4. Residential neighbourhoods:
    • Automatic identification of residents and visitor vehicles to improve community security.
    • Convenient management of visitor vehicles to provide a better service experience.
  • 5. Transport hubs:
    • Used for vehicle entry and exit management in railway stations, airports, bus stations and other places.
    • Improve the operational efficiency and safety of transport hubs.


                                             barrier radar detector




Certification

                                                   barrier radar certification


Company Profile
JUTAI, a premier manufacturer of Motion Sensor and Photoelectric Sensors, excels in R&D, production, sales, and distribution. Our dedication to innovation and quality drives us to offer superior solutions to our customers. We aim to be your reliable production partner, helping build and enhance your unique brand identity.
