Gate Boom Barrier
>

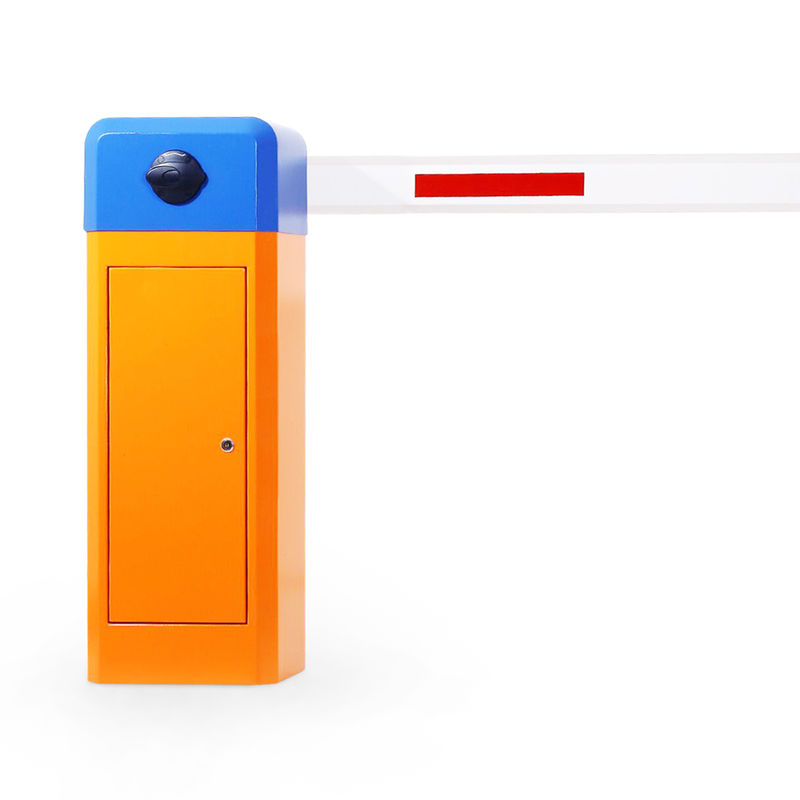

220V 110V AC Gate Boom Barrier For Entry / Exit Management

220V 110V AC Gate Boom Barrier For Entry / Exit Management

Brand Name: JUTAI
Model Number: BR-110
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
Name:
Gate Boom Barrier
Voltage:
220V / 110V AC
Motor Type:
1.5s, 3s, 6s
Power:
100W/120W
Relative Humidity:
<90%
Degree Of Distortion:
Semi-Rigid Barrier
Boom Length:
1-6 M
Product Size:
330*285*955 Mm
Package Size:
500*390*1035 Mm
Material:
Steel
Net Weight:
45 Kg
Gross Weight:
46 Kg
Pole Center Height:
934
Frequency:
50Hz / 60Hz
HS Code:
8530800000
Operation Temp:
-45ºC To 75ºC
Supply Ability:
5 days (1 - 1 Pieces) 7 days (2 - 10 Pieces) 10 days (11 - 50 Pieces) To be negotiated ( > 50 Pieces)
Highlight:

110V AC Gate Boom Barrier

,

Entry Management Gate Boom Barrier

,

Exit Management Gate Boom Barrier

Product Description

220V 110 V AC Barrier Gate Boom Barrier for Entry and Exit Management



    The boom barrier is the most common type of vehicle blocking device. It is an entrance and exit management device specially used to manage the driving passage of motor vehicles. It is widely used in highway toll stations and parking lot management systems to achieve the purpose of managing vehicle access.
   Barrier gate is usually composed of a reduction gear box, a motor, (or a hydraulic) transmission mechanism, a balancing device, a chassis, a barrier arm., etc. The electric gate can be independently realized by a wireless remote control, or can be managed through a parking lot RFID system. The system is automatically managed and is often used in conjunction with the sense of the ground loop detectors (vehicle detectors).


                                                Barrier Gate Boom Barrier






JUTAI Barrier Gate Advantage



1. Gate Motor

JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection.



                                         boom barrier



2. Control board

JUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.



                                      boom barrier


3. High quality spring

In addition to controlling the main board and the motor, the most important part is the spring. The tension and the relaxation of the spring are used to achieve the stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.



                                            boom gate

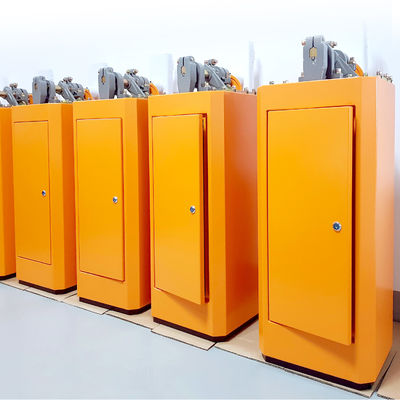

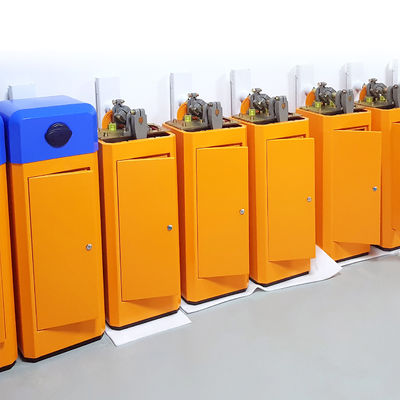

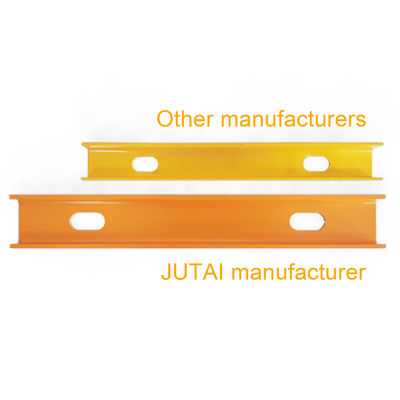

4. Process materials

The thickness of the sheet metal is 2.0mm. The cabinet is designed with waterproof structure and the surface is treated with phosphating process. Huacai spraying, high temperature baking and car top coating make the chassis in outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have problem of color fading. Compared with other company’s 1.5mm cabinets, it is more durable and not easy to fade color.



                                         boom barrier



5. Bottom anti-dip strip

In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.



                                          boom barrier



6. Multi-gate control can be built-in 485 protocol module

JUTAI is equipped with RS485 interface and English software, which can realize simultaneous control of 16 units boom gates by the software



                                         barrier



7. Anti-collision boom

The existing road barrier gate are prone to bending when facing the accidental ram of the vehicle, and even the boom arm is broken, causing great damage to the vehicle and the gate. JUTAI automatic boom gates are equipped with anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.



                              Barrier gate



8. Double protection against damage

JUTAI also provides infrared photocell beam sensors and vehicle loop detectors for anti-smashing vehicles.



                                        loop detector



9. Environmental adaptability

Special antifreeze oil, the motor can still work normally at -40 degrees. When the temperature reaches +75 degrees or more, JUTAI gate Motor has thermal protection function and can still work normally.






BR-110 BR-110F BR-110BY BR-110L BR-110H

barrier gateStraight arm version

Lifting time: 3s 6s

barrier gateHigh speed version

Lifting time 1.5s

barrier with light beltLED ligtht version

Lifting time: 3s 6s

folding arm90° Folding arm version

Lifting time: 3s 6s

180 degree arm

180° Folding arm version

Lifting time: 3s 6s

BR-121 BRDC-110 BDC-1 BRC-433R BRC-443T

fence arm

Fence arm version

Lifting time: 6s

DC type

DC power economy version

Lifting time: 1.2-5s

controller controller 2 remote control
