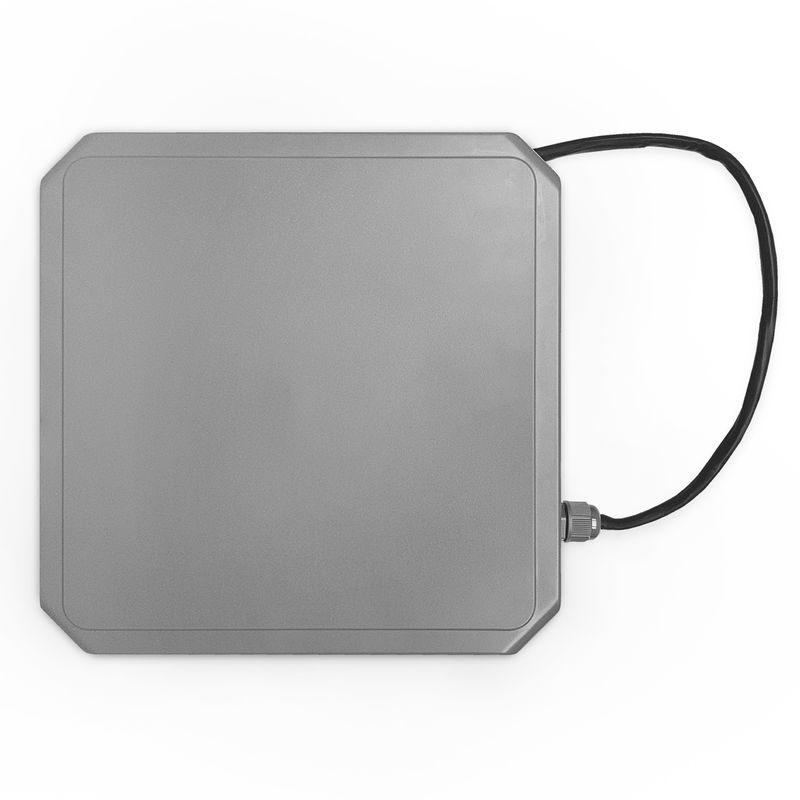

UHF Long Range Reader
>
RFID UHF Long Range Reader 30dbm 9m Reading Distance Security Solution

RFID UHF Long Range Reader 30dbm 9m Reading Distance Security Solution

Brand Name: JUTAI
Model Number: PUHF-9
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
China
Certification:
CE, FCC
Document:
Name:
UHF Long Range Reader
Power Supply:
DC9-12V,3A
Frequency Range:
860-868MHz、902~928MHz
Protocol:
ISO 18000-6B / 6C (EPC GEN2)
Antenna:
Circular Polarization / Linear Polarization Directional
Max, Output Power:
30dbm (Adjustable)
Reading Distance:
1-9m (Depending On The Antenna)
Plug:
Two-pin Plug / Three-pin Plug
Output Interface:
Wiegand 26 / 34 / RS232 / RS485
Working Temperature:
-25°C~+70°C
Installation:
U-shaped Pole
Waterproof:
IP65
Frequency Hopping Mode:
Fixed Frequency Band
Product Size:
255mm*255mm*42mm
Package Size:
405mm * 305mm * 105mm
Net Weight:
1230 G
Gross Weight:
2.5 Kg
Color:
Grey / White
HS Code:
8529101000
Service:
OEM
Power:
< 0.5 W
RF Power:
0-30dBm Adjustable
Supply Ability:
5000 Pcs per Month
Highlight:

RFID UHF Long Range Reader

,

UHF Long Range Reader 30dbm

,

Long Range UHF RFID Reader

Product Description

RFID UHF Long Range Reader 30dbm 9m Reading Distance Security Solution

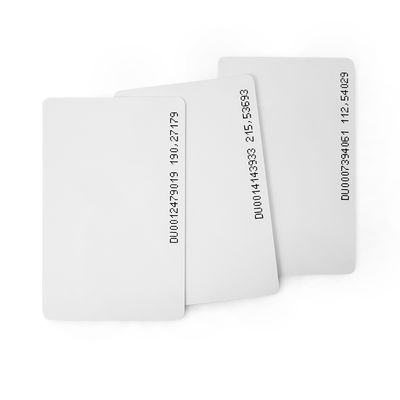

JUTAI's Long reading Range card reader UHF has two frequencies of 860-868Mhz and 902-928Mhz. It is commonly used in parking lot vehicle access management systems. According to the on-site environment, the UHF reading range can reach 7-10 meters, except for induction passive cards. In addition, it can be used with various UHF stickers/tags..

The UHF passive tag can be attached to the outside of the car, and it will automatically work with the UHF reader when it passes, avoiding the customer being wet by rain, which greatly reduces the risk of car robbery at the entrance is an ideal solution for applications such as parking lot access management, personnel management, and any tracking management system.



                                         UHF Long Range Reader






Key Feature



  • 1. Long range reading
    • The high quality UHF Reader has a powerful signal output capability to accurately read label data over longer distances, improving operational efficiency.
  • 2. Antenna independence
    • Most of the card readers on the market are integrated with the antenna, but this greatly increases the cost of maintenance and the difficulty of repair. JUTAI was dared to separate the UHF antenna and its control board from the card reader itself, greatly reducing repair cost and power dissipation.

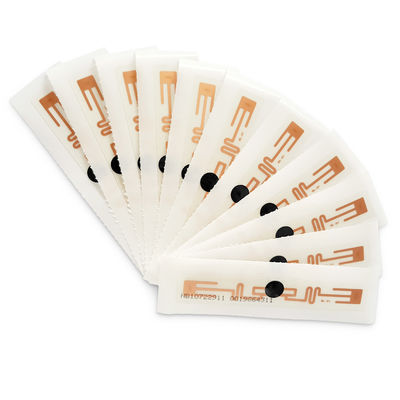

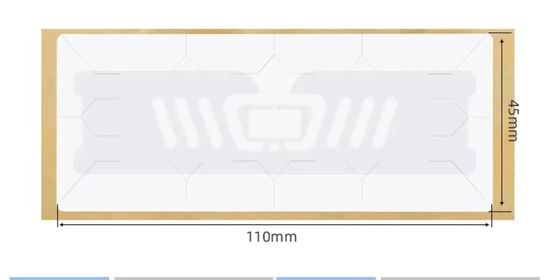

  • 3. It can perfectly work with UHF sticker/tag
    • It is more convenient to work with a serial of UHF stickers/tag. A ideal solution for hands-free vehicle access control system.
  • 4. UHF Frequency Setting
    • JUTAI's UHF passive readers can be set to different frequencies depending on the actual situation to meet the different needs of customers in various countries.
  • 5. Low radiation value
    • After rigorous testing, the radiation value of JUTAI's UHF reader is much lower than international standards, and can be used safely for human body.
  • 6. Block
    • Compared with the traditional plastic cover, the hard shell cover has the function of convenient maintenance and better protection of the product, no waste and no cost increase
  • 7. Loop detector function ( optional )
    • The vehicle can be managed by the pressure sensing function to reduce the malfunction and open the door. The JUTAI UHF long range card reader features a grounding capability for use with our vehicle loop detectors. For some special applications, you can connect to the ground loop detector. When the vehicle is pressed to the ground loop coil, the card can start working with the card reader, which makes the whole system highly reliable and safe.
  • 8. High-speed reading
    • Can quickly read multiple labels, reduce waiting time, improve work efficiency, especially suitable for high-traffic environment.
  • 9. Easy integration
    • Compatible with multiple protocols and systems to seamlessly integrate with existing infrastructure and reduce deployment costs.
  • 10. Multifunctional application
    • suitable for various application scenarios, including access control, logistics management, asset tracking and inventory management, etc., with a wide range of application prospects.



                                        long range reader

                                        UHF rfid reader






Wiring Diagram



Red

+9VDC

Pink

RS485-A

Black

GND

Yellow Green

RS485-B

Black

GND

Gray

Shortcut GND for trigger reader

Blue

WG-D1

Brown

Rs232 TXD

Green

WG D0

White

Rs232 RXD

Yellow

GND
