Low Frequency Reader 125K
>
130cm Reading Distance Low Frequency Reader 125K For Access Control Reader

130cm Reading Distance Low Frequency Reader 125K For Access Control Reader

Brand Name: JUTAI
Model Number: GP99
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Name:
Low Frequency Reader 125K
Power Supply Input Voltage:
AC 120V / 60Hz Or 230V/50Hz
Output Voltage:
DC 12V / 1A
IP Level:
IP65
Reading Range:
130cm
Housing Material:
ABS+PC, UV Protection
Audio / Visua Indication:
Bright Blue LED And Buzzer
Interfaces:
Wiegand 26 Or 34 Bits, RS232 Or RS485
RFID Cards Accepted:
125kHz, 64 Bits, Manchester Encoding
Product Size:
420*320*47 Mm
Package Size:
52*48*13 CM
Net Weight:
1934 G
Gross Weight:
5 Kg
Working Current:
≤450mA
Relative Humidity:
≤90%
Baud Rate:
9600, N, 8, 1
Card Type:
125 K More Copper Wire Type
Color:
Black
HS Code:
847160900
Supply Ability:
5000 Pcs per Month
Highlight:

130cm Low Frequency Reader

,

Access Control Low Frequency Reader

Product Description

130 mm reading distance Low Frequency Reader 125K For Access Control Reader

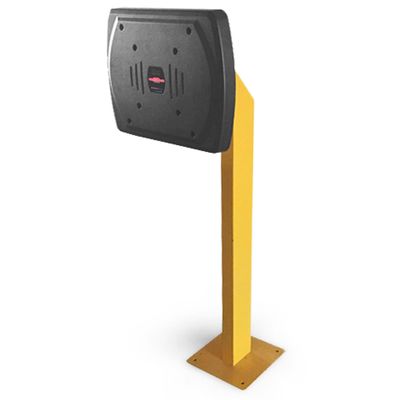

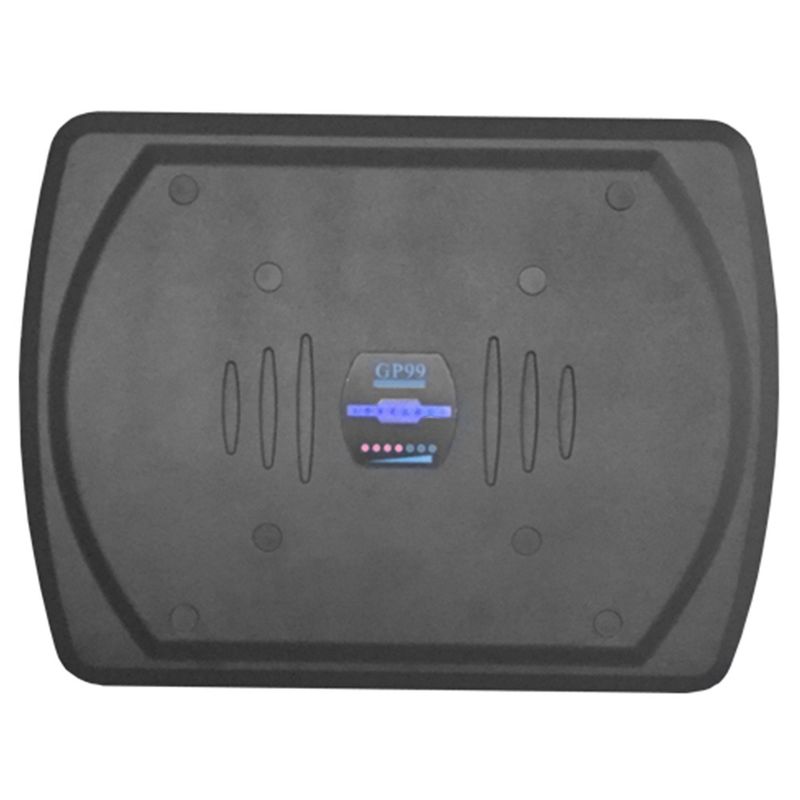

The GP99 is a high-quality 125kHz RFID long-range reader with a compact design and extended reading distance, suitable for various long-range reading applications. It can penetrate solar film, allowing for card reading from inside a vehicle without the need to roll down windows. The GP99 delivers stable and reliable performance, making it ideal for access control, parking systems, personal identification, and other applications. With an IP65 waterproof rating, it operates seamlessly in rainy conditions, and its auto-tuning function compensates for metal and interference to maintain optimal performance. The device also features firmware upgradability for easy updates.



                                        access control reader






Features

  • 1. Solar Film Penetration (V-Kool40)
    • Capable of reading RFID cards inside vehicles with solar film applied, eliminating the need to roll down windows.
  • 2. Auto-Tuning Function
    • Adjusts automatically to compensate for metal and interference, ensuring stable performance in various environments.
  • 3. Extended Reading Range
    • Reading distance ranges from 90 cm to 130 cm, depending on on-site interference.
  • 4. Bright LED Indicators
    • Equipped with LED display bars and a buzzer for clear reading status indications.
  • 5. Firmware Upgradable
    • Allows field updates to the device’s firmware to maintain optimal performance.
  • 6. IP-65 Waterproof Housing
    • Provides protection against water ingress, ensuring reliable operation in rainy conditions without additional accessories.

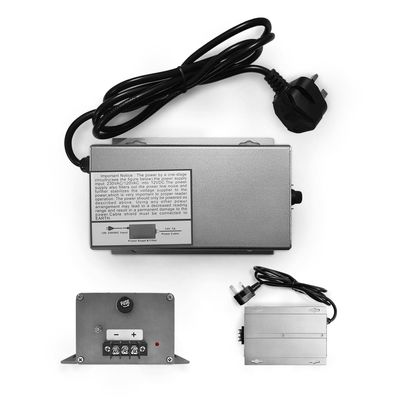

  • 7. High-Quality Power Supply
    • Includes noise filtering to provide stable current and reduce external interference.
  • 8. Loop Detection Function (Optional):
    • Can be integrated with vehicle loop detectors to enhance system reliability and stability.
  • Anti-Rereading Function
    • Prevents the same card from being read multiple times within a short period, addressing interference issues between readers.

                                       rfid reader

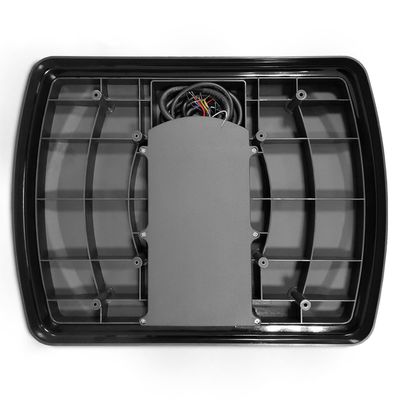

Wiring



Color Funtion

Red

12V(Connect to power supply)

Black

GND(Connect to power supply)

White-Green

Wiegand D0

Yellow

Wiegand D1

Blue

RS232-RXD

Gray

RS232-TXD

White-red

Read ID interval-A

Orange

Read ID interval-B

White

RS485-A

Brown

RS485-B

Purple

Reserve

Dark blue

Loop Detector(Connect to GND)

Red

Relay COM

White-Black

Relay N.O

Pink

Relay N.C

Black

GND




Applications

  • Access Control
    • Used in commercial buildings and residential areas to manage and secure entry and exit points.
  • Parking Systems
    • Manages vehicle entry and exit at parking facilities, providing convenient access control.
  • Through-Wall Reading Applications
    • Reads cards without direct contact, suitable for specific environments.
  • Personal Identification
    • Ideal for scenarios requiring long-distance identity verification, such as large conferences or events.
  • Any Long-Range Reading Application
    • Suitable for various long-distance reading needs, such as warehouse management.
  • Hand-Free Applications
    • Enables convenient access without physically handling the card, enhancing user experience.



                                         Rfid reader
