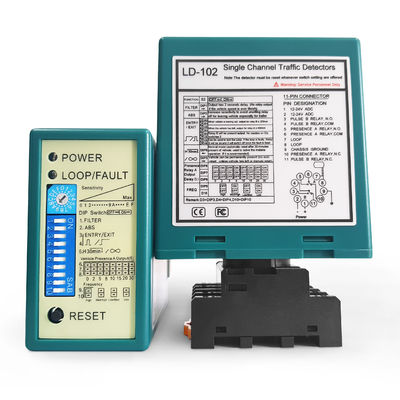

Fault Diagnosis Environment Drifting Compensation Automatic Gate Loop Detector

Brand Name:	JUTAI
Model Number:	LD-102
MOQ:	Support 1-10 Pcs for Sample
Price:	Negotiation
Packaging Details:	50 Pcs 1 Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE FCC

Document:

LD-100 LD-102.pdf

Name:

Automatic Gate Loop Detector

Service Temperature:

-40 To +70 ℃ (-111°F To +158°F)

Voltage Rating:

12-24 VADC

Self Turning Range:

15-2000uh

Warranty:

2 Year

Application:

Toll Station &Atomatic Gate Or Door Used

Color:

Green

HS Code:

9033000090

Humidity:

95% Non-condensing

Product Size:

76*42*91.5 Mm

Sensitivity:

Adjustable In 12 Increments From 0.01% To 0.2%

Package Size:

136*86*52 Mm

Net Weight:

195 G

Gross Weight:

300 G

Response Times:

10-90 MS

Relay Output:

Presence Relay / Fault Relay

Operating Temperature:

-20°C To +65°C

Supply Ability:

5000 Pcs per Month

Highlight:

Fault Diagnosis Automatic Gate Loop Detector

,

Compensation Automatic Gate Loop Detector

Product Description

Fault Diagnosis Environment Drifting Compensation Automatic Gate Vehicle Loop Detector

The Automatic Gate Vehicle Loop Detector is a highly sophisticated device designed to optimize vehicle detection and access control for automated gates. Featuring advanced fault diagnosis capabilities, this detector continuously monitors its operational status, promptly identifying any malfunctions. This proactive approach to maintenance ensures minimal downtime, which is crucial in high-traffic areas such as parking facilities, toll booths, and secure entrances. Additionally, the environment drifting compensation technology allows the detector to adjust to varying external conditions, such as temperature changes and electromagnetic interference, maintaining consistent performance and accuracy.

This loop detector excels in its application across various settings, providing reliable and efficient vehicle access management. Its ability to accurately differentiate between vehicles and other objects minimizes false activations, ensuring that only authorized vehicles are granted access. This feature enhances security and streamlines traffic flow, reducing congestion at entry and exit points. Designed for both indoor and outdoor use, the robust construction of the detector ensures durability against harsh weather conditions, making it a reliable choice for any environment. By integrating the Automatic Gate Vehicle Loop Detector into existing access control systems, organizations can significantly enhance operational efficiency, improve user experience, and maintain a secure environment for all vehicles, making it an essential component of modern vehicle management solutions.

loop detector

Feature

1. 15-2000 μh detection Range
- The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
- The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

2. Compact Side
- The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
3. Diagnostic Capabilities
- Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
4. Selectable Presence Time
- The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
5. Loop Presence Time
- Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
6. Two Separate Output Relays
- Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
- Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
7. Automatic Sensitivity Boost (ASB)
- This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
8. Automatic Environment Drifting Compensation
- Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.
9. 10 Dip Switch
- The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.

Loop sensor

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

1. Traffic Signal Control
- Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
- Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
2. Parking Management Systems
- Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
- Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
3. Toll Booth Systems
- Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
- Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
4. Security and Access Control
- Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
- Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
5. Logistics and Warehousing Management
- Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
- Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
6. Public Transport Management
- Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
- Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
7. Municipal Engineering and Infrastructure
- Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
- Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

loop detector

Certification

Loop detector

Product Series

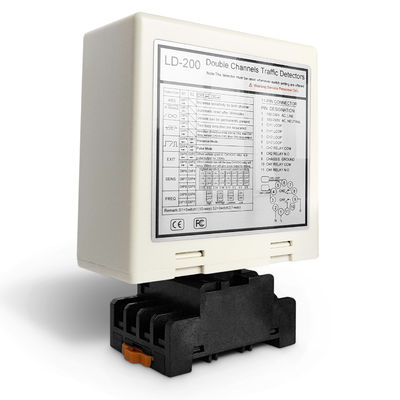

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

loop detector
