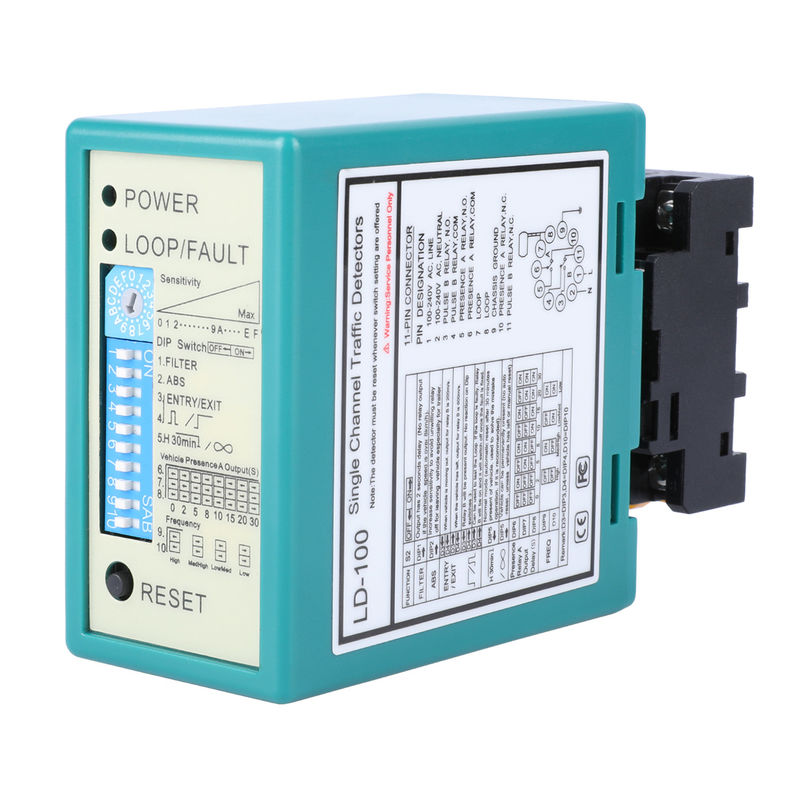

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis

Brand Name:	JUTAI
Model Number:	LD-100
MOQ:	Support 1-10 Pcs for Sample
Price:	Negotiation
Packaging Details:	50 Pcs 1 Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE FCC

Document:

Name:

Inductive Loop Detector

Power Supply:

100-240 VAC 48 To 62Hz

Operation Temp:

-40 To +70 ℃ (-111°F To +158°F)

Self-turning Range:

20-2000uh

Response Times:

10-90 MS

Humidity:

95% Non-condensing

HS Code:

9033000090

Product Size:

76*42*91.5 Mm

Package Size:

136*86*52 Mm

Net Weight:

195 G

Gross Weight:

300 G

Relay Output:

Presence Relay / Fault Relay

Sensitivity:

16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L

Warranty:

2 Year

Color:

Green

Supply Ability:

5000 Pcs per Month

Highlight:

Weighing Systems Inductive Loop Detector

Inductive Loop Detector Fast Response

Fault Diagnosis Inductive Loop Detector

Product Description

Weighing systems Inductive loop detector Fast Response Time Fault Diagnosis

The Weighing Systems Inductive Loop Detector is a cutting-edge solution designed to optimize vehicle weighing applications in various industries. With a fast response time, this detector ensures immediate and accurate detection of vehicles, making it ideal for use in weighbridges, loading docks, and logistics centers. Its advanced inductive sensing technology allows for precise measurement of vehicle weight as they pass over the detection loop, streamlining operations and improving efficiency in weighing processes. This rapid detection capability is essential for maintaining workflow in high-traffic areas, where time is of the essence.

In addition to its quick response, the inductive loop detector features advanced fault diagnosis functions that monitor its performance in real-time. This capability allows operators to quickly identify and address potential issues, minimizing downtime and ensuring continuous operation. The detector's robust design ensures durability even in challenging environments, making it suitable for both indoor and outdoor installations. Its easy integration with existing weighing systems enhances overall functionality without requiring extensive modifications. By utilizing the Weighing Systems Inductive Loop Detector, businesses can improve the accuracy and efficiency of their weighing operations, reduce operational costs, and enhance overall productivity, making it an invaluable asset for any vehicle management and weighing application.

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis 0

Feature

1. 15-2000 μh detection Range
- The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
- The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

2. Compact Side
- The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
3. Diagnostic Capabilities
- Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
4. Selectable Presence Time
- The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
5. Loop Presence Time
- Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
6. Two Separate Output Relays
- Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
- Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
7. Automatic Sensitivity Boost (ASB)
- This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
8. Automatic Environment Drifting Compensation
- Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.
9. 10 Dip Switch
- The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

1. Traffic Signal Control
- Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
- Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
2. Parking Management Systems
- Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
- Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
3. Toll Booth Systems
- Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
- Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
4. Security and Access Control
- Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
- Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
5. Logistics and Warehousing Management
- Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
- Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
6. Public Transport Management
- Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
- Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
7. Municipal Engineering and Infrastructure
- Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
- Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis 2

Certification

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis 3

Product Series

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

Tags:

Products Details

Home > Products >

Vehicle Loop Detector

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis

All Category

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis

Brand Name:	JUTAI
Model Number:	LD-100
MOQ:	Support 1-10 Pcs for Sample
Price:	Negotiation
Packaging Details:	50 Pcs 1 Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Brand Name:

JUTAI

Certification:

CE FCC

Model Number:

LD-100

Document:

LD-100 LD-102.pdf

Name:

Inductive Loop Detector

Power Supply:

100-240 VAC 48 To 62Hz

Operation Temp:

-40 To +70 ℃ (-111°F To +158°F)

Self-turning Range:

20-2000uh

Response Times:

10-90 MS

Humidity:

95% Non-condensing

HS Code:

9033000090

Product Size:

76*42*91.5 Mm

Package Size:

136*86*52 Mm

Net Weight:

195 G

Gross Weight:

300 G

Relay Output:

Presence Relay / Fault Relay

Sensitivity:

16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L

Warranty:

2 Year

Color:

Green

Minimum Order Quantity:

Support 1-10 Pcs for Sample

Price:

Negotiation

Packaging Details:

50 Pcs 1 Carton

Delivery Time:

5-8 working day

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Supply Ability:

5000 Pcs per Month

Highlight:

Weighing Systems Inductive Loop Detector

Inductive Loop Detector Fast Response

Fault Diagnosis Inductive Loop Detector

Product Description

Weighing systems Inductive loop detector Fast Response Time Fault Diagnosis

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis 0

Feature

1. 15-2000 μh detection Range
- The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
- The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

2. Compact Side
- The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
3. Diagnostic Capabilities
- Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
4. Selectable Presence Time
- The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
5. Loop Presence Time
- Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
6. Two Separate Output Relays
- Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
- Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
7. Automatic Sensitivity Boost (ASB)
- This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
8. Automatic Environment Drifting Compensation
- Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.
9. 10 Dip Switch
- The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

1. Traffic Signal Control
- Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
- Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
2. Parking Management Systems
- Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
- Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
3. Toll Booth Systems
- Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
- Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
4. Security and Access Control
- Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
- Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
5. Logistics and Warehousing Management
- Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
- Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
6. Public Transport Management
- Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
- Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
7. Municipal Engineering and Infrastructure
- Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
- Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis 2

Certification

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis 3

Product Series

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

Tags:

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

products details

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis

Weighing Systems Inductive Loop Detector

Inductive Loop Detector Fast Response

Fault Diagnosis Inductive Loop Detector

Weighing systems Inductive loop detector Fast Response Time Fault Diagnosis

Feature

Application

Certification

Product Series

Inductive Loop Detector

Car Loop Detector

Road Loop Detector

Products Details

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

Weighing Systems Inductive Loop Detector Fast Response Time For Fault Diagnosis

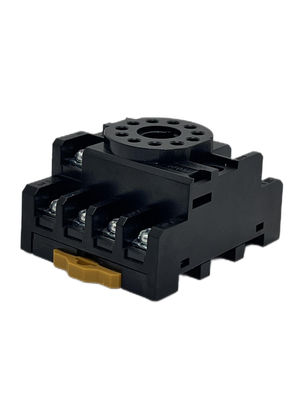

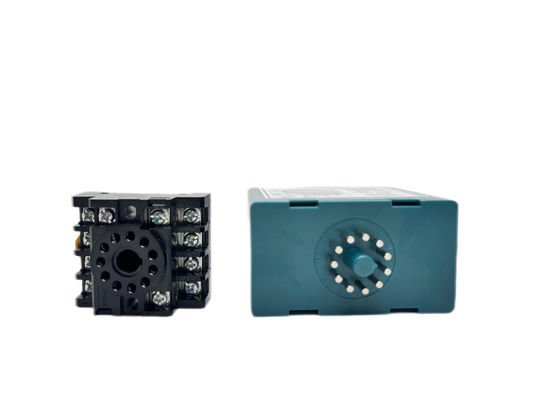

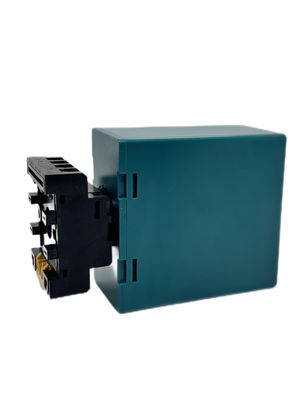

Weighing Systems Inductive Loop Detector

Inductive Loop Detector Fast Response

Fault Diagnosis Inductive Loop Detector

Weighing systems Inductive loop detector Fast Response Time Fault Diagnosis

Feature
