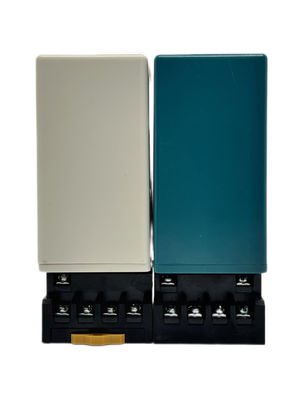

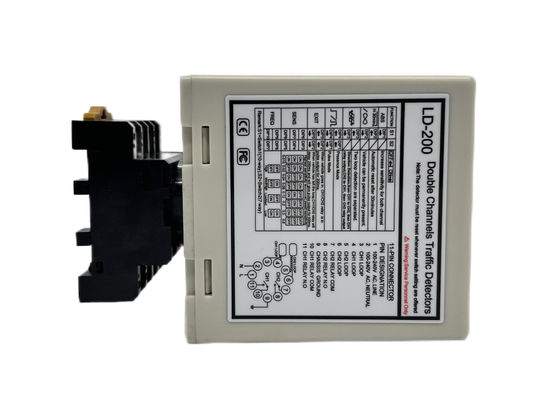

Weigh-In-Motion Systems Used Vehicle Loop Detector Easy Setup Durable Fault Diagnosis

Brand Name:	JUTAI
Model Number:	LD-202
MOQ:	Support 1-10 Pcs for Sample
Price:	Negotiation
Packaging Details:	50 Pcs 1 Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE FCC

Document:

LD-200 LD-202.pdf

Loop Connection:

Twisted Pair Cable

Channel:

Dual Channel

Self-turning Range:

15-2000 Uh

Power Supply:

12-24 VADC

Operation Temp:

-40 To +70 ℃ (-111°F To +158°F)

Color:

White

HS Code:

9033000090

Humidity:

95% Non-condensing

Response Times:

10-90 MS

Output Interface:

2 Relays

Warranty:

2 Year

Relay Output:

Presence Relay / Fault Relay

Sensitivity:

16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L

Package:

Carton

Product Size:

76*42*91.5 Mm

Package Size:

136*86*52 Mm

Net Weight:

195 G

Gross Weight:

300 G

Name:

Vehicle Loop Detector

Supply Ability:

5000 Pcs per Month

Product Description

Weigh-In-Motion Systems Used Vehicle Loop Detector Easy Setup Durable Fault Diagnosis

The Weigh-In-Motion Systems (WIM) are advanced vehicle loop detectors designed to provide accurate weight measurements of moving vehicles without requiring them to stop. These systems utilize cutting-edge technology to ensure precision in data collection, making them ideal for traffic management, tolling, and highway monitoring applications. By integrating seamlessly into existing infrastructure, the WIM systems offer a cost-effective solution for cities and highways looking to enhance their traffic analysis capabilities.

One of the standout features of the WIM systems is their easy setup process. Designed for quick installation and minimal disruption, these loop detectors can be deployed efficiently, allowing for rapid deployment in various locations. The user-friendly setup is complemented by detailed documentation and support, ensuring that both new and experienced users can implement the system with confidence. This ease of installation significantly reduces downtime and labor costs, enabling transportation agencies to focus on improving their services.

Durability is another key aspect of the Weigh-In-Motion Systems. Constructed with robust materials, these detectors are engineered to withstand harsh environmental conditions, including extreme temperatures and heavy traffic loads. Additionally, the systems incorporate advanced fault diagnosis features that allow for real-time monitoring and alerts, enabling proactive maintenance before issues escalate. This combination of durability and smart diagnostics ensures that the WIM systems provide reliable performance over an extended lifespan, making them a smart investment for any traffic management initiative.

vehicle loop detector

loop detector

Feature

1. 15-2000 μh detection Range
- The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
- The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

2. Compact Side
- The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
3. Diagnostic Capabilities
- Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
4. Selectable Presence Time
- The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
5. Loop Presence Time
- Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
6. Two Separate Output Relays
- Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
- Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
7. Automatic Sensitivity Boost (ASB)
- This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
8. Automatic Environment Drifting Compensation
- Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.
9. 17 Dip Switch
- The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.
10. Dual Channel
- Dual channel loop detector can be used as two single channel versions, Supports two independent detection channels.
- Also allowing for the simultaneous monitoring of multiple loops, loop detector has the ability to recognize direction in single-channel applications. enhancing the flexibility and accuracy of vehicle detection.

Loop sensor

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

1. Traffic Signal Control
- Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
- Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
2. Parking Management Systems
- Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
- Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
3. Toll Booth Systems
- Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
- Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
4. Security and Access Control
- Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
- Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
5. Logistics and Warehousing Management
- Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
- Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
6. Public Transport Management
- Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
- Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
7. Municipal Engineering and Infrastructure
- Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
- Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

loop detector

Certification

Loop detector

Product Series

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

loop detector
