Vehicle Loop Detector
>

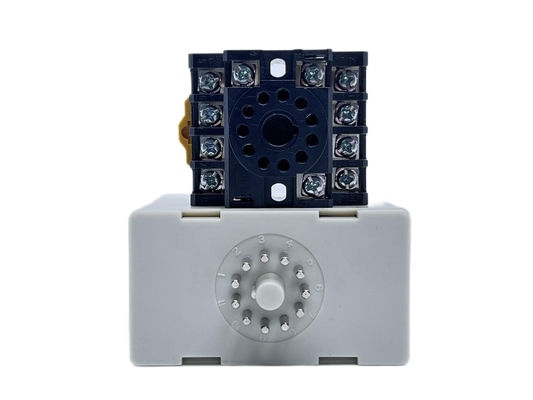

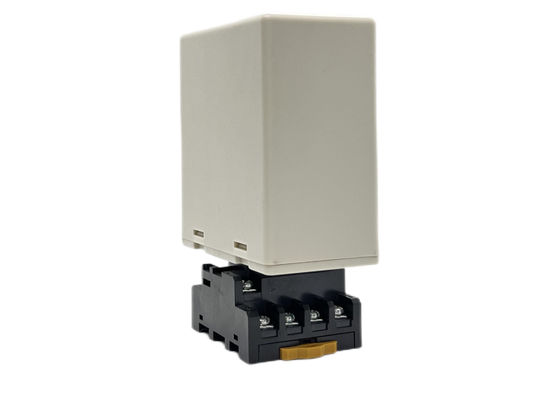

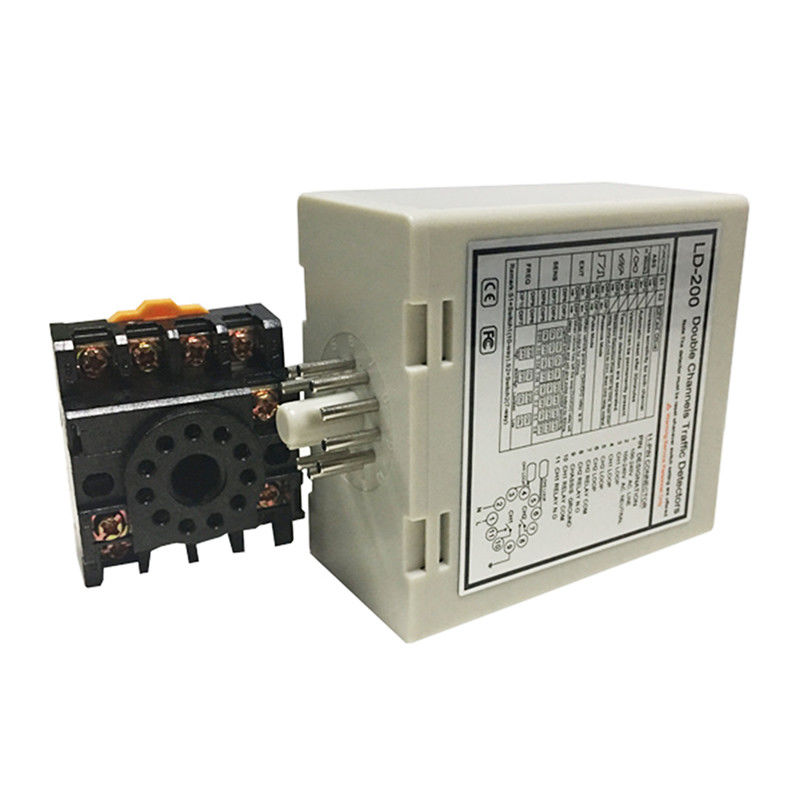

White Vehicle Loop Detection System Dual Channel Traffic Light Loop Detector

White Vehicle Loop Detection System Dual Channel Traffic Light Loop Detector

Brand Name: JUTAI
Model Number: LD-200
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE FCC
Document:
Name:
Dual Channel Traffic Light Loop Detector
Power Supply:
100-240 VAC
Self-turning Range:
15-2000 Uh
Response Times:
10-90 MS
Channel:
Dual Channel
Loop Quantity:
2 Pcs
Loop Connection:
Twisted Pair Cable
Humidity:
95% Non-condensing
Operation Temp:
-40 To +70 ℃ (-111°F To +158°F)
Color:
White
HS Code:
9033000090
Output Interface:
2 Relays
Relay Output:
Presence Relay / Fault Relay
Sensitivity:
16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L
Warranty:
2 Year
Package:
Carton
Product Size:
76*42*91.5 Mm
Package Size:
136*86*52 Mm
Net Weight:
195 G
Gross Weight:
300 G
Supply Ability:
5000 Pcs per Month
Highlight:

White Vehicle Loop Detection System

,

Vehicle Loop Detection System Dual Channel

,

Dual Channel Traffic Light Loop Detector

Product Description

Gate Access Directional Dual Channel Vehicle Loop Detection For Single Way Traffic Light System

    The Gate Access Directional Dual Channel Vehicle Loop Detection system is specifically designed for single-way traffic light systems, providing a reliable solution for managing vehicle flow in one-way traffic scenarios. This advanced detection technology ensures that traffic lights respond promptly to approaching vehicles, enhancing safety and efficiency at intersections and access points. By utilizing dual-channel capabilities, the system can accurately monitor and detect vehicles, reducing the risk of miscommunication and improving overall traffic management.

    Performance features of this system stand out, particularly its ability to distinguish between vehicles approaching the traffic light and those that may be parked or stationary. This distinction is crucial for optimizing traffic flow and minimizing unnecessary stops. The dual channel design allows for simultaneous detection, ensuring that the system remains responsive even in busy traffic conditions. Built for durability, the vehicle loop detectors are engineered to withstand varying environmental factors, making them suitable for both urban and rural installations. Easy integration with existing traffic management systems ensures a smooth setup process, allowing for quick deployment. By implementing the Gate Access Directional Dual Channel Vehicle Loop Detection system, municipalities and traffic authorities can significantly enhance traffic light efficiency, improve safety for drivers and pedestrians, and promote smoother traffic flow in one-way systems.

                          vehicle loop detector

                                       loop detector

                               vehicle loop detector






Feature

  • 1. 15-2000 μh detection Range
    • The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
    • The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on
  • 2. Compact Side

    • The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
  • 3. Diagnostic Capabilities

    • Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
  • 4. Selectable Presence Time

    • The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
  • 5. Loop Presence Time

    • Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
  • 6. Two Separate Output Relays

    • Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
    • Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
  • 7. Automatic Sensitivity Boost (ASB)

    • This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
  • 8. Automatic Environment Drifting Compensation

    • Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.

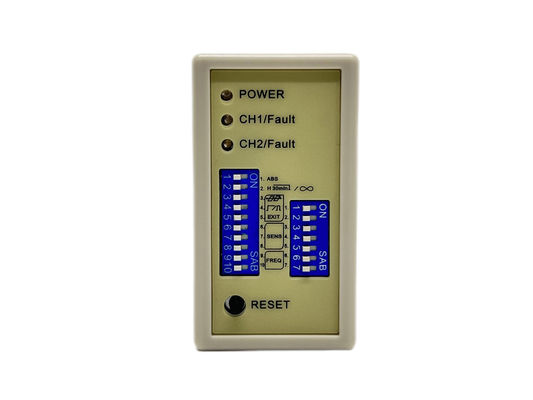

  • 9. 17 Dip Switch
    • The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.
  • 10. Dual Channel
    • Dual channel loop detector can be used as two single channel versions, Supports two independent detection channels.
    • Also allowing for the simultaneous monitoring of multiple loops, loop detector has the ability to recognize direction in single-channel applications. enhancing the flexibility and accuracy of vehicle detection.

White Vehicle Loop Detection System Dual Channel Traffic Light Loop Detector 3            Loop sensor








Application



JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:





Application
Traffic Signal Control Parking Management Systems
Toll Booth Systems Security and Access Control
Logistics  Management Warehousing Management
Public Transport Management Municipal Engineering and Infrastructure





  • 1. Traffic Signal Control

    • Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
    • Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
  • 2. Parking Management Systems

    • Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
    • Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
  • 3. Toll Booth Systems

    • Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
    • Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
  • 4. Security and Access Control

    • Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
    • Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
  • 5. Logistics and Warehousing Management

    • Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
    • Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
  • 6. Public Transport Management

    • Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
    • Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
  • 7. Municipal Engineering and Infrastructure

    • Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
    • Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.



                                               loop detector








Certification



                                                                 Loop detector




Product Series

LD-100 LD-102 LD-200 LD-202 JTHT-11

high sensitive loop detector

Single Channel

100-240 V AC

loop detector

Single Channel

12-24 V AC/DC

loop detector

Dual Channel

100-240 V AC

loop detector

Dual Channel

12-24 V AV/DC

loop cable

Loop cable

305 m Teflon coil

LCR-MT

multimeter



Multimeter










FAQ


Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.



Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3--7 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order ?
A: Firstly let us know your requirements or application by email or WhatsAPP.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.



Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.



Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
