Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

Brand Name:	JUTAI
Model Number:	LD-200
MOQ:	Support 1-10 Pcs for Sample
Price:	Negotiation
Packaging Details:	50 Pcs 1 Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE FCC

Document:

Channel:

Dual Channel

Loop Quantity:

2 Pcs

Power Supply:

100-240 VAC

Warranty:

2 Year

Self-turning Range:

15-2000 Uh

Response Times:

10-90 MS

Loop Connection:

Twisted Pair Cable

Humidity:

95% Non-condensing

Operation Temp:

-40 To +70 ℃ (-111°F To +158°F)

Color:

White

HS Code:

9033000090

Output Interface:

2 Relays

Relay Output:

Presence Relay / Fault Relay

Sensitivity:

16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L

Package:

Carton

Product Size:

76*42*91.5 Mm

Package Size:

136*86*52 Mm

Net Weight:

195 G

Gross Weight:

300 G

Name:

Vehicle Loop Detector

Supply Ability:

5000 Pcs per Month

Highlight:

240 VAC Vehicle Loop Sensor

2000 μh Vehicle Loop Sensor

Traffic Direction Recognition Vehicle Loop Sensor

Product Description

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

The Traffic Direction Recognition Vehicle Loop Sensor is a sophisticated solution designed to enhance vehicle flow management in various traffic scenarios. Operating within a voltage range of 100-240 VAC, this sensor is ideal for applications such as intersections, parking lots, and toll booths. Its advanced technology allows for the precise detection of vehicle movement direction, enabling traffic authorities to optimize signal timing and improve overall traffic efficiency. By accurately identifying whether vehicles are entering or exiting a designated area, this sensor plays a crucial role in maintaining smooth traffic flow and reducing congestion.

Performance features of the loop sensor include a wide inductance range of 15-2000 μH, making it adaptable to different loop configurations and vehicle types. This flexibility ensures reliable detection under various conditions, enhancing its effectiveness in diverse environments. The sensor is engineered to minimize false triggers, which is essential for maintaining the integrity of traffic control systems. Additionally, its robust design ensures durability against weather elements, making it suitable for outdoor installations. Easy to install and integrate with existing traffic management systems, the Traffic Direction Recognition Vehicle Loop Sensor helps enhance operational efficiency, improve safety measures, and create a more organized traffic environment for both vehicles and pedestrians. By implementing this advanced technology, traffic authorities can significantly improve the effectiveness of their traffic management strategies.

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 0

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 1

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 2

Feature

1. 15-2000 μh detection Range
- The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
- The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

2. Compact Side
- The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
3. Diagnostic Capabilities
- Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
4. Selectable Presence Time
- The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
5. Loop Presence Time
- Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
6. Two Separate Output Relays
- Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
- Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
7. Automatic Sensitivity Boost (ASB)
- This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
8. Automatic Environment Drifting Compensation
- Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.
9. 17 Dip Switch
- The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.
10. Dual Channel
- Dual channel loop detector can be used as two single channel versions, Supports two independent detection channels.
- Also allowing for the simultaneous monitoring of multiple loops, loop detector has the ability to recognize direction in single-channel applications. enhancing the flexibility and accuracy of vehicle detection.

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

1. Traffic Signal Control
- Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
- Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
2. Parking Management Systems
- Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
- Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
3. Toll Booth Systems
- Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
- Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
4. Security and Access Control
- Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
- Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
5. Logistics and Warehousing Management
- Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
- Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
6. Public Transport Management
- Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
- Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
7. Municipal Engineering and Infrastructure
- Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
- Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 5

Certification

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 6

Product Series

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

Tags:

Products Details

Home > Products >

Vehicle Loop Detector

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

All Category

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

Brand Name:	JUTAI
Model Number:	LD-200
MOQ:	Support 1-10 Pcs for Sample
Price:	Negotiation
Packaging Details:	50 Pcs 1 Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Brand Name:

JUTAI

Certification:

CE FCC

Model Number:

LD-200

Document:

LD-200 LD-202.pdf

Channel:

Dual Channel

Loop Quantity:

2 Pcs

Power Supply:

100-240 VAC

Warranty:

2 Year

Self-turning Range:

15-2000 Uh

Response Times:

10-90 MS

Loop Connection:

Twisted Pair Cable

Humidity:

95% Non-condensing

Operation Temp:

-40 To +70 ℃ (-111°F To +158°F)

Color:

White

HS Code:

9033000090

Output Interface:

2 Relays

Relay Output:

Presence Relay / Fault Relay

Sensitivity:

16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L

Package:

Carton

Product Size:

76*42*91.5 Mm

Package Size:

136*86*52 Mm

Net Weight:

195 G

Gross Weight:

300 G

Name:

Vehicle Loop Detector

Minimum Order Quantity:

Support 1-10 Pcs for Sample

Price:

Negotiation

Packaging Details:

50 Pcs 1 Carton

Delivery Time:

5-8 working day

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Supply Ability:

5000 Pcs per Month

Highlight:

240 VAC Vehicle Loop Sensor

2000 μh Vehicle Loop Sensor

Traffic Direction Recognition Vehicle Loop Sensor

Product Description

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 0

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 1

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 2

Feature

1. 15-2000 μh detection Range
- The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
- The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

2. Compact Side
- The compact and well-engineered housing combines all industry requirements for features and functionality, allowing this detector to be incorporated into any existing traffic detection system.
3. Diagnostic Capabilities
- Comprehensive diagnostics capabilities enable accurate diagnosis of loop and installation problems, ensuring optimal performance and reducing downtime.
4. Selectable Presence Time
- The output of the presence relay can be selected to limit a detect output to a fixed time (greater than 30 minutes) while a vehicle remains on the loop, providing flexibility in traffic management.
5. Loop Presence Time
- Interference between adjacent loop detectors can be identified through integral indication and eliminated by adjusting the frequency setting, ensuring reliable operation.
6. Two Separate Output Relays
- Presence Relay A: Provides presence output and can be extended for 0, 2, 5, 8, 10, 15, 20, or 30 seconds, programmable with external 10-way DIP switches.
- Pulse Relay B: Programmable with external 10-way DIP switches, it offers presence, pulse on entry, pulse on exit, or failed output, enhancing detection flexibility.
7. Automatic Sensitivity Boost (ASB)
- This feature reliably detects large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum upon vehicle detection, ensuring accurate identification.
8. Automatic Environment Drifting Compensation
- Loop detectors (or other sensors) automatically adjust and calibrate themselves to changes in environmental conditions, maintaining detection accuracy and stability despite varying weather and environmental factors.
9. 17 Dip Switch
- The dip swich design on the shell makes the setting of loop detector easier and clearer, which is very user-friendly for users. Users can set all the functions first and then install the loop detector.
10. Dual Channel
- Dual channel loop detector can be used as two single channel versions, Supports two independent detection channels.
- Also allowing for the simultaneous monitoring of multiple loops, loop detector has the ability to recognize direction in single-channel applications. enhancing the flexibility and accuracy of vehicle detection.

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

1. Traffic Signal Control
- Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
- Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.
2. Parking Management Systems
- Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
- Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.
3. Toll Booth Systems
- Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
- Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.
4. Security and Access Control
- Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
- Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.
5. Logistics and Warehousing Management
- Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
- Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.
6. Public Transport Management
- Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
- Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.
7. Municipal Engineering and Infrastructure
- Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
- Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 5

Certification

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh 6

Product Series

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

Tags:

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

products details

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

240 VAC Vehicle Loop Sensor

2000 μh Vehicle Loop Sensor

Traffic Direction Recognition Vehicle Loop Sensor

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

Feature

Application

Certification

Product Series

Inductive Loop Detector

Car Loop Detector

Road Loop Detector

Products Details

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ

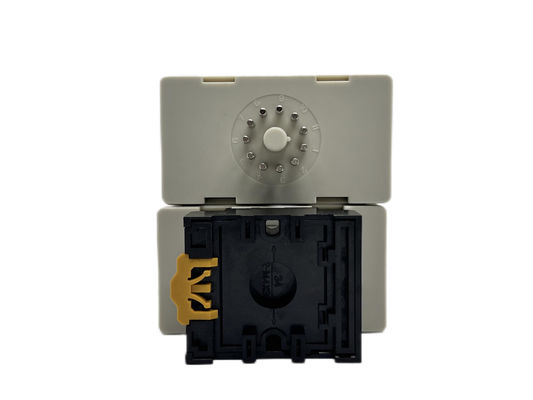

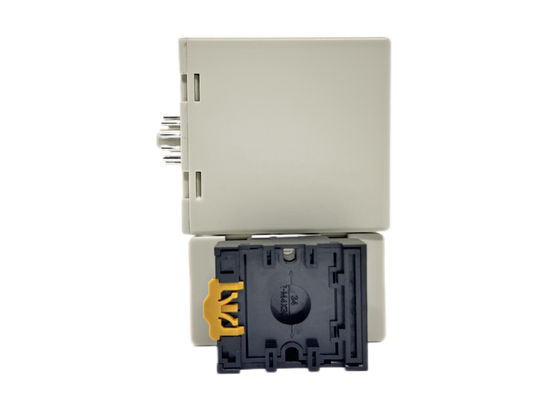

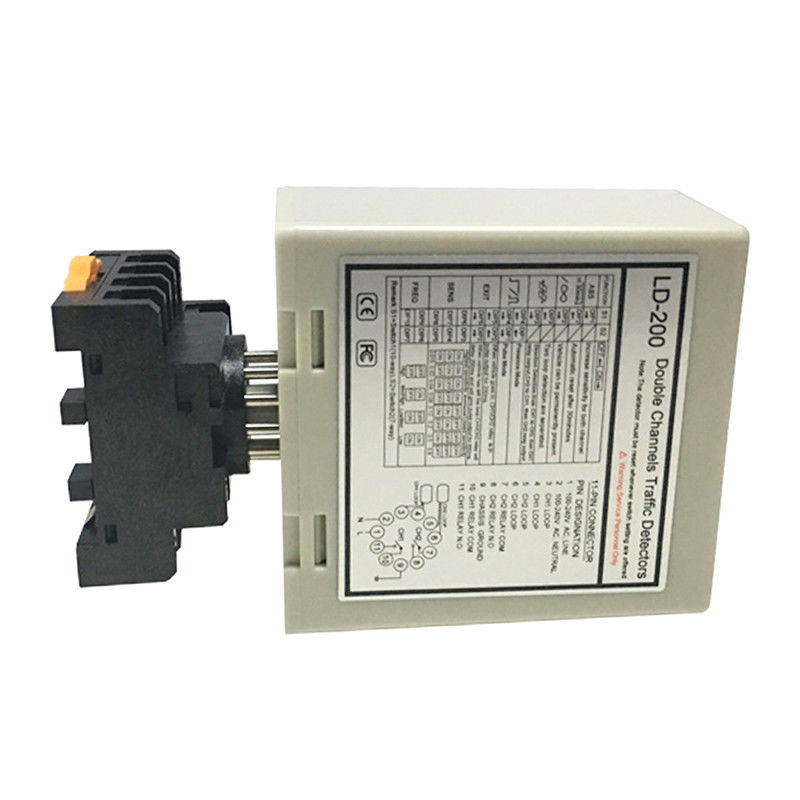

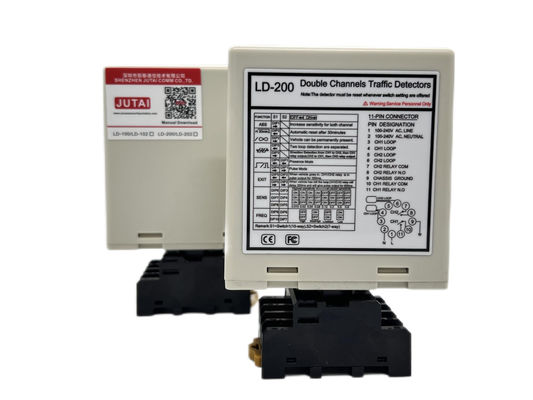

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

240 VAC Vehicle Loop Sensor

2000 μh Vehicle Loop Sensor

Traffic Direction Recognition Vehicle Loop Sensor

Traffic Direction Recognition Vehicle loop sensor 100-240 VAC 15-2000 μh

Feature
