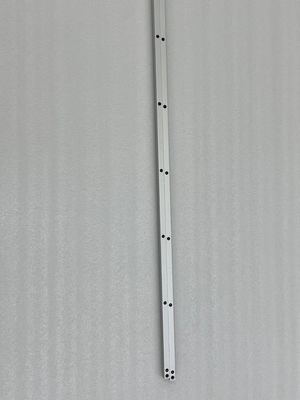

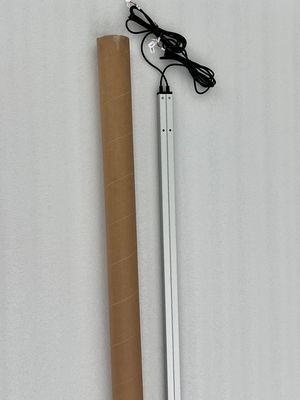

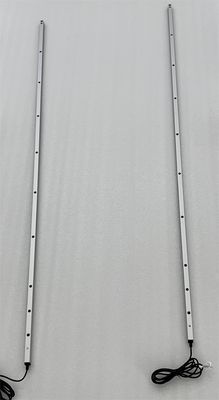

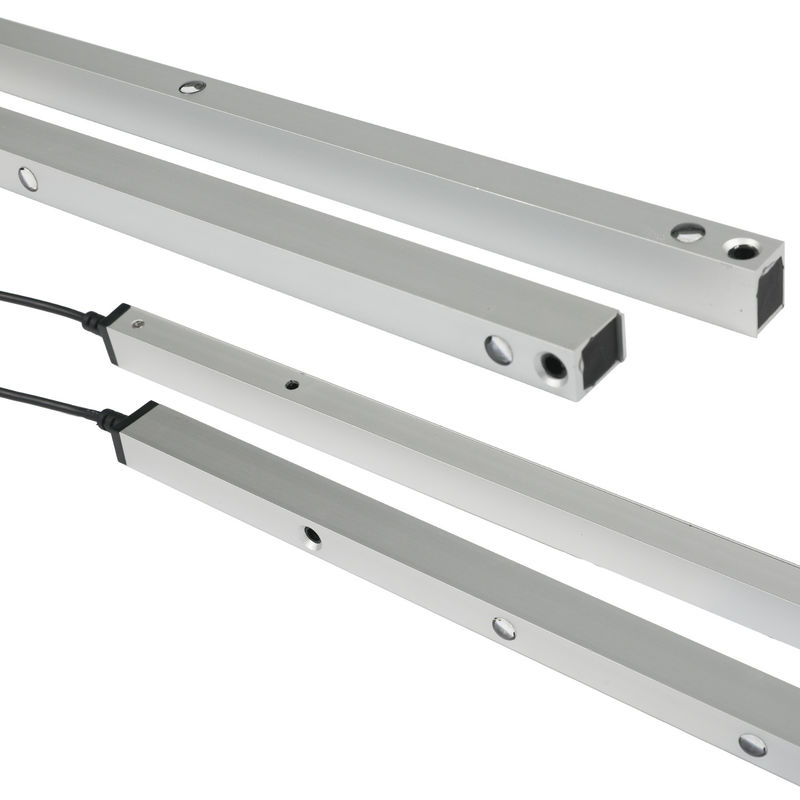

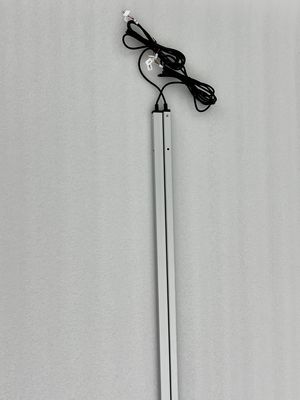

Relay Signal Output Infrared Light Curtain Overhead Door IP 67 High Safety Standards

    The Relay Signal Output Infrared Light Curtain for Overhead Doors is a critical safety solution designed to enhance the protection of personnel and equipment in industrial and commercial settings. With an IP 67 rating, this sensor is fully dust-tight and resistant to water immersion, making it ideal for use in demanding environments such as warehouses, manufacturing facilities, and loading docks. Its high safety standards ensure reliable performance, significantly reducing the risk of accidents during door operations.

   This infrared light curtain features relay signal output, allowing for seamless integration with existing safety systems and machinery controls. The system creates an invisible safety barrier that accurately detects the presence of individuals or objects in the doorway. Upon detection, the relay output can trigger immediate actions, such as stopping or reversing the door, ensuring fast and effective responses to potential hazards. The quick response time and robust design of this light curtain enhance operational efficiency while maintaining safety protocols. By incorporating the Relay Signal Output Infrared Light Curtain into overhead door systems, businesses can effectively improve workplace safety, ensure compliance with regulations, and create a secure environment that promotes productivity and protects employees.

Key features

• 1.Length and Coverage

  • Provides comprehensive coverage with a length of 1.5 meters.
  • Detects objects or people in the path of industrial doors.

• 2. Blanking Function

  • Operates in fade mode to ensure the infrared light does not interfere with the door’s normal descent.
  • If objects or people enter the path while the door is falling, the door will immediately stop or reverse.

• 3. High Safety Standards

  • Designed to meet stringent safety standards.
  • Ensures reliable protection in hazardous industrial environments.

• 4. Multi-beam Detection

  • Utilizes multiple infrared light beams to form an invisible protective screen.
  • The system commands the door to stop or reverse if any beam is interrupted, preventing accidents.

• 5. IP 67 Rating for Extreme Durability

  • Fully potted with protection against water, dust, and humidity.
  • Durable and resistant to failure, capable of withstanding harsh industrial conditions.

• 6. No Sync Cord Required for Easy Installation and Integration

  • Simplifies installation by eliminating the need for synchronization cables.
  • Faster and more straightforward setup reduces labor and installation costs.
  • Minimizes potential points of failure, enhancing overall system reliability.

Application

• 1. Roller shutter doors:
  • Installed on both sides of the rolling door to prevent the door from colliding with any object or person during closing.
  • Advantages: Increased safety, reduced damage and repair costs due to accidental collisions.

• 2. Sliding doors:
  • Used in sliding door systems to detect any obstacles in front of the door and ensure that the door does not cause injury to personnel or equipment as it moves.
  • Advantages: Improves operational efficiency and ensures the safe passage of people and goods.

• 3. Folding doors:
  • Installed on or near the edge of a folding door, detects in real time any object within the door's path of movement.
  • Advantage: Provides reliable protection against injuries caused by the door during folding and unfolding.
• 4. High Speed Doors:
  • High speed doors are typically used in environments that require frequent opening and closing, such as workshops and warehouses. The privacy grating responds quickly to detect obstacles in front of the door.
  • Benefits: Ensures efficient operation while preventing injury from fast moving doors.
• 5. Cold storage doors:
  • Cold storage doors need to be opened and closed frequently to maintain temperature. An anti-infiltration grating prevents the door from colliding with personnel or handling equipment while closing.
  • Advantage: Protects personnel while avoiding damage to equipment and the door.

• 6. Fire Doors:
  • In an emergency, fire doors need to close quickly. The fire barrier ensures that there are no obstacles in the way of the emergency closing process, ensuring safety and smoothness.
  • Advantage: Provides safety at critical times and ensures that evacuation routes are clear.

Conclusion

Blanking gratings in a variety of industrial door applications significantly improve safety and operational efficiency by providing real-time detection and response. Their use not only protects people and equipment, but also reduces maintenance and downtime due to accidental collisions and damage, thereby increasing overall productivity and safety levels.
