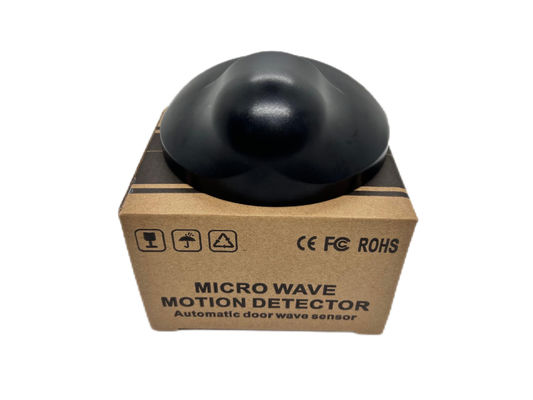

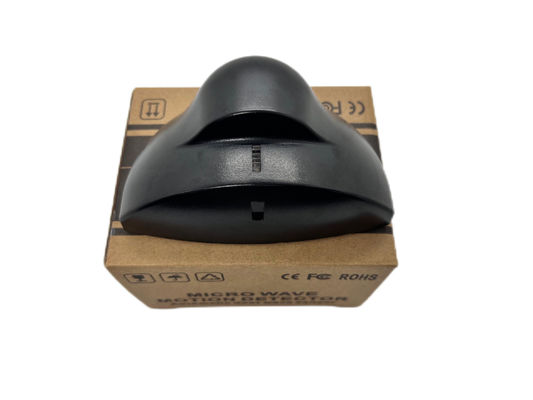

Microwave Motion Sensor
>
Easy Install High Sensitivity Motion Sensor , Automatic Door Sensors 50Hz-60Hz

Easy Install High Sensitivity Motion Sensor , Automatic Door Sensors 50Hz-60Hz

Brand Name: JUTAI
Model Number: RD24-4
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation

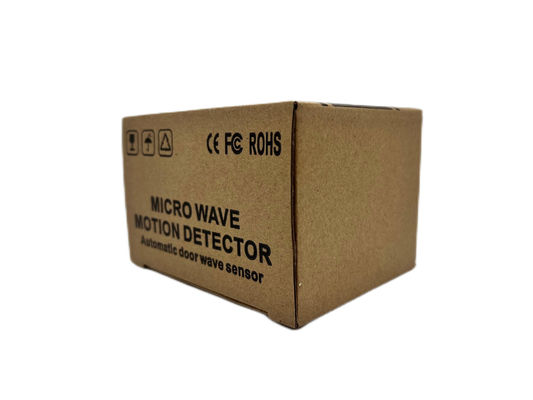

Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Name:
High Sensitivity Motion Sensor
Mounting Inclination:
0~90°(Vertical),-30°~30(Horizontal)
Housing Material:
ABS Plastic
Max Mounting Height:
5 M
Power Supply:
12-30 V AC / DC ±10 % (50~60Hz)
Relay Output:
COM, NO
Working Principle:
Doppler Effect
Transmitting Frequency:
24.125GHz
Hold Time:
0.5 S
Minimum Detection Speed:
5 Cm/s
Operation Temp:
-25 ºC ~ +55 ºC
Product Size:
120*52*80 Mm
Package Size:
130*85*100 Mm
Net Weight:
106 G
Gross Weight:
197 G
Wire Length:
2.2m
Supply Ability:
5000 Pcs per Month
Highlight:

Easy Install High Sensitivity Motion Sensor

,

Automatic Door Sensors 50Hz

,

Automatic Door Sensors 60Hz

Product Description

High Sensitivity Automatic Door Sensing Device for Automatic Door with Wide Detection Range 50~60 Hz

    The High Sensitivity Automatic Door Sensing Device is an innovative solution designed to enhance the functionality of automatic doors in various settings. With a wide detection range, this device ensures reliable operation by accurately sensing movement and triggering door activation. Operating at a frequency of 50 to 60 Hz, it is suitable for a variety of commercial and residential applications, making it an ideal choice for high-traffic areas such as shopping malls, hospitals, and office buildings.

    This sensing device features advanced technology that allows for quick and precise detection of individuals approaching the door. Its high sensitivity ensures that even subtle movements are recognized, facilitating seamless access without delays. The robust design is built to withstand daily wear and tear, ensuring durability and long-lasting performance. By integrating the High Sensitivity Automatic Door Sensing Device into automatic door systems, businesses can significantly improve user convenience, enhance safety measures, and create a more welcoming environment for all visitors.






JUTAI RD24-4 radar sensor is positioned in the market as a high quality version of the automatic door sensor. Its maximum installation height can be up to 5m, the common radar sensor on the market is generally 3.5m, in addition, we have done a lot of upgrades in the use of raw materials for the sensor, so that our sensors have the following advantages over ordinary sensors:

  • 1. strong anti-interference ability
  • 2. high stability
  • 3. direction recognition
  • 4. more energy-saving and environmentally friendly design, lower power consumption
  • 5. easy to install and debug



microwave motion sensor



Below are some of the main applications and features of microwave radar sensors for automatic doors:



  • 1. Principle of operation
    • Microwave radar sensors work by transmitting microwave signals. When the microwaves encounter a moving object, the Doppler effect occurs and the reflected back microwave signals will have frequency changes. The sensor detects these frequency changes to determine whether there is an object approaching, thus controlling the opening and closing of the automatic door.
  • 2. Main features
    • High sensitivity: able to quickly detect moving objects, fast response time, suitable for high traffic areas.
    • Strong anti-interference ability: microwave radar sensor is not affected by light, dust, temperature and other environmental factors, high reliability.
    • Wide detection range: can cover a large detection area, suitable for a variety of door types.
    • High security: it can effectively avoid opening or closing the door by mistake and improve the safety of use.
  • 3. Application Scenarios
    • Shopping malls, supermarkets: automatic door opening and closing control, to ensure the convenience of customers in and out.
    • Office buildings, hospitals: to improve the efficiency of passage, especially for the mobility impaired to provide convenience.
    • Factories, warehouses: through the automatic door control logistics in and out, improve work efficiency.
  • 4. Installation and commissioning
    • Installation should pay attention to the installation height and angle of the sensor to ensure the best detection effect. Debugging needs to be based on the specific use of the environment for the sensitivity and detection range of the settings, in order to avoid malfunction or detection of blind areas.
  • 5. Maintenance
    • Regularly check the working status of the sensor, clean the surface of the sensor to ensure that no dust or obstacles affect its normal operation.

The application of microwave radar sensors in automatic doors significantly improves the intelligence and convenience of the door control system, which is an indispensable and important component in modern intelligent buildings.



                              Automatic door sensor



JUTAI Profile
JUTAI stands as a distinguished Motion Sensor Photoelectric Sensor manufacturer, seamlessly integrating research, development, production, sales, and distribution. Our unwavering commitment to innovation and quality propels us to deliver exceptional solutions to our valued customers. Beyond establishing our brand, we aspire to be your trusted production partner, contributing to the creation and promotion of your unique brand identity.
