Microwave Motion Sensor
>

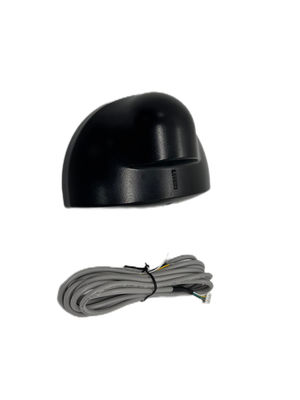

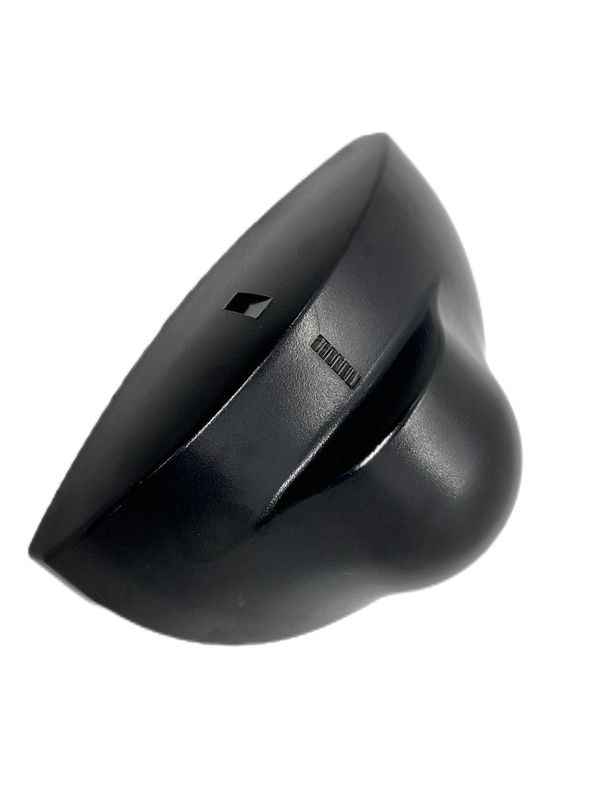

RD24-4 12-30V Microwave Motion Sensor High Sensitivity For Automatic Door Trigger

RD24-4 12-30V Microwave Motion Sensor High Sensitivity For Automatic Door Trigger

Brand Name: JUTAI
Model Number: RD24-4
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Name:
Microwave Motion Sensor
Relay Output:
COM, NO
Working Principle:
Doppler Effect
Wire Length:
2.2m
Housing Material:
ABS Plastic
Operation Temp:
-25 ºC ~ +55 ºC
Power Supply:
12-30 V AC / DC ±10 % (50~60Hz)
Transmitting Frequency:
24.125GHz
Mounting Inclination:
0~90°(Vertical),-30°~30(Horizontal)
Max Mounting Height:
5 M
Hold Time:
0.5 S
Minimum Detection Speed:
5 Cm/s
Product Size:
120*52*80 Mm
Package Size:
130*85*100 Mm
Net Weight:
106 G
Gross Weight:
197 G
Supply Ability:
5000 Pcs per Month
Highlight:

30V Microwave Motion Sensor

,

Microwave Motion Sensor High Sensitivity

,

Automatic Door Microwave Motion Sensor

Product Description

12-30 V Automated Entrance Sensing Apparatus for Automatic Door Trigger with High Sensitivity

    The 12-30 V Automated Entrance Sensing Apparatus is a cutting-edge solution designed to enhance the functionality of automatic doors in various commercial and residential settings. Operating within a voltage range of 12 to 30 V, this sensing device is highly versatile and easily integrates into existing door systems, making it ideal for retail stores, offices, and public buildings.

    This apparatus features high sensitivity technology that allows for precise detection of individuals approaching the door. Its quick response time ensures that doors activate seamlessly, providing a smooth and convenient entry experience for users. Designed for durability, the unit can withstand the rigors of daily use, maintaining reliable performance even in high-traffic environments.

    By incorporating the 12-30 V Automated Entrance Sensing Apparatus into automatic door systems, businesses can significantly improve accessibility, enhance user experience, and optimize energy efficiency by minimizing unnecessary door openings. This innovative solution creates a welcoming environment that prioritizes both convenience and safety for all visitors.








JUTAI RD24-4 radar sensor is positioned in the market as a high quality version of the automatic door sensor. Its maximum installation height can be up to 5m, the common radar sensor on the market is generally 3.5m, in addition, we have done a lot of upgrades in the use of raw materials for the sensor, so that our sensors have the following advantages over ordinary sensors:

  • 1. strong anti-interference ability
  • 2. high stability
  • 3. direction recognition
  • 4. more energy-saving and environmentally friendly design, lower power consumption
  • 5. easy to install and debug



microwave motion sensor



Below are some of the main applications and features of microwave radar sensors for automatic doors:



  • 1. Principle of operation
    • Microwave radar sensors work by transmitting microwave signals. When the microwaves encounter a moving object, the Doppler effect occurs and the reflected back microwave signals will have frequency changes. The sensor detects these frequency changes to determine whether there is an object approaching, thus controlling the opening and closing of the automatic door.
  • 2. Main features
    • High sensitivity: able to quickly detect moving objects, fast response time, suitable for high traffic areas.
    • Strong anti-interference ability: microwave radar sensor is not affected by light, dust, temperature and other environmental factors, high reliability.
    • Wide detection range: can cover a large detection area, suitable for a variety of door types.
    • High security: it can effectively avoid opening or closing the door by mistake and improve the safety of use.
  • 3. Application Scenarios
    • Shopping malls, supermarkets: automatic door opening and closing control, to ensure the convenience of customers in and out.
    • Office buildings, hospitals: to improve the efficiency of passage, especially for the mobility impaired to provide convenience.
    • Factories, warehouses: through the automatic door control logistics in and out, improve work efficiency.
  • 4. Installation and commissioning
    • Installation should pay attention to the installation height and angle of the sensor to ensure the best detection effect. Debugging needs to be based on the specific use of the environment for the sensitivity and detection range of the settings, in order to avoid malfunction or detection of blind areas.
  • 5. Maintenance
    • Regularly check the working status of the sensor, clean the surface of the sensor to ensure that no dust or obstacles affect its normal operation.

The application of microwave radar sensors in automatic doors significantly improves the intelligence and convenience of the door control system, which is an indispensable and important component in modern intelligent buildings.



                              Automatic door sensor



JUTAI Profile
JUTAI stands as a distinguished Motion Sensor Photoelectric Sensor manufacturer, seamlessly integrating research, development, production, sales, and distribution. Our unwavering commitment to innovation and quality propels us to deliver exceptional solutions to our valued customers. Beyond establishing our brand, we aspire to be your trusted production partner, contributing to the creation and promotion of your unique brand identity.
