Microwave Motion Sensor
>

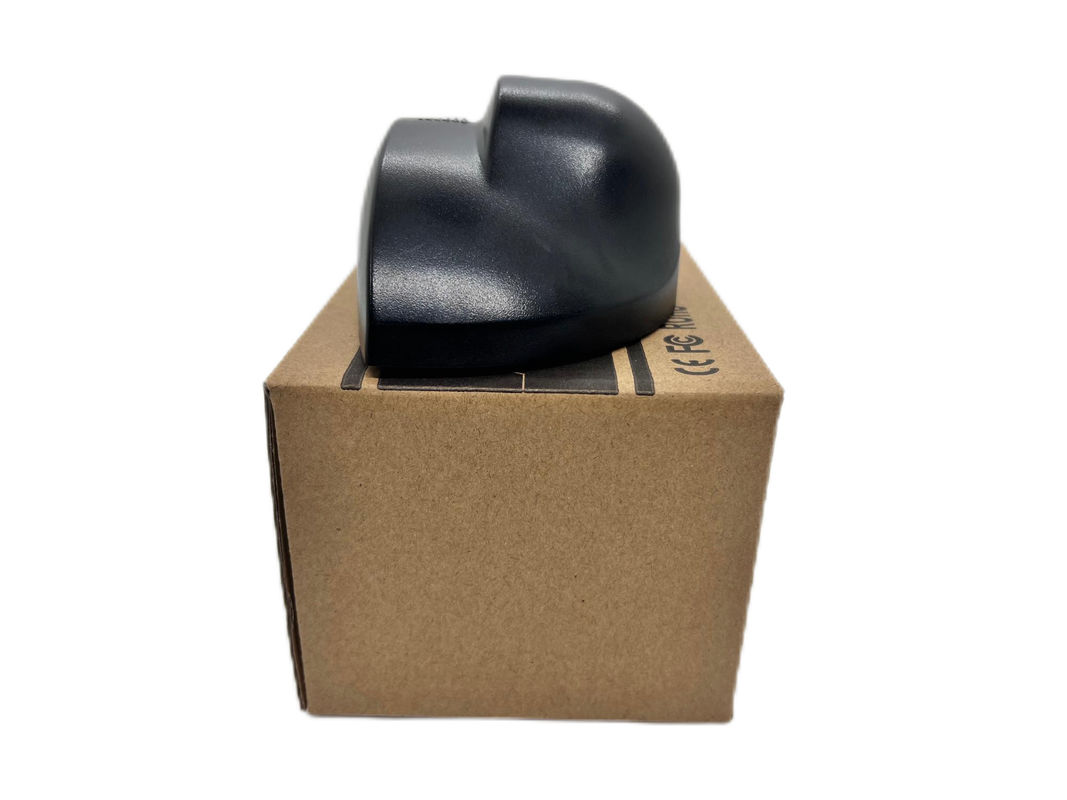

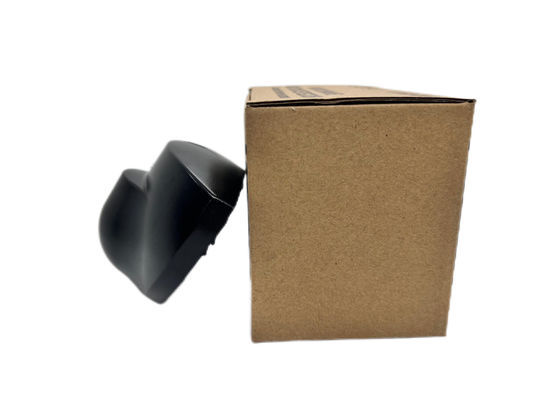

Doppler Microwave Motion Sensor High sensitivity For Motion Activated Door Module

Doppler Microwave Motion Sensor High sensitivity For Motion Activated Door Module

Brand Name: JUTAI
Model Number: RD24-4
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Name:
Microwave Motion Sensor
Relay Output:
COM, NO
Working Principle:
Doppler Effect
Wire Length:
2.2m
Housing Material:
ABS Plastic
Operation Temp:
-25 ºC ~ +55 ºC
Power Supply:
12-30 V AC / DC ±10 % (50~60Hz)
Transmitting Frequency:
24.125GHz
Mounting Inclination:
0~90°(Vertical),-30°~30(Horizontal)
Max Mounting Height:
5 M
Hold Time:
0.5 S
Minimum Detection Speed:
5 Cm/s
Product Size:
120*52*80 Mm
Package Size:
130*85*100 Mm
Net Weight:
106 G
Gross Weight:
197 G
Supply Ability:
5000 Pcs per Month
Highlight:

Doppler Microwave Motion Sensor

,

Microwave Motion Sensor High sensitivity

,

Doppler Motion Microwave Sensor

Product Description

Microwave Motion Sensor For Motion-Activated Door Module With Rapid Response Time 5 Pin Antenna

    The Microwave Motion Sensor for Motion-Activated Door Module is a high-performance device designed to enhance the functionality and security of automatic door systems. Utilizing advanced microwave technology, this sensor offers exceptional sensitivity and precision, ensuring reliable detection of individuals approaching the door.

    One of the key features of this sensor is its rapid response time, which guarantees immediate activation of the door upon detecting motion. This quick reaction is crucial for maintaining smooth traffic flow in busy environments such as shopping malls, offices, and hospitals, providing seamless access for users.

    Designed for durability and longevity, the Microwave Motion Sensor is built to withstand the rigors of daily use. Its robust construction ensures reliable performance in various conditions, making it suitable for indoor and outdoor applications. By integrating this sensor into motion-activated door modules, businesses can significantly improve accessibility, enhance security measures, and create a welcoming environment that prioritizes user convenience.








JUTAI RD24-4 radar sensor is positioned in the market as a high quality version of the automatic door sensor. Its maximum installation height can be up to 5m, the common radar sensor on the market is generally 3.5m, in addition, we have done a lot of upgrades in the use of raw materials for the sensor, so that our sensors have the following advantages over ordinary sensors:

  • 1. strong anti-interference ability
  • 2. high stability
  • 3. direction recognition
  • 4. more energy-saving and environmentally friendly design, lower power consumption
  • 5. easy to install and debug



microwave motion sensor



Below are some of the main applications and features of microwave radar sensors for automatic doors:



  • 1. Principle of operation
    • Microwave radar sensors work by transmitting microwave signals. When the microwaves encounter a moving object, the Doppler effect occurs and the reflected back microwave signals will have frequency changes. The sensor detects these frequency changes to determine whether there is an object approaching, thus controlling the opening and closing of the automatic door.
  • 2. Main features
    • High sensitivity: able to quickly detect moving objects, fast response time, suitable for high traffic areas.
    • Strong anti-interference ability: microwave radar sensor is not affected by light, dust, temperature and other environmental factors, high reliability.
    • Wide detection range: can cover a large detection area, suitable for a variety of door types.
    • High security: it can effectively avoid opening or closing the door by mistake and improve the safety of use.
  • 3. Application Scenarios
    • Shopping malls, supermarkets: automatic door opening and closing control, to ensure the convenience of customers in and out.
    • Office buildings, hospitals: to improve the efficiency of passage, especially for the mobility impaired to provide convenience.
    • Factories, warehouses: through the automatic door control logistics in and out, improve work efficiency.
  • 4. Installation and commissioning
    • Installation should pay attention to the installation height and angle of the sensor to ensure the best detection effect. Debugging needs to be based on the specific use of the environment for the sensitivity and detection range of the settings, in order to avoid malfunction or detection of blind areas.
  • 5. Maintenance
    • Regularly check the working status of the sensor, clean the surface of the sensor to ensure that no dust or obstacles affect its normal operation.

The application of microwave radar sensors in automatic doors significantly improves the intelligence and convenience of the door control system, which is an indispensable and important component in modern intelligent buildings.



                              Automatic door sensor



JUTAI Profile
JUTAI stands as a distinguished Motion Sensor Photoelectric Sensor manufacturer, seamlessly integrating research, development, production, sales, and distribution. Our unwavering commitment to innovation and quality propels us to deliver exceptional solutions to our valued customers. Beyond establishing our brand, we aspire to be your trusted production partner, contributing to the creation and promotion of your unique brand identity.
