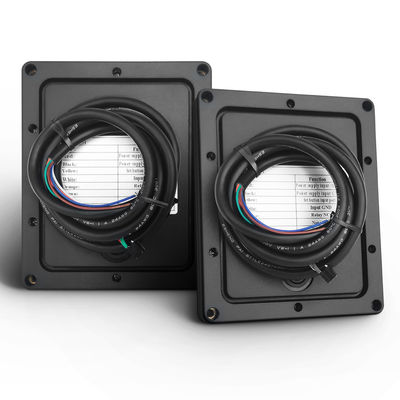

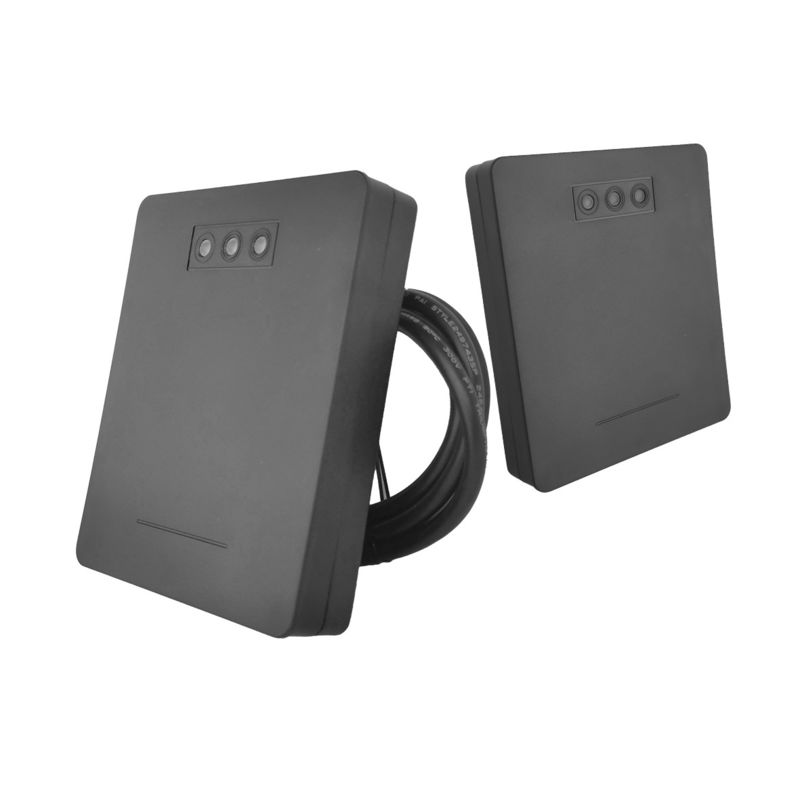

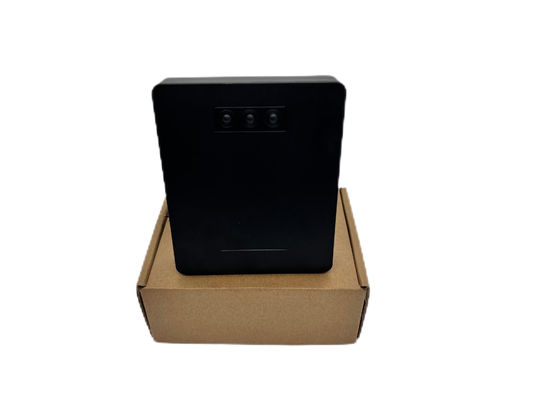

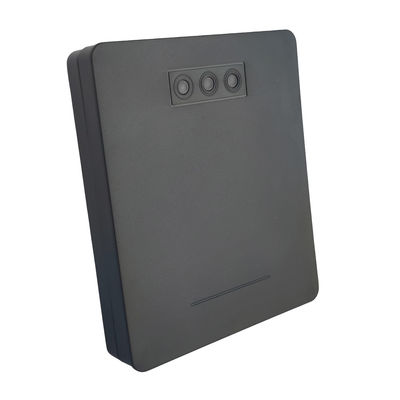

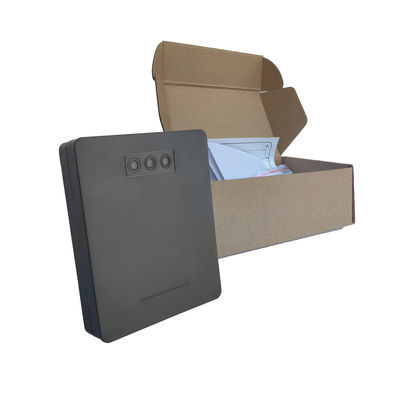

RD24-6M High Precision Barrier Radar Detector For Vehicle Detection

RD24-6M High Precision Barrier Radar Detector For Vehicle Detection

Brand Name: JUTAI
Model Number: RD24-6M
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation

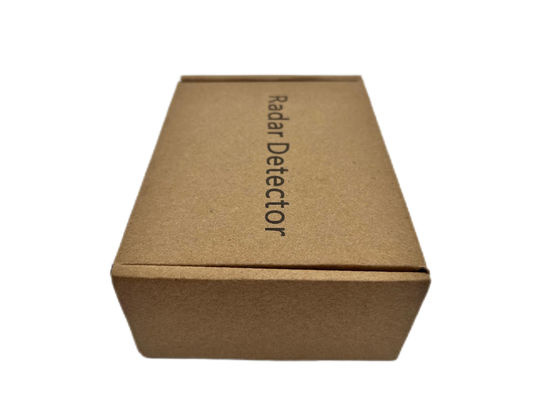

Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Response Time:
20-90 Ms
Name:
Barrier Radar Detector
Vertical Detection Angle:
0-60 °
Housing Material:
ABS+PC
Operating Frequency:
24.150GHz
Horizontal Detection Angle:
0-28 °
Operation Temp:
-40ºC~+70ºC
Input Voltage:
10-24 VDC
Relay Control Time:
1-6s Adjustable
IP Rate:
IP 67
Detection Range:
1-6m
Relay Contact:
1 A @24 V DC/AC
Product Size:
98*20.5*118 Mm
Package Size:
143*106*55 Mm
Net Weight:
150 G
Gross Weight:
200 G
HS Code:
8526101090
Supply Ability:
5000 Pcs per Month
Highlight:

High Precision Barrier Radar Detector

,

High Precision Vehicle Detection Radar Sensor

,

Barrier Radar Detector For Vehicle Detection

Product Description

Barrier Gate Safety Sensor Waterproof Rapid Response Car Detect Only High-precision IP 67

    The Barrier Gate Safety Sensor is a high-precision vehicle detection solution designed specifically for enhancing safety at barrier gates. With a waterproof rating of IP 67, this sensor is built to withstand harsh environmental conditions, ensuring reliable performance for outdoor applications in parking lots, toll booths, and secure entry points.

    Featuring rapid response technology, the sensor quickly detects vehicles, facilitating immediate activation of the barrier to ensure smooth and efficient access. Its high-precision detection capabilities minimize false alarms, providing consistent and dependable operation in busy environments.

    Engineered for durability and efficiency, the Barrier Gate Safety Sensor significantly improves safety measures and streamlines traffic management. By integrating this advanced sensor into vehicle monitoring systems, businesses can create a secure environment that prioritizes the well-being of both vehicles and pedestrians.



           Barrier sensor




Key Feature



  • 1. Adjustable detection distance from 1-6 m
    • The RD24-6 can be operated by setting the detection distance via a pushbutton that comes with the radar, in combination with the three indicator lights on the radar. We can set the detection distance of the radar according to the length of the barrier arm.
  • 2. Pedestrian and vehicle distinction
    • RD24-6M radar detector in the range of 1-6m can achieve the function of only detecting vehicles, but also vehicles and pedestrians can be detected, two modes for your choice. So that the radar can adapt to different scenes.
  • 3. Strong environmental adaptability
    • The radar system is not affected by rain, snow, dust and other inclement weather, which ensures all-weather stable operation.
  • 4. Easy installation
    • No need to dig trench or bury coil on the ground, the installation process is faster and easier, reducing the construction difficulty and cost.
  • 5. High-precision detection
    • Advanced radar technology can provide high-precision object detection and distance measurement, ensuring the accuracy of the gate operation.
  • 6. Durability and Stability
    • Radar systems usually have high durability and stability, reducing maintenance needs and costs.
  • 7. Strong anti-interference capability
    • Radar systems are more resistant to interference than ground sensing coils and can maintain good performance in complex environments.

                                                    Barrier Radar




Application


  • 1. Car park management:
    • Entry and exit vehicle identification and control to prevent unauthorised vehicle entry.
  • 2. Commercial and office buildings:
    • Provide safe and reliable vehicle access management to ensure building security.
    • Automated operation, reducing manual intervention and improving work efficiency.
  • 3. Industrial Parks:
    • Accurate detection and management of heavy vehicles to improve logistics efficiency.
    • Real-time monitoring to improve security and management in the park.
  • 4. Residential neighbourhoods:
    • Automatic identification of residents and visitor vehicles to improve community security.
    • Convenient management of visitor vehicles to provide a better service experience.
  • 5. Transport hubs:
    • Used for vehicle entry and exit management in railway stations, airports, bus stations and other places.
    • Improve the operational efficiency and safety of transport hubs.


                                             barrier radar detector




Certification

                                                   barrier radar certification


Company Profile
JUTAI, a premier manufacturer of Motion Sensor and Photoelectric Sensors, excels in R&D, production, sales, and distribution. Our dedication to innovation and quality drives us to offer superior solutions to our customers. We aim to be your reliable production partner, helping build and enhance your unique brand identity.
