Low Frequency Reader 125K
>

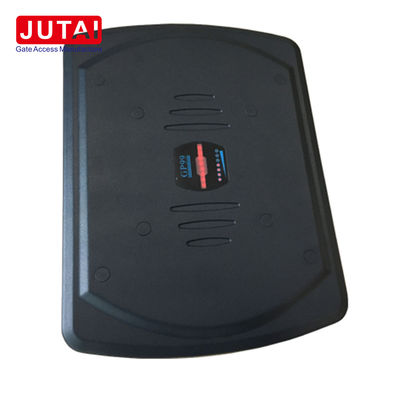

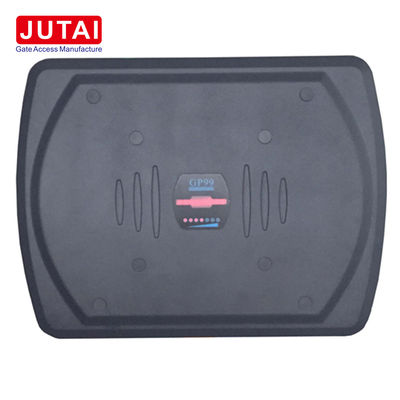

Compact IP65 Waterproof LF RFID Reader For Security Systems

Compact IP65 Waterproof LF RFID Reader For Security Systems

Brand Name: JUTAI
Model Number: GP99
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Name:
LF RFID Reader
Audio / Visua Indication:
Bright Blue LED And Buzzer
Housing Material:
ABS+PC, UV Protection
RFID Cards Accepted:
125kHz, 64 Bits, Manchester Encoding
Power Supply Input Voltage:
AC 120V / 60Hz Or 230V/50Hz
Output Voltage:
DC 12V / 1A
IP Level:
IP 65
Reading Range:
130 Cm
Interfaces:
Wiegand 26 Or 34 Bits, RS232 Or RS485
Product Size:
420*320*47 Mm
Package Size:
52*48*13 CM
Net Weight:
1934 G
Gross Weight:
5 Kg
Working Current:
≤450mA
Relative Humidity:
≤90%
Baud Rate:
9600, N, 8, 1
Card Type:
125 K More Copper Wire Type
Color:
Black
HS Code:
847160900
Supply Ability:
5000 Pcs per Month
Highlight:

Compact LF RFID Reader

,

IP65 LF RFID Reader

,

Waterproof LF RFID Reader

Product Description

LF RFID Reader for Security Systems IP65 and Extended Reading Range

    The LF RFID Reader for Security Systems is engineered for robust performance and reliability in demanding environments. With an IP65 rating, this reader is both dust-tight and water-resistant, making it suitable for outdoor use and harsh conditions. Its durable construction ensures long-lasting operation, providing peace of mind for security applications in commercial, industrial, and residential settings.

    One of the standout features of this LF RFID Reader is its extended reading range, which allows for effective scanning of RFID tags from greater distances. This capability enhances security measures by enabling quick and efficient access control without the need for close proximity to the reader. The reader is designed for easy integration into existing security systems, offering seamless connectivity and user-friendly operation.

    With its combination of durability, extended range, and reliable performance, the LF RFID Reader is an excellent choice for enhancing security protocols. Experience the benefits of advanced RFID technology that prioritizes safety and efficiency, ensuring optimal access management in any setting.



                                        access control reader






Features

  • 1. Solar Film Penetration (V-Kool40)
    • Capable of reading RFID cards inside vehicles with solar film applied, eliminating the need to roll down windows.
  • 2. Auto-Tuning Function
    • Adjusts automatically to compensate for metal and interference, ensuring stable performance in various environments.
  • 3. Extended Reading Range
    • Reading distance ranges from 90 cm to 130 cm, depending on on-site interference.
  • 4. Bright LED Indicators
    • Equipped with LED display bars and a buzzer for clear reading status indications.
  • 5. Firmware Upgradable
    • Allows field updates to the device’s firmware to maintain optimal performance.
  • 6. IP-65 Waterproof Housing
    • Provides protection against water ingress, ensuring reliable operation in rainy conditions without additional accessories.
  • 7. High-Quality Power Supply
    • Includes noise filtering to provide stable current and reduce external interference.
  • 8. Loop Detection Function (Optional):
    • Can be integrated with vehicle loop detectors to enhance system reliability and stability.
  • Anti-Rereading Function
    • Prevents the same card from being read multiple times within a short period, addressing interference issues between readers.

                                       rfid reader

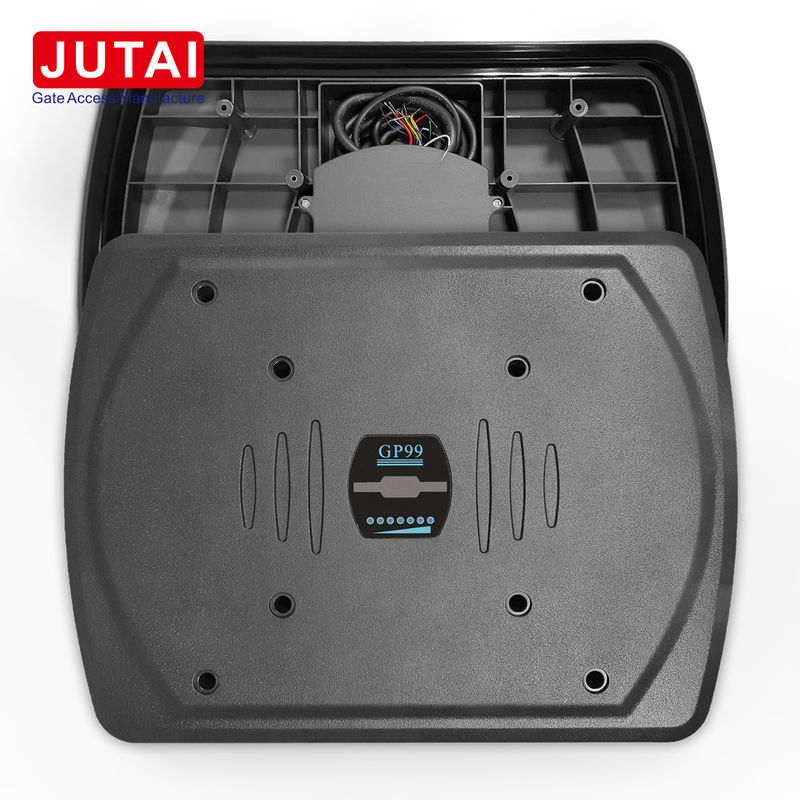

Wiring



Color Funtion

Red

12V(Connect to power supply)

Black

GND(Connect to power supply)

White-Green

Wiegand D0

Yellow

Wiegand D1

Blue

RS232-RXD

Gray

RS232-TXD

White-red

Read ID interval-A

Orange

Read ID interval-B

White

RS485-A

Brown

RS485-B

Purple

Reserve

Dark blue

Loop Detector(Connect to GND)

Red

Relay COM

White-Black

Relay N.O

Pink

Relay N.C

Black

GND




Applications

  • Access Control
    • Used in commercial buildings and residential areas to manage and secure entry and exit points.

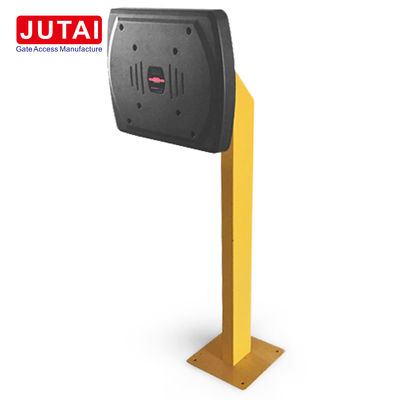

  • Parking Systems
    • Manages vehicle entry and exit at parking facilities, providing convenient access control.
  • Through-Wall Reading Applications
    • Reads cards without direct contact, suitable for specific environments.
  • Personal Identification
    • Ideal for scenarios requiring long-distance identity verification, such as large conferences or events.
  • Any Long-Range Reading Application
    • Suitable for various long-distance reading needs, such as warehouse management.
  • Hand-Free Applications
    • Enables convenient access without physically handling the card, enhancing user experience.



                                         Rfid reader
