Low Frequency Reader 125K
>
Anti Rereading 125khz Proximity Card Reader For Parking Management

Anti Rereading 125khz Proximity Card Reader For Parking Management

Brand Name: JUTAI
Model Number: GP99
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Audio / Visua Indication:
Bright Blue LED And Buzzer
Interfaces:
Wiegand 26 Or 34 Bits, RS232 Or RS485
Power Supply Input Voltage:
AC 120V / 60Hz Or 230V/50Hz
Housing Material:
ABS+PC, UV Protection
RFID Cards Accepted:
125kHz, 64 Bits, Manchester Encoding
Output Voltage:
DC 12V / 1A
IP Level:
IP 65
Reading Range:
130 Cm
Product Size:
420*320*47 Mm
Package Size:
52*48*13 CM
Net Weight:
1934 G
Gross Weight:
5 Kg
Working Current:
≤450mA
Relative Humidity:
≤90%
Baud Rate:
9600, N, 8, 1
Card Type:
125 K More Copper Wire Type
Color:
Black
HS Code:
847160900
Name:
Low Frequency Reader 125K
Supply Ability:
5000 Pcs per Month
Highlight:

125khz Proximity Card Reader

,

Anti Rereading 125KHz Proximity Reader

Product Description

125KHz Proximity Reader for Parking Management Anti Rereading Function RS485 RS232 Weigand Output

    The 125KHz Proximity Reader for Parking Management is expertly designed to enhance the efficiency and security of parking systems. Featuring advanced anti-rereading functionality, this reader ensures that each RFID tag is scanned only once per entry, preventing unauthorized access and improving overall security. Its versatility allows for seamless integration with various systems, making it an ideal choice for parking lots, garages, and gated communities.

    Equipped with multiple output options, including RS485, RS232, and Wiegand, the 125KHz Proximity Reader offers flexible connectivity to suit a variety of management systems. This adaptability ensures easy integration into existing infrastructure, promoting a streamlined installation process. The robust design is built to withstand outdoor conditions, ensuring reliable performance in all weather situations.

    This proximity reader enhances the parking experience by providing quick and accurate readings, facilitating smooth vehicle entry and exit. With its combination of advanced features and reliable performance, the 125KHz Proximity Reader is an excellent choice for modern parking management solutions, ensuring secure access and improved operational efficiency.







                                        access control reader






Features

  • 1. Solar Film Penetration (V-Kool40)
    • Capable of reading RFID cards inside vehicles with solar film applied, eliminating the need to roll down windows.
  • 2. Auto-Tuning Function
    • Adjusts automatically to compensate for metal and interference, ensuring stable performance in various environments.
  • 3. Extended Reading Range
    • Reading distance ranges from 90 cm to 130 cm, depending on on-site interference.
  • 4. Bright LED Indicators
    • Equipped with LED display bars and a buzzer for clear reading status indications.
  • 5. Firmware Upgradable
    • Allows field updates to the device’s firmware to maintain optimal performance.
  • 6. IP-65 Waterproof Housing
    • Provides protection against water ingress, ensuring reliable operation in rainy conditions without additional accessories.
  • 7. High-Quality Power Supply
    • Includes noise filtering to provide stable current and reduce external interference.
  • 8. Loop Detection Function (Optional):
    • Can be integrated with vehicle loop detectors to enhance system reliability and stability.
  • Anti-Rereading Function
    • Prevents the same card from being read multiple times within a short period, addressing interference issues between readers.

                                       rfid reader

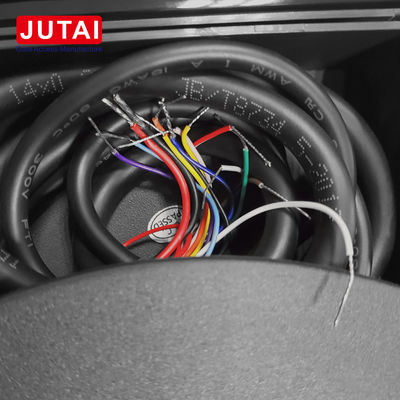

Wiring



Color Funtion

Red

12V(Connect to power supply)

Black

GND(Connect to power supply)

White-Green

Wiegand D0

Yellow

Wiegand D1

Blue

RS232-RXD

Gray

RS232-TXD

White-red

Read ID interval-A

Orange

Read ID interval-B

White

RS485-A

Brown

RS485-B

Purple

Reserve

Dark blue

Loop Detector(Connect to GND)

Red

Relay COM

White-Black

Relay N.O

Pink

Relay N.C

Black

GND




Applications

  • Access Control
    • Used in commercial buildings and residential areas to manage and secure entry and exit points.
  • Parking Systems
    • Manages vehicle entry and exit at parking facilities, providing convenient access control.
  • Through-Wall Reading Applications
    • Reads cards without direct contact, suitable for specific environments.
  • Personal Identification
    • Ideal for scenarios requiring long-distance identity verification, such as large conferences or events.
  • Any Long-Range Reading Application
    • Suitable for various long-distance reading needs, such as warehouse management.
  • Hand-Free Applications
    • Enables convenient access without physically handling the card, enhancing user experience.



                                         Rfid reader
