Mifare RFID Reader 13.56 MHZ
>

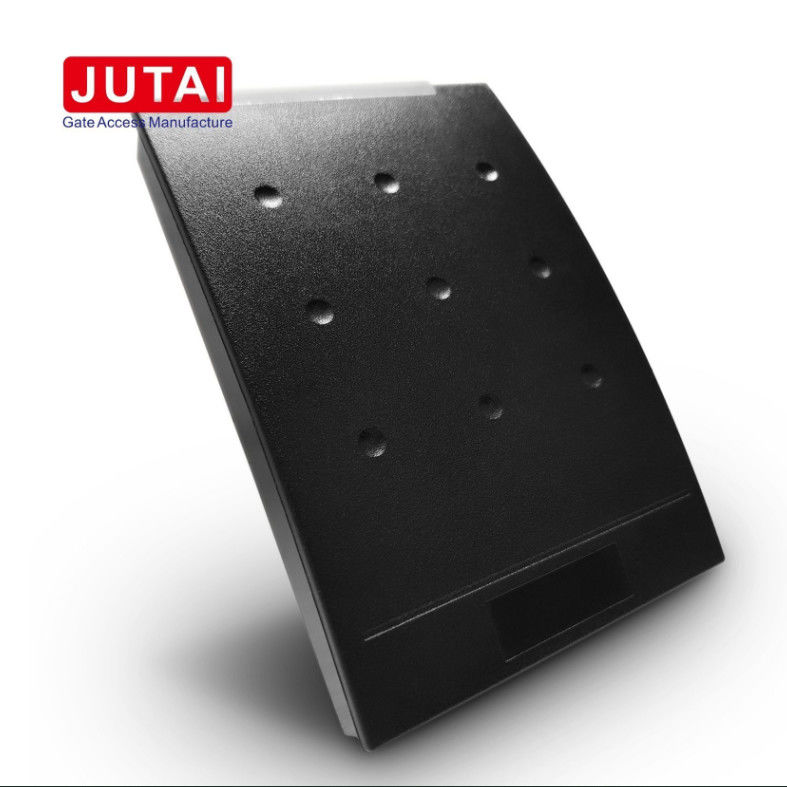

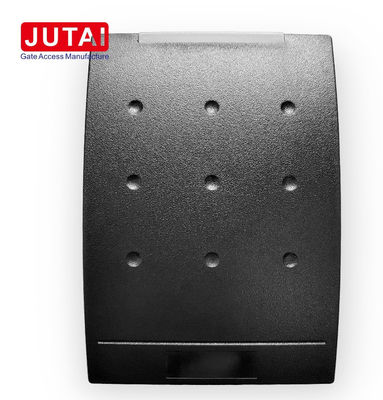

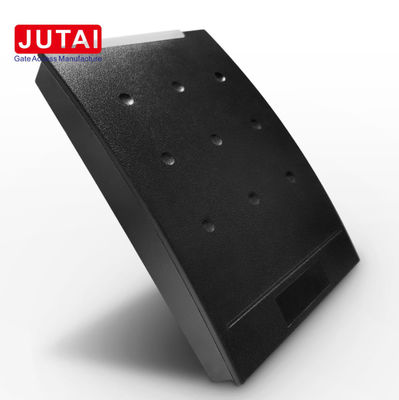

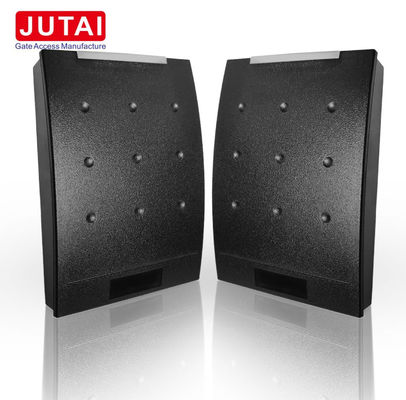

Fast Response 13.56 Mhz Contactless Smart Card Reader for Access Control

Fast Response 13.56 Mhz Contactless Smart Card Reader for Access Control

Brand Name: JUTAI
Model Number: MR-1
MOQ: Support 1-10 Pcs for Sample
Price: Negotiation
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Name:
Contactless Smart Card Reader
Product Size:
85*121*22 Mm
Gross Weight:
300 G
Receiving Sensitivity:
-90 DBm
Material:
ABS + PC
Power Supply:
DC 12 V / 3 A
Work Current:
≤100 MA
Baud Rate:
9600, N, 8, 1
Working Frequency:
13.56MHz
Relative Humidity:
≤90%
Reading Distance:
1-5 Cm
Work Current:
≤100mA
Package Size:
150*113*55 Mm
Net Weight:
220 G
Card Type:
Mifare Card
IP Rate:
IP 67
Data Output:
Wiegand
Reserved Wire:
RS 485
Supply Ability:
5000 Pcs per Month
Highlight:

13.56 Mhz Contactless Smart Card Reader

,

Access Control Contactless Smart Card Reader

,

Fast Response Contactless Smart Card Reader

Product Description

Contactless 13.56MHz Smart Card Reader for Access Control – Fast Response





    The Contactless 13.56MHz Smart Card Reader for Access Control is specifically designed to enhance security and streamline entry processes in various environments. With its fast response time, this reader enables quick and efficient identification of smart cards, ensuring smooth access for authorized users. The contactless technology allows individuals to gain entry without the need for physical contact, promoting a convenient and hygienic user experience.

    Built for durability and reliability, the 13.56MHz Smart Card Reader is suitable for both indoor and outdoor installations. Its robust design protects against environmental factors, ensuring consistent performance in any setting. The reader is easily integrated into existing access control systems, providing flexibility and compatibility with a range of security applications.

    With its advanced features and high-speed performance, the Contactless 13.56MHz Smart Card Reader enhances overall security measures while improving user accessibility. Ideal for use in corporate offices, educational institutions, and secure facilities, this reader is a reliable solution for modern access control needs. Experience the advantages of efficient and secure access management with this state-of-the-art smart card reader.



                                           mifare reader






Key Features



1. Compatibility

  • Card Types: Supports MIFARE Classic, MIFARE DESFire, MIFARE Ultralight, and other NFC-compliant cards.
  • Standard Compliance: Complies with ISO/IEC 14443 Type A and B standards.

2. Security

  • Encryption: Advanced encryption protocols to protect data transmission.
  • Authentication: Mutual authentication between card and reader to ensure secure access.
  • Data Integrity: Error detection mechanisms to ensure data integrity.

3. Interfaces

  • Wiegand Interface:
    • Standard Wiegand protocol (26-bit, 34-bit, etc.) for easy integration with access control systems.
    • Reliable and widely used in security and access control applications.
  • RS485 Interface:
    • Supports half-duplex communication for long-distance data transmission.
    • Capable of multi-drop configuration, allowing multiple devices to communicate on the same bus.
    • Suitable for industrial environments due to its robustness against electromagnetic interference.

4. Performance

  • Reading Range: Typically up to 5 cm (depending on card type and environmental conditions).
  • Reading Speed: Fast transaction times, typically within 100-200 milliseconds.
  • Operating Frequency: 13.56 MHz, ensuring compatibility with a wide range of contactless smart cards.

5. Form Factor and Installation

  • Form Factor: Compact and durable design suitable for various installations, including wall-mounted and desktop setups.
  • Housing: Often made with robust materials to withstand harsh environments and vandalism.

                                        13.56 mhz






Wiring



Color Name Description

Red

+12V

12V Power

Black

GND

Green

D0

(Wigand data O)output

Yellow

D1

(Wigand data 1)output

White

RS485-A

Function reservation

Brown

RS485-B






Applications

  • Access Control
    • Used in office buildings, residential complexes, and restricted areas to control entry and exit.
  • Public Transportation
    • Utilized in fare collection systems for buses, trains, and subways.
  • Event Management
    • Employed for ticketing and access at events like concerts and sports matches.
  • Retail and Loyalty Programs
    • Used in customer loyalty systems and cashless payment systems.
  • Identification and Authentication
    • Applied in ID cards and secure authentication systems.

                                      rfid reader
