UHF Long Range Reader
>

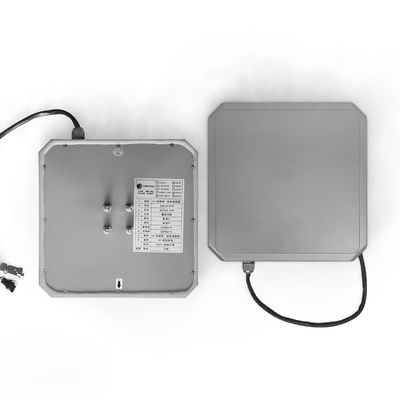

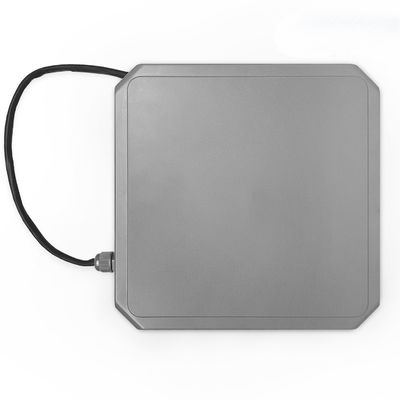

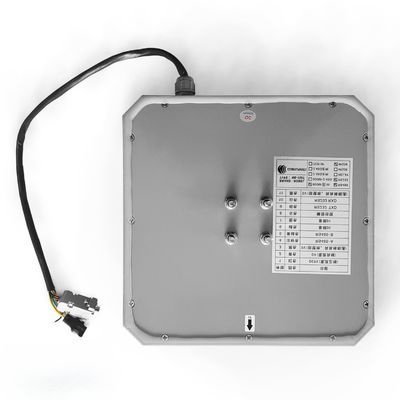

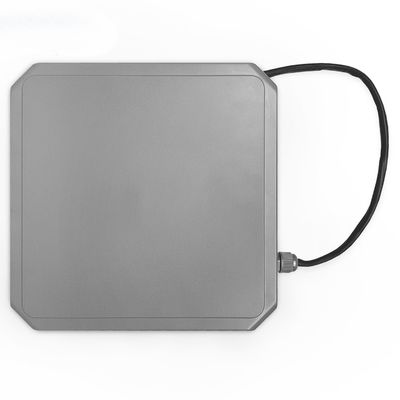

Parking Management UHF Long Range Reader Low Radiation Value DC9V-12V 3A OEM Service

Parking Management UHF Long Range Reader Low Radiation Value DC9V-12V 3A OEM Service

Brand Name: JUTAI
Model Number: PUHF-9
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay
Detail Information
Place of Origin:
China
Certification:
CE, FCC
Document:
Name:
UHF Long Range Reader
Power Supply:
DC9-12V,3A
Frequency Range:
860-868MHz、902~928MHz
Antenna:
Circular Polarization / Linear Polarization Directional
Max, Output Power:
30dbm (Adjustable)
Plug:
Two-pin Plug / Three-pin Plug
Protocol:
ISO 18000-6B / 6C (EPC GEN2)
Reading Distance:
1-9m (Depending On The Antenna)
Output Interface:
Wiegand 26 / 34 / RS232 / RS485
Working Temperature:
-25°C~+70°C
Installation:
U-shaped Pole
Waterproof:
IP65
Frequency Hopping Mode:
Fixed Frequency Band
Product Size:
255mm*255mm*42mm
Package Size:
405mm * 305mm * 105mm
Net Weight:
1230 G
Gross Weight:
2.5 Kg
Color:
Grey / White
HS Code:
8529101000
Service:
OEM
Power:
< 0.5 W
RF Power:
0-30dBm Adjustable
Supply Ability:
5000 Pcs per Month
Highlight:

UHF Long Range Reader DC9V

,

OEM UHF Long Range Reader

,

Parking Management Ultra High Frequency Reader

Product Description

UHF Long Range Reader for Parking Management 15 m detection Range and Low radiation value IP65 DC9-12V,3A

    The UHF Long Range Reader for Parking Management is engineered to deliver exceptional performance with a detection range of up to 15 meters, making it ideal for efficient vehicle access control in parking facilities. This reader significantly streamlines entry and exit processes, allowing for quick identification of RFID tags and reducing wait times for drivers.

    Designed with user safety in mind, this reader operates with low radiation values, ensuring minimal exposure to users and staff. Its IP65 rating guarantees robust protection against dust and water, making it suitable for outdoor installations in various weather conditions. This durability ensures long-lasting performance in high-traffic environments.

    Powered by a DC 9-12V, 3A supply, the UHF Long Range Reader is easy to install and integrate into existing parking management systems. Its reliable technology enhances security and efficiency, making it a perfect solution for commercial parking lots, residential complexes, and gated communities. Experience the advantages of advanced RFID technology with this long-range reader, designed to optimize parking management and improve user experience.







                                         UHF Long Range Reader






Key Feature



  • 1. Long range reading
    • The high quality UHF Reader has a powerful signal output capability to accurately read label data over longer distances, improving operational efficiency.
  • 2. Antenna independence
    • Most of the card readers on the market are integrated with the antenna, but this greatly increases the cost of maintenance and the difficulty of repair. JUTAI was dared to separate the UHF antenna and its control board from the card reader itself, greatly reducing repair cost and power dissipation.

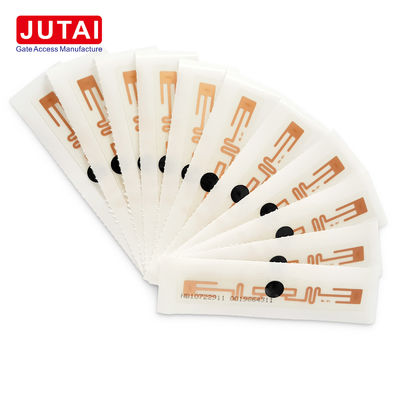

  • 3. It can perfectly work with UHF sticker/tag
    • It is more convenient to work with a serial of UHF stickers/tag. A ideal solution for hands-free vehicle access control system.
  • 4. UHF Frequency Setting
    • JUTAI's UHF passive readers can be set to different frequencies depending on the actual situation to meet the different needs of customers in various countries.
  • 5. Low radiation value
    • After rigorous testing, the radiation value of JUTAI's UHF reader is much lower than international standards, and can be used safely for human body.
  • 6. Block
    • Compared with the traditional plastic cover, the hard shell cover has the function of convenient maintenance and better protection of the product, no waste and no cost increase
  • 7. Loop detector function ( optional )
    • The vehicle can be managed by the pressure sensing function to reduce the malfunction and open the door. The JUTAI UHF long range card reader features a grounding capability for use with our vehicle loop detectors. For some special applications, you can connect to the ground loop detector. When the vehicle is pressed to the ground loop coil, the card can start working with the card reader, which makes the whole system highly reliable and safe.
  • 8. High-speed reading
    • Can quickly read multiple labels, reduce waiting time, improve work efficiency, especially suitable for high-traffic environment.
  • 9. Easy integration
    • Compatible with multiple protocols and systems to seamlessly integrate with existing infrastructure and reduce deployment costs.
  • 10. Multifunctional application
    • suitable for various application scenarios, including access control, logistics management, asset tracking and inventory management, etc., with a wide range of application prospects.



                                        long range reader

                                        UHF rfid reader






Wiring Diagram



Red

+9VDC

Pink

RS485-A

Black

GND

Yellow Green

RS485-B

Black

GND

Gray

Shortcut GND for trigger reader

Blue

WG-D1

Brown

Rs232 TXD

Green

WG D0

White

Rs232 RXD

Yellow

GND




Product Series



PUHF-9 PUHF-9P PUHF9-8/9R2P PU6C-9B PU6C-9BP

rfid reader1-9 m

Regluar Version



UHF reader

1-9 m

Encryption Version



UHF 1-9 m

High Level Encryption Version



UHF Card



Regular Version Used



UHF card



Encryption Version Used



PUHF-9-12P PUHF-9-12P PUHF12-8/9R2P PUHF-L1 PUHF-L1P

long range reader



1-12m

Regluar Version



UHF reader



1-12 m

Encryption Version



UHF reader



1-12 m

High Level Encryption



UHF tag



Regular Version Used



uhf reader



Encryption Version Used
