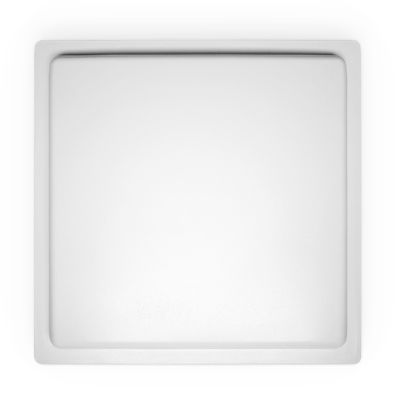

UHF Long Range Reader
>
Low Radiation Value UHF Long Range Reader 15m Detection Range For Parking Management

Low Radiation Value UHF Long Range Reader 15m Detection Range For Parking Management

Brand Name: JUTAI
Model Number: PUHF-9-12
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
Name:
UHF Long Range Reader
Reading Distance:
1-15m

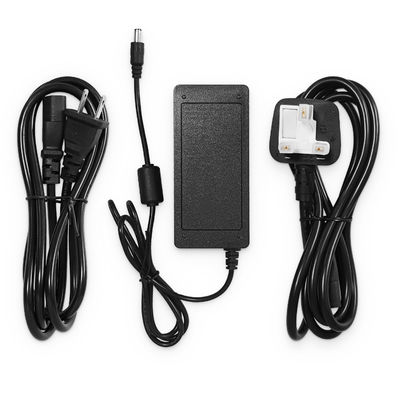

Power Supply:
Input 220V, Output 9V/3A
Frequency Range:
860-868MHz / 902-928MHz
Card Type1:
Is018000-6b / 6c(EPC Gen2)
Antenna:
12dB Antenna
Output Interferce:
Weigand 26/34
PC Interface:
RS232 / RS485
Working Temperature:
-25 - +70 ℃
Working Mode:
Loop Trigger / Continuous Mode
Size:
45*45*5 Cm
Net Weight:
3700 G
HS Code:
847170200
Gross Weight:
4200 G
Waterproof:
IP 65
Supply Ability:
5000 Pcs per Month
Highlight:

UHF Long Range Reader 15m

,

Parking Management UHF Long Range Reader

,

Parking Management Long Range UHF Reader

Product Description

15m Detection Range And Low Radiation Value UHF Long Range Reader For Parking Management IP 65


The UHF Long Range Reader for Parking Management is engineered to deliver outstanding performance with a detection range of up to 15 meters, making it ideal for efficient vehicle access control. This reader significantly enhances the entry and exit processes in parking facilities, allowing for swift identification of RFID tags and reducing wait times for drivers.

Designed with user safety in mind, this reader operates with low radiation values, ensuring minimal exposure for users and staff. Its IP65 rating guarantees robust protection against dust and water, making it suitable for outdoor installations in various weather conditions, ensuring reliable performance year-round.

This UHF Long Range Reader is easy to install and can seamlessly integrate into existing parking management systems, providing a flexible and effective solution for commercial lots, residential complexes, and gated communities. Experience the benefits of advanced RFID technology with this long-range reader, designed to optimize parking management and enhance user convenience while maintaining high security standards.

Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

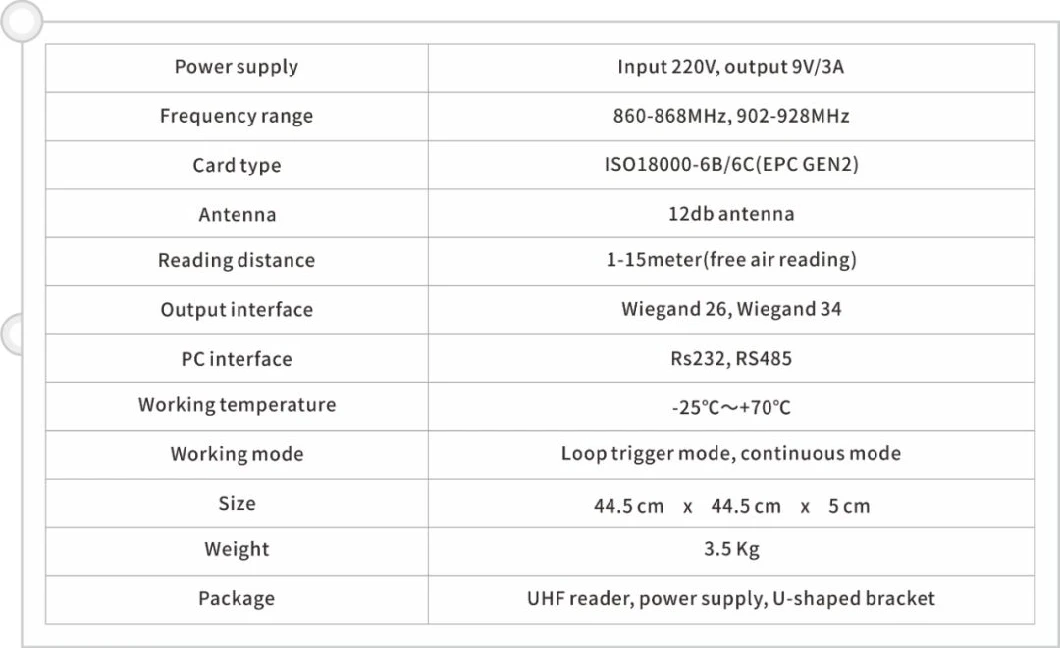

DataSheet Of Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

Due to its long transmission distance and high transmission rate, it has received more attention all over the world. The PUHF-9-12db developed by JUTAI adopts multi-protocol and integrated design, which can be quickly read, multi-tag simultaneous reading and widely used in RFID systems;
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader
The PUHF-9-12db card reader is mounted on a bracket and is equipped with a power supply. The housing is made of PET material and has an IP65 waterproof rating, which works perfectly in rainy days without additional accessories. In addition to the uhf card, it can also be used with various uhf passive tags, so that the customer does not need to open the window in the rain, and the long range tag is attached to the windshield. After the tag enters the magnetic field, the UHF receives the RF signal from the card reader. The energy obtained by the induced current sends out the tag information (passive tag) stored in the chip. It is an ideal solution for applications such as parking lot access management, personnel management, and warehouse management.
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

Advantages of Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader


Long Range Reading Distance;
The Integrated JUTAI UHF Reader with Wiegand (PUHF-9-12) has very special and important design requirements. At the same time, due to the complexity of the project site, the exact adhesive position of RFID passive tag, which requires the antenna to have a simple and stable structure and wide reading range. JUTAI 12db UHF antenna has a wide reading range. The coverage area is large and can reach 1-15 meters (free air reading).

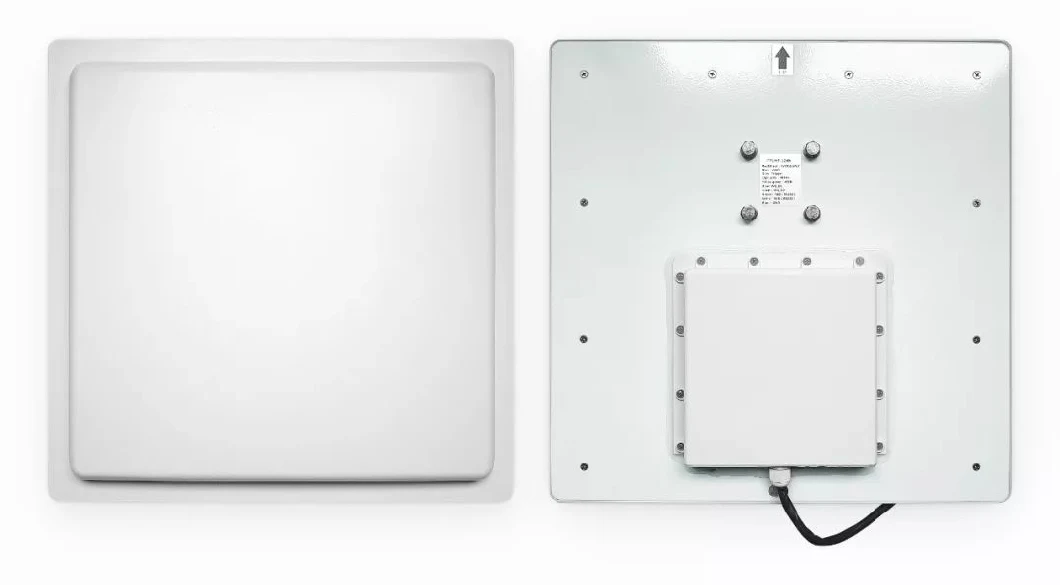

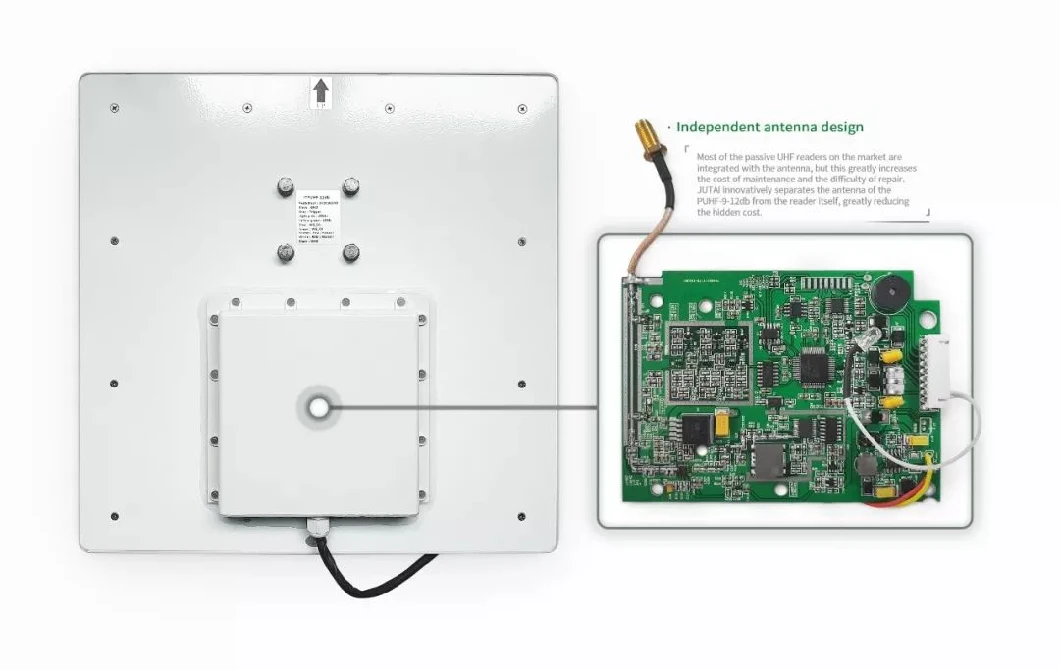

Independent antenna design
JUTAI UHF antenna of the PUHF-9-12db and inside electronic pannel, all are in one unit,not seperately and which greatly reducing the hidden cost and installation cost also ;

Adjustable frequency
JUTAI's PUHF-9-12db read head integrates 860~868MHz and 902~928MHz operating frequency, supports multi-national frequency band, frequency selection, can be adjusted according to different countries and regions: 865-868mhz (EU), 902-928mhz (USA ), 865-867nhz (India). PUHF-9-12db is suitable for all countries and meets international RF standards, so customers can use it with confidence.
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

Working With JUTAI High security UHF sticker/tag / printable card
1.PU6C-9B UHF Single Frequency Card ;
2.PUHF-L1 waterproof anti-Sparkle car light UHF sticker / windshield tag
3.PUHF-L2 waterproof UHF tag (can be fixed to the license plate)
4.CU-96 dual-frequency card (UHF+13.56MHz), can work with PUHF-9A-12db long distance, can also work with Mifare reader, low-cost one card access control solution.(UHF+13.56MHz),

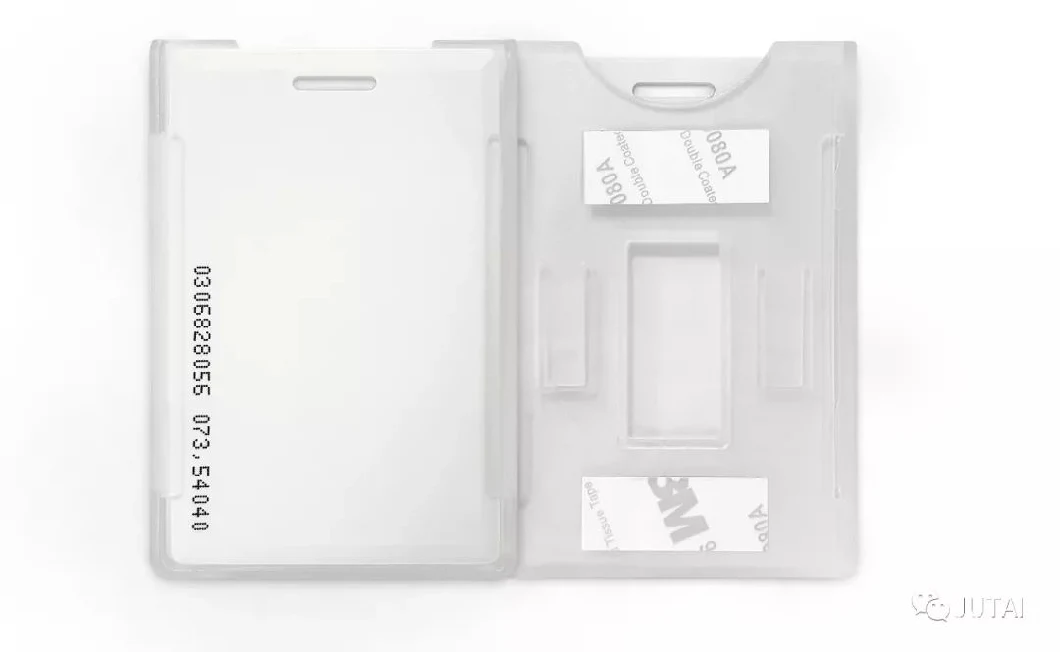

5.CS-56 card holder can be used to attach the card to the windshield or other position, making it difficult to lose the card and total hands-free access and exit.

Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader
Choosing JUTAI UHF card reader and all kinds of stickers and cards, it is more secure and JUTAI UHF is written into a special program, which is different from the conventional procedures on the market, so that customers can use our products more safely and reliably.
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

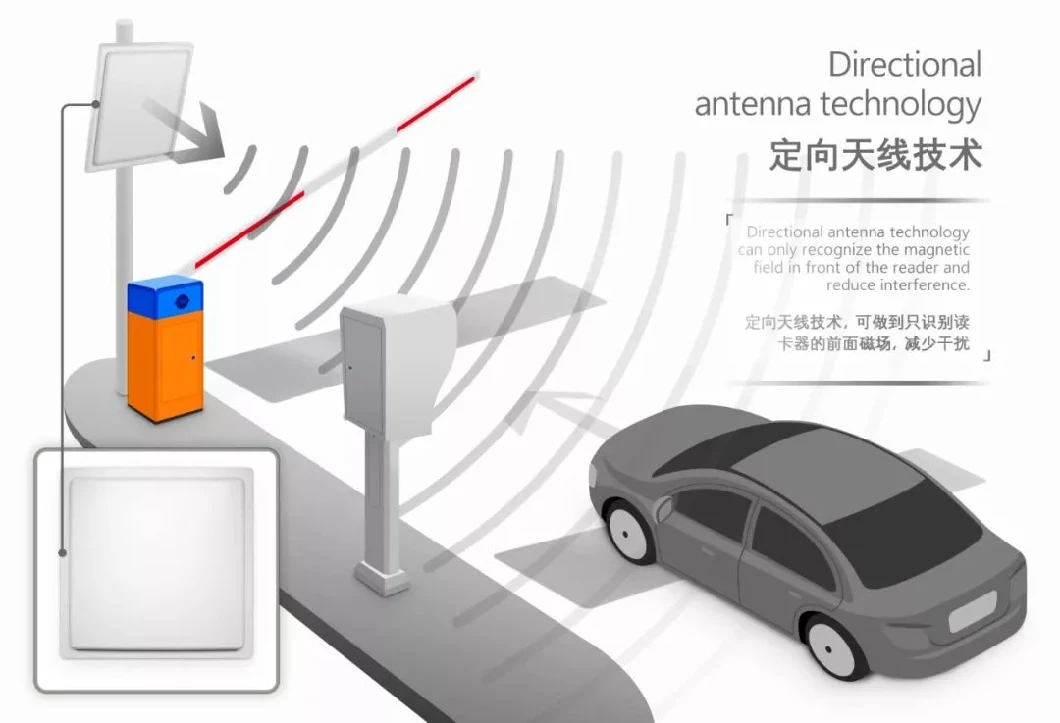

Directional Antenna Technology
Directional antenna technology can only recognize the magnetic field in front of the reader and reduce interference.
Comply With international environmental standards
JUTAI's UHF readers control the power below 0.5W, comply with international environmental standards, can be used in various countries, and is safe for human body.
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader
Wiegand Interface
The UHF UHF with Wiegand 26 or Wiegand 34 interface allows customers to directly integrate with existing access control systems;
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

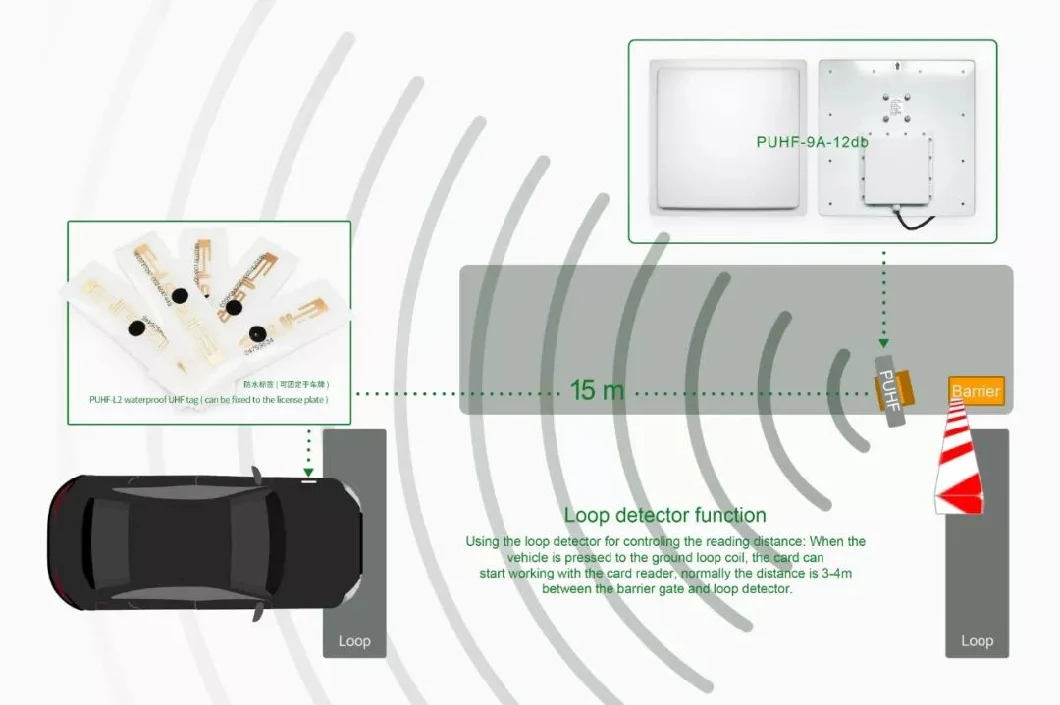

Loop Detector Function (optional)

The JUTAI UHF Long range reader can work with our vehicle loop detectors. For some project site applications, the use of the loop sense of ground (control card reading distance) function to manage only the vehicle, can reduce the error operation, when the vehicle is pressed to the ground coil, the card can start working with the card reader, which can The entire system is highly reliable and secure.
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

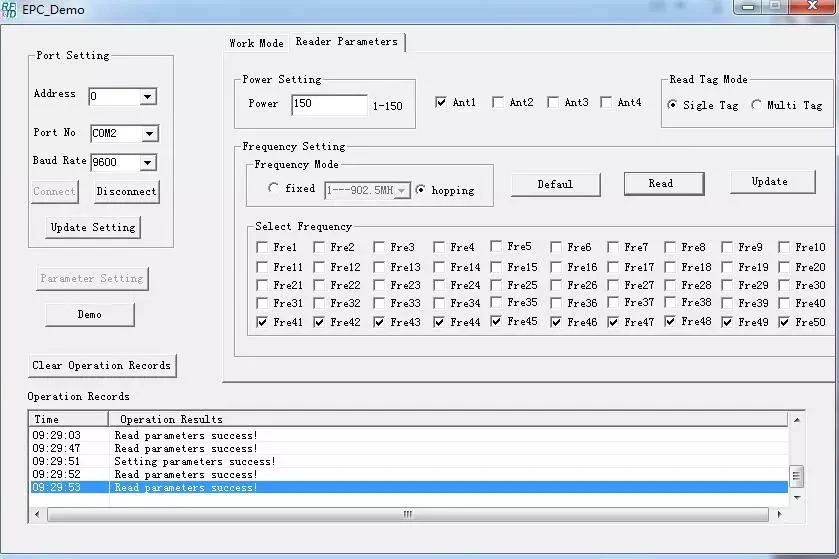

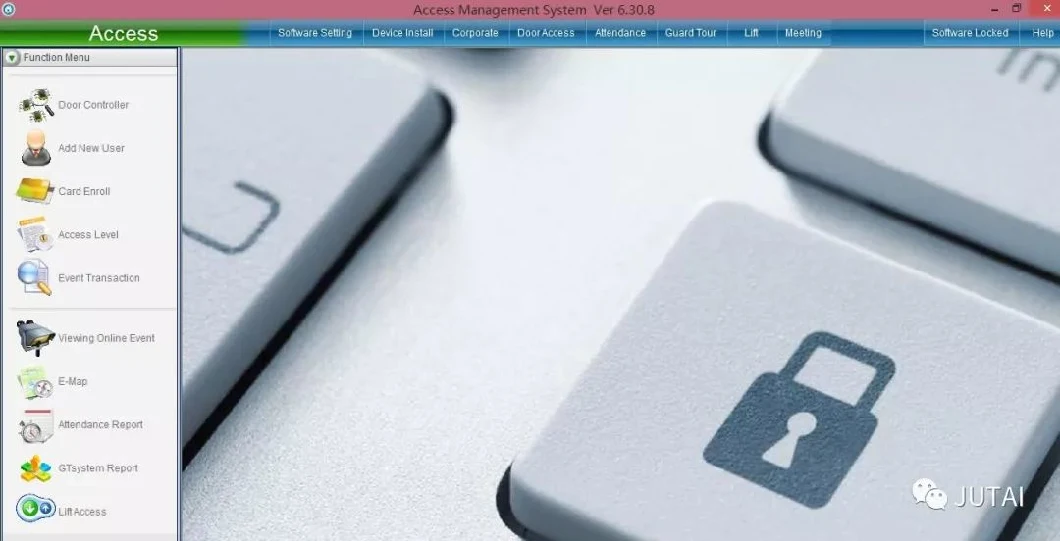

Software of Collecting UHF Card ID

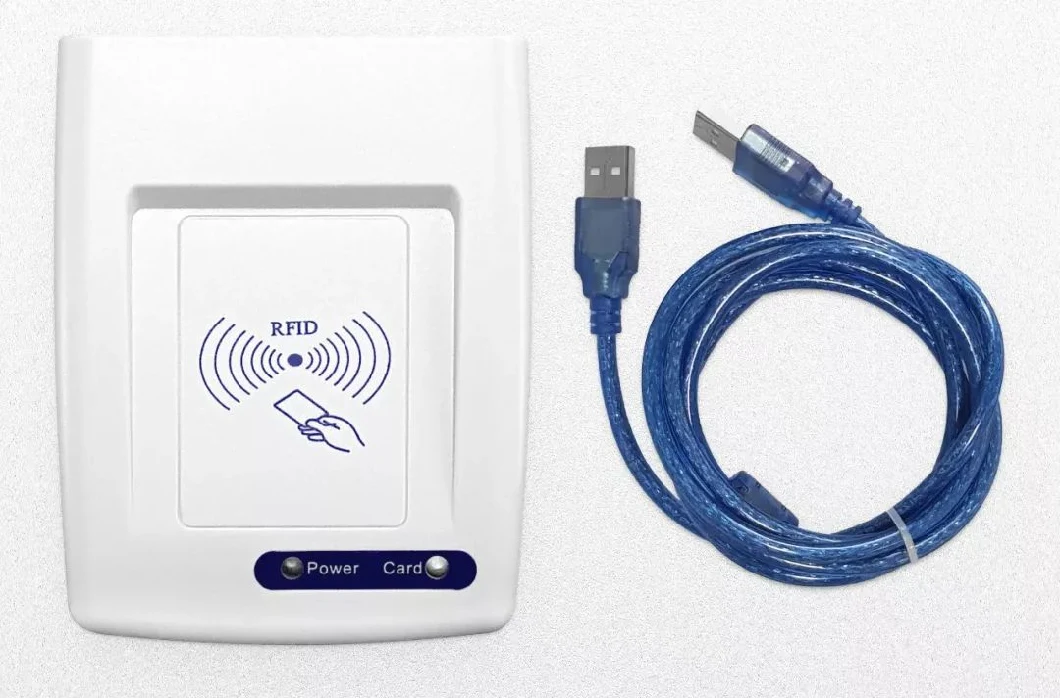

DT-9 desktop card issuer reader, through the connection of USB cable to the computer, the software developed by jutai can read UHF tags/card EPC information and automatically read its Wiegand data, so that customers can manage a large number of tags/cards.

Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID ReaderIP65 Waterproof Rating
Our card readers are IP56 rated for perfect work in rainy days, saving you money without the need for extra accessories.

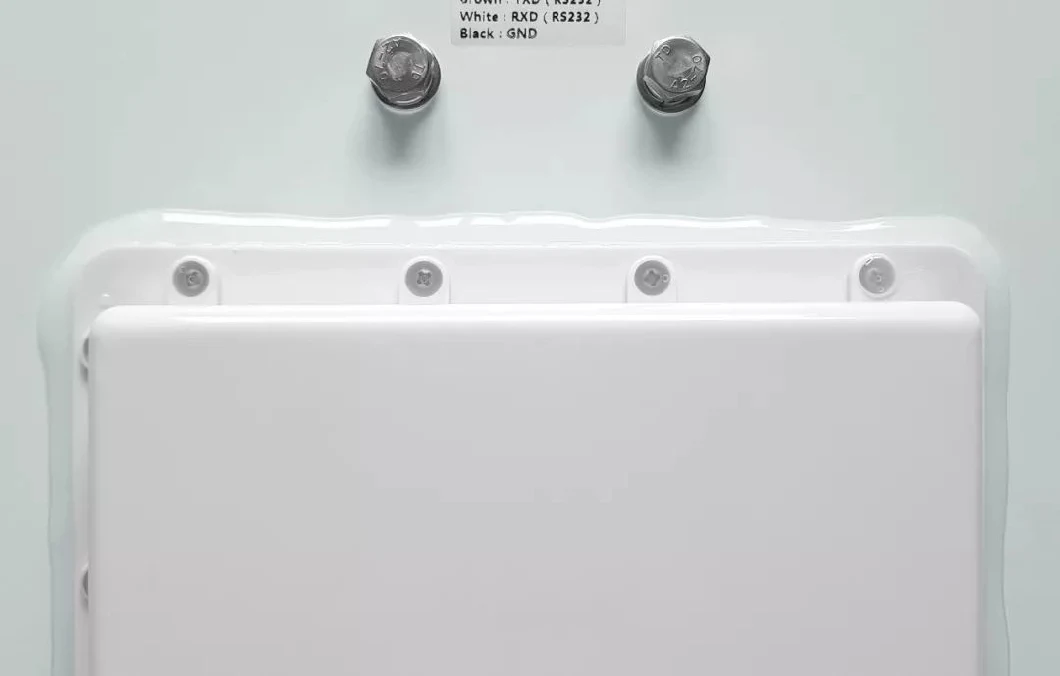

Cover
With hard-shell cover, it has the function of convenient maintenance and better protection of products compared with the traditional rubber cover mode, without waste, without increasing cost, and the hot-melt adhesive edge seal makes it more firm and waterproof.
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader



Wiring Diagram:

Red DC+9~12V Blue WG D1
Light Pink RS485A+ Brown TXD---(RS232)
Black 0V Green WG D0
Yellow Green RS485B- White RXD ---(RS232)
Black 0V Ground Yellow Short cut to loop signal







Packaging
Strict packaging is to ensure that the product can reach the customer in perfect condition and work effectively.
Anti-static pearl cotton + bubble pad + anti-static bag + carton
Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader






Product Series



PUHF-9 PUHF-9P PUHF9-8/9R2P PU6C-9B PU6C-9BP

rfid reader1-9 m

Regluar Version



UHF reader

1-9 m

Encryption Version



UHF 1-9 m

High Level Encryption Version



UHF Card



Regular Version Used



UHF card



Encryption Version Used



PUHF-9-12P PUHF-9-12P PUHF12-8/9R2P PUHF-L1 PUHF-L1P

long range reader



1-12m

Regluar Version



UHF reader



1-12 m

Encryption Version



UHF reader



1-12 m

High Level Encryption



UHF tag



Regular Version Used



uhf reader



Encryption Version Used
