| Brand Name: | JUTAI |
| Model Number: | IS-30R |
| MOQ: | Support 1-10 pcs for sample |
| Price: | Negotiation |
| Packaging Details: | 50 pcs / 1 cartoon |
| Payment Terms: | L/C, T/T, Western Union |

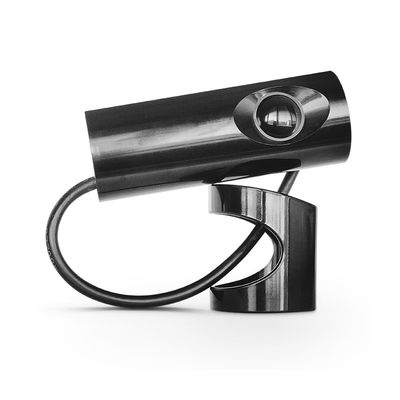

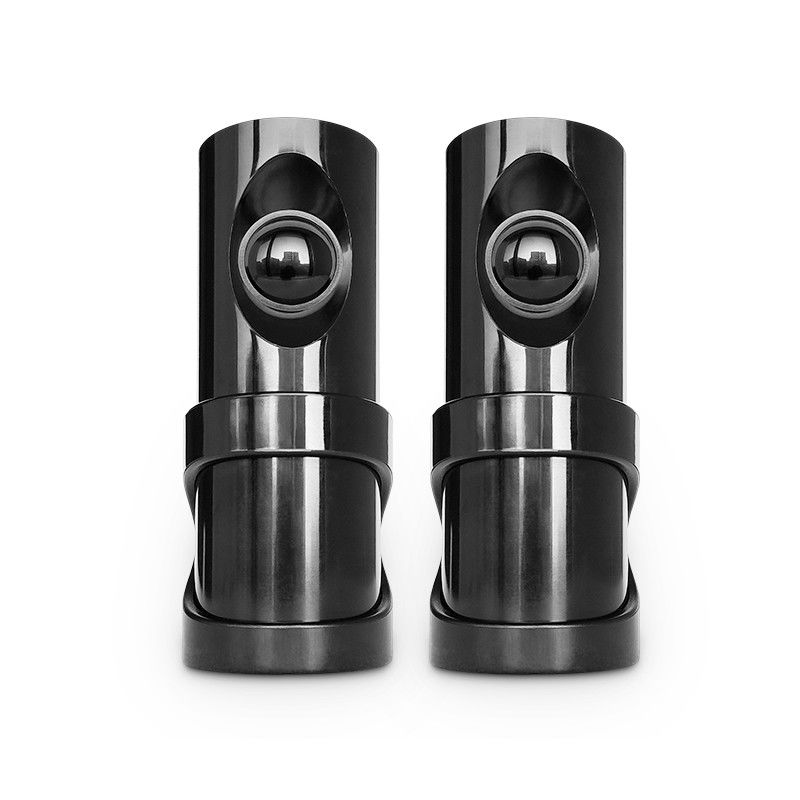

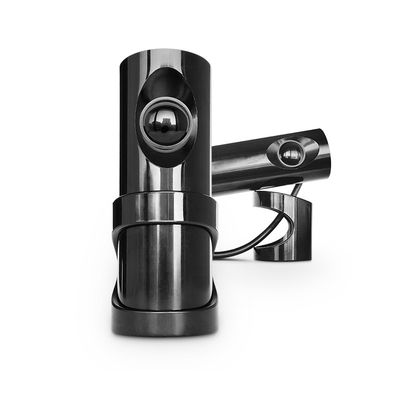

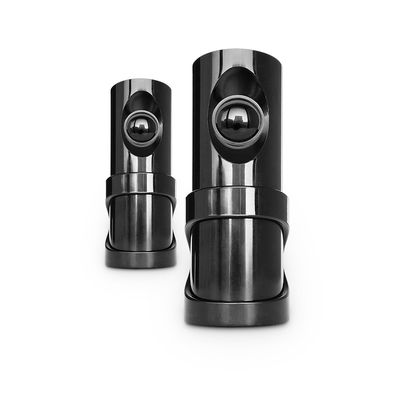

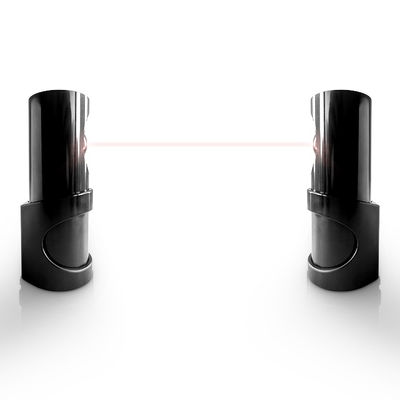

IS-30R Infrared Photocell Sensor external rotation infrared gate safety beam with a wireless transmitter and there’s no need to tunnel under the driveway, With external rotation 180 degree, Simply rotational align, More convenient and safe for door automation!
1.With external rotation 180 degree - Simply rotational align,easy installation, save labor installation cost.
2. The transmitter is wireless and battery-operated saving time and money.
3. 30 meters operating range – ideal for almost any entrance gate.
4. Fully ant-proof and weather-resistant enclosure for greater reliability.
5. Transmitter provides audible feedback for easy setup and battery-low indication.
6. Low power consumption throughout the system for greater efficiency.
7. Compatible with Intruder-detection Alarms for enhanced perimeter security.
8. Quick, easy installation with built-in laser beam alignment system.
1.180 degree external rotation align
IS-30R most outstanding feature is 180 degree external rotation, you can only adjust it with 180 degree, easy installation and more convenient for some special project sites.
2.Low power consumption
The wireless transmitter photocell requires only two AA batteries (not included in the kit) two years of reliable operation. Low current-draw throughout the system means greater efficiency and a longer battery life, so you’ll have reliable automated gate safety for years to come.
3.Highly cost-effective
One can’t put a price on safety - but you’ll be happy to know that IS-30R rational photocell sensor deliver a highly cost-effective detection solution. With these photocells installed, your gate won’t break your car and it won’t break the bank either!
4.Compatible with any brand gate operator
The IS-30R photocell beam sensors are compatible with supply voltages from 12V to 30V DC. These versatile beams can be used on almost any gate or access automation equipment found in the market.
5.Long-distance performer
Our wireless safety photocells with a 30 metre operating range, IS-30Ris suitable for even very wide entrances. No matter how big the entrance, IS-30R is an ideal for virtually any entrance gate.
6. Fully weatherproof enclosure
IS-30R Infrared Photocell Sensor fully weatherproof enclosure ensures that the electronics will never bear the brunt of the weather.
7. Suitable for universal installations.
Automatic sliding gate, swing gate, garage door, pedestrian door, industrial door, Boom Gates, Alarm System, warehouse monitoring etc. Anti-theft of automatic gate translation door switch induction signal/door, windows. No more cutting driveways to run cables required, perfect to retro fit on existing installations.
8. Flexible business model
We are very willing to help our customers to develop their own brand and assist customers in their local marketing. And not only wireless photocell sensor, we will further develop a series of high-quality products around the automatic door and villa security solutions. And to help customers promote at local marketing and form customer's own brand ,help our create more and more benefits, growing up together.
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
|
Specified Operating Distance |
30m |
| Alignment | Automatic – 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90° Non-condensing |
| Degree of Protection | Ip66 |
| Housing Material | PC(UV) |
| Size | 113*46.79*47.72mm |
The solar panel collects light energy, and the energy is stored in the battery through the controller. The battery supplies power to the IS-30R wireless infrared sensor receiving end and the wireless transmitter, and the wireless infrared transmitting end is powered by the AA battery. When the wireless infrared sensor detects someone passing, The information will be transmitted to the wireless receiving end, and the signal will be transmitted by the wireless transmitter. The wireless receiver transmits the corresponding signal to the alarm host, and the whole system does not need to damage the road surface, and does not need to be laid cable, safe and convenient.
The minimum distance is 50cm if the RX and Tx of 2 pair photo sensor with 10m detection distance.
1. Align the two holes in the case andlock two screws
2. Put the battery inside ( transmitter ) ,hread the cable out ( receiver )
3. Fix the screw
4. Rotate the angle as required , andfinally fix the bottom screw
Residentrial alarm application
Gate automation application (swiming gate, sliding gate,garage door)
Barrier gate application
|
| Brand Name: | JUTAI |
| Model Number: | IS-30R |
| MOQ: | Support 1-10 pcs for sample |
| Price: | Negotiation |
| Packaging Details: | 50 pcs / 1 cartoon |
| Payment Terms: | L/C, T/T, Western Union |
IS-30R Infrared Photocell Sensor external rotation infrared gate safety beam with a wireless transmitter and there’s no need to tunnel under the driveway, With external rotation 180 degree, Simply rotational align, More convenient and safe for door automation!
1.With external rotation 180 degree - Simply rotational align,easy installation, save labor installation cost.
2. The transmitter is wireless and battery-operated saving time and money.
3. 30 meters operating range – ideal for almost any entrance gate.
4. Fully ant-proof and weather-resistant enclosure for greater reliability.
5. Transmitter provides audible feedback for easy setup and battery-low indication.
6. Low power consumption throughout the system for greater efficiency.
7. Compatible with Intruder-detection Alarms for enhanced perimeter security.
8. Quick, easy installation with built-in laser beam alignment system.
1.180 degree external rotation align
IS-30R most outstanding feature is 180 degree external rotation, you can only adjust it with 180 degree, easy installation and more convenient for some special project sites.
2.Low power consumption
The wireless transmitter photocell requires only two AA batteries (not included in the kit) two years of reliable operation. Low current-draw throughout the system means greater efficiency and a longer battery life, so you’ll have reliable automated gate safety for years to come.
3.Highly cost-effective
One can’t put a price on safety - but you’ll be happy to know that IS-30R rational photocell sensor deliver a highly cost-effective detection solution. With these photocells installed, your gate won’t break your car and it won’t break the bank either!
4.Compatible with any brand gate operator
The IS-30R photocell beam sensors are compatible with supply voltages from 12V to 30V DC. These versatile beams can be used on almost any gate or access automation equipment found in the market.
5.Long-distance performer
Our wireless safety photocells with a 30 metre operating range, IS-30Ris suitable for even very wide entrances. No matter how big the entrance, IS-30R is an ideal for virtually any entrance gate.
6. Fully weatherproof enclosure
IS-30R Infrared Photocell Sensor fully weatherproof enclosure ensures that the electronics will never bear the brunt of the weather.
7. Suitable for universal installations.
Automatic sliding gate, swing gate, garage door, pedestrian door, industrial door, Boom Gates, Alarm System, warehouse monitoring etc. Anti-theft of automatic gate translation door switch induction signal/door, windows. No more cutting driveways to run cables required, perfect to retro fit on existing installations.
8. Flexible business model
We are very willing to help our customers to develop their own brand and assist customers in their local marketing. And not only wireless photocell sensor, we will further develop a series of high-quality products around the automatic door and villa security solutions. And to help customers promote at local marketing and form customer's own brand ,help our create more and more benefits, growing up together.
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
|
Specified Operating Distance |
30m |
| Alignment | Automatic – 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90° Non-condensing |
| Degree of Protection | Ip66 |
| Housing Material | PC(UV) |
| Size | 113*46.79*47.72mm |
The solar panel collects light energy, and the energy is stored in the battery through the controller. The battery supplies power to the IS-30R wireless infrared sensor receiving end and the wireless transmitter, and the wireless infrared transmitting end is powered by the AA battery. When the wireless infrared sensor detects someone passing, The information will be transmitted to the wireless receiving end, and the signal will be transmitted by the wireless transmitter. The wireless receiver transmits the corresponding signal to the alarm host, and the whole system does not need to damage the road surface, and does not need to be laid cable, safe and convenient.
The minimum distance is 50cm if the RX and Tx of 2 pair photo sensor with 10m detection distance.
1. Align the two holes in the case andlock two screws
2. Put the battery inside ( transmitter ) ,hread the cable out ( receiver )
3. Fix the screw
4. Rotate the angle as required , andfinally fix the bottom screw
Residentrial alarm application
Gate automation application (swiming gate, sliding gate,garage door)
Barrier gate application
