Infrared Photocell Sensor
>

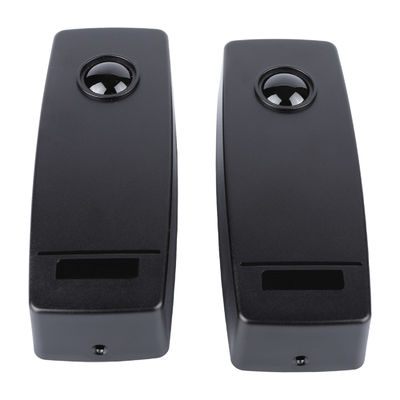

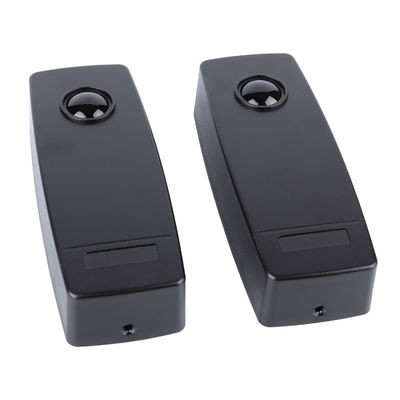

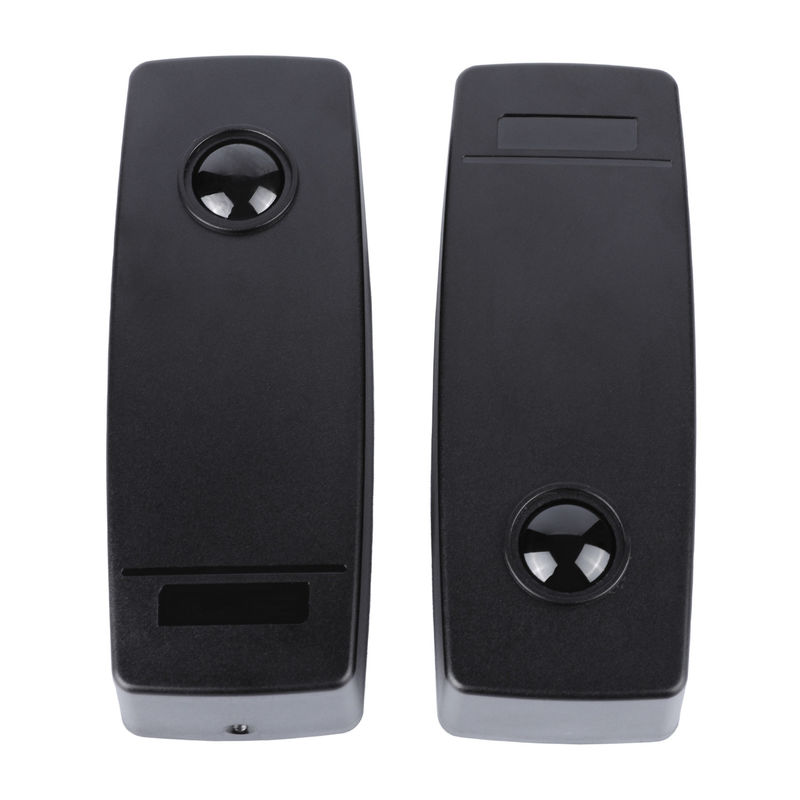

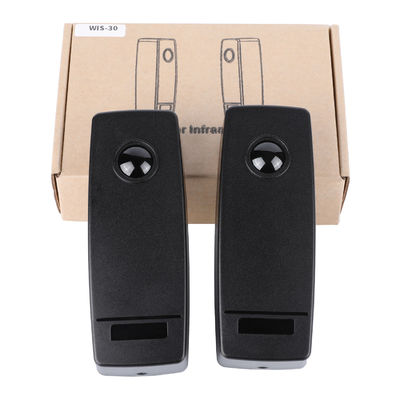

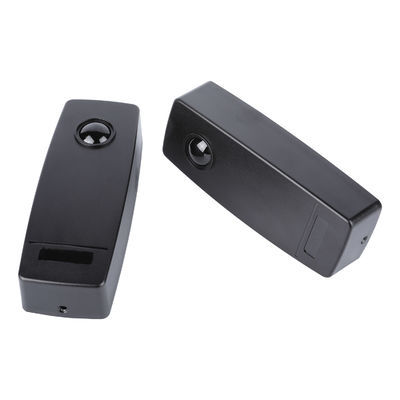

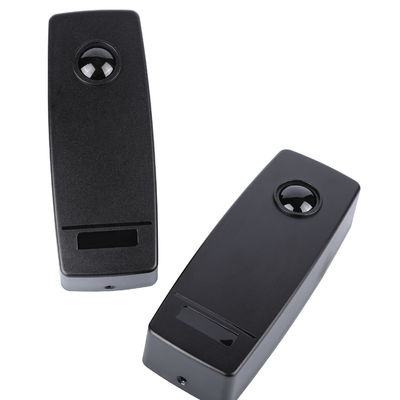

WIS-30 Waterproof IP65 Wireless Infrared Sensor / Safety Outdoor Infrared Sensor

WIS-30 Waterproof IP65 Wireless Infrared Sensor / Safety Outdoor Infrared Sensor

Brand Name: JUTAI
Model Number: WIS-30
MOQ: Support 1-10 Set for Sample
Price: Negotiation
Packaging Details: 1 Pcs 1 Carton
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
Name:
Outdoor Infrared Sensor
Power Supply Transmitter:
2 X AA Alkaline Batteries (Supplied) Only Replace
Receiver:
12 - 24V AC 12 - 30V DC
Receiver Power Consumption:
30mA @ 12V DC
Transmitter Battery Life:
Minimum 2 Years
Battery Low Indication:
Audible Beep
Specified Operating Distance:
30 M
Output Contact:
Fail-Safe, N/C And N/O, Potential Free Contact
Output Contact Rating:
3A @ 30V DC Non-Inductive
Operating Temperature:
-20°c - +60°c
Operating Humidity:
0 - 90° Non-Condensing
Degree Of Protection:
IP65 With Rubber
Housing Material:
PC(UV)
Size:
51(L)*135(W)* 32(H)mm
Alignment:
Automatic – 1m²
Application:
Barrier Gates
Supply Ability:
5000 Pcs per Month
Highlight:

Waterproof Wireless Infrared Sensor

,

IP65 Wireless Infrared Sensor

,

Safety Outdoor Infrared Sensor

Product Description

WIS-30 Waterproof Wireless Infrared Sensors – Perfect for Outdoor Use IP 65



WIS-30 Infrared gate safety beams with a wireless transmitter and it makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter, there’s no need to tunnel under the driveway. Simply align, More convenient and safe for door automation!

Infrared gate safety beams with wireless technology

Infrared Gate Safety Beams Main features:

  1. The transmitter is wireless and battery-operated saving time and money.
  2. 30 meters operating range – ideal for almost any entrance gate.
  3. Fully ant-proof and weather-resistant enclosure for greater reliability.
  4. Transmitter provides audible feedback for easy setup and battery-low indication.
  5. Low power consumption throughout the system for greater efficiency.
  6. Compatible with Intruder-detection Alarms for enhanced perimeter security.
  7. Quick, easy installation with built-in laser beam alignment system.

infrared gate safety beams

WIS-30 Wireless Infrared Sensor Specification

WIS-30 photocells specification



Why choose our WIS-30 infrared gate sensors?

1. Low power consumption.

The wireless transmitter photocell requires only two AA batteries (not included in the kit) two years of reliable operation. Low current-draw throughout the system means greater efficiency and longer battery life, so you’ll have reliable automated gate safety for years to come.

2. Highly cost-effective.

One can’t put a price on safety - but you’ll be happy to know that WIS-30 photocells deliver a highly cost-effective detection solution. With these photocells installed, your gate won’t break your car and it won’t break the bank either!

3. The WIS-30 photocells are compatible with supply voltages from 12V to 30V DC. These versatile beams can be used on almost any gate or access automation equipment found in the market.

4. Long-distance performance

Our wireless safety photocells with a 30 meter operating range, WIS-30 is suitable for even very wide entrances. No matter how big the entrance, WIS-30 is ideal for virtually any entrance gate.

5. Fully weatherproof enclosure

WIS-30 photocells fully weatherproof enclosure ensures that the electronics will never bear the brunt of the weather

photocell beam sensor waterproof

6. Suitable for universal installations.

Automatic sliding gate, swing gate, garage door, pedestrian door, industrial door, Boom Gates, Alarm System, warehouse monitoring, etc. No more cutting driveways to run cables required, perfect to retrofit on existing installations.

7. Flexible business model

We are very willing to help our customers to develop their own brand and assist customers in their local marketing. And not only Infrared gate safety beams, but we will also further develop a series of high-quality products around the automatic door and villa security solutions. And to help customers promote local marketing and form customer's own brand, help our create more and more benefits, growing up together.



Installation Reference For Gate Automation System Application

gate automation system

gate automation photocells

photocells intallation



WIS-30 Photocells Size

WIS-30 photocell size

WIS-30 Photocell Detection Angle

When the infrared transmitter and the receiver are on the 180 horizontal lines. the infrared diode detecting angle does not exceed 5 degrees up and down, as the following picture.

Photocell detection angle

Two Pairs Photocell Anti-minimum interference distance

The minimum distance is 50cm if the RX and TX of 2 pair photosensor with 10m detection distance.

intsall two pairs photosensor

Solution Reference Combined With Solar Energy System

The solar panel collects light energy, and the energy is stored in the battery through the controller. The battery supplies power to WIS-30 wireless infrared receiver and the transmitter, and the wireless infrared transmitter is powered by the AA battery. When the wireless infrared sensor detects someone passing. The information will be transmitted to the wireless reciver. and the signal will be transmitted by the wireless transmitter. The wireless receiver transmits the corresponding signal to the alarm host. and the whole system does not need to damage the road surface. and does not need to be laid cable, safe and convenient.

phptocell alarm system
