Infrared Photocell Sensor
>

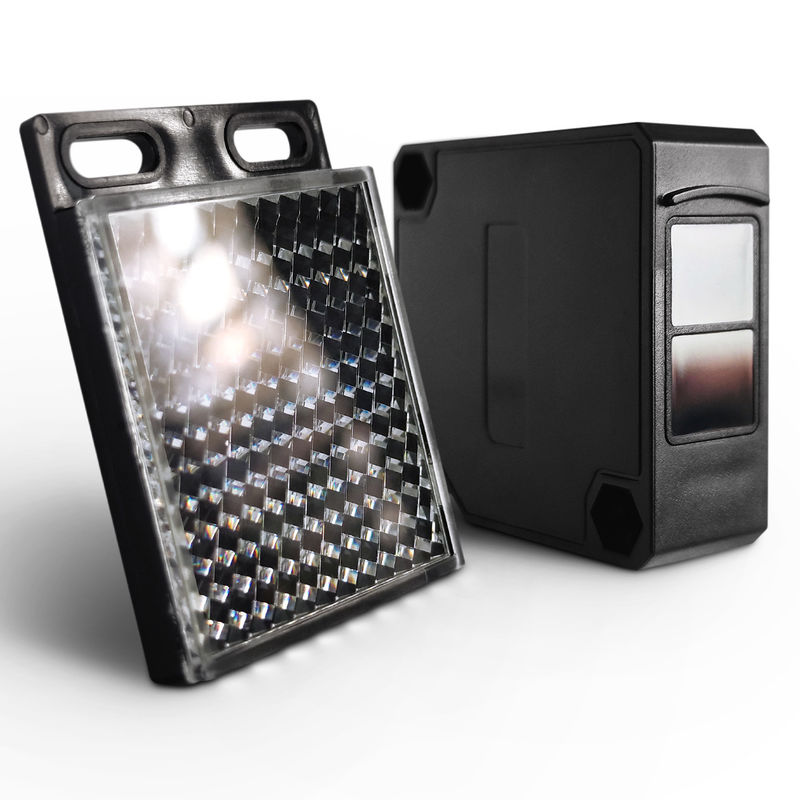

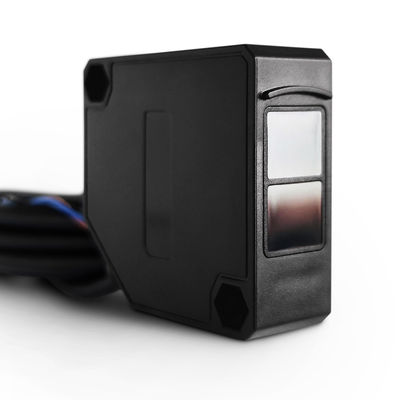

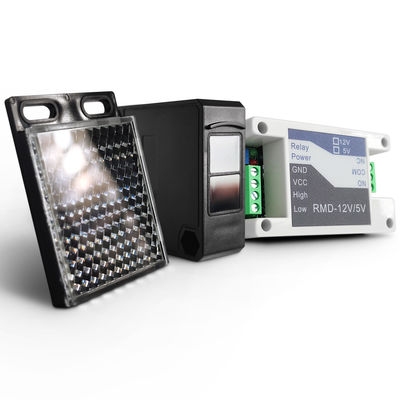

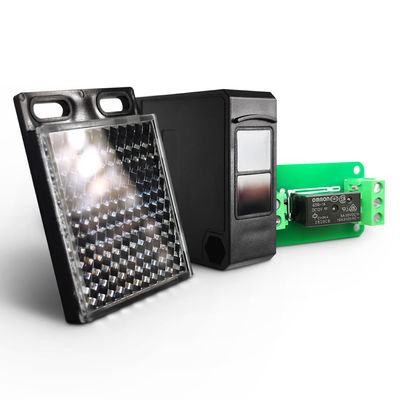

IRR-7R Reliable Infrared Reflective Sensor / Retro Reflective Sensor With Relay Output

IRR-7R Reliable Infrared Reflective Sensor / Retro Reflective Sensor With Relay Output

Brand Name: JUTAI
Model Number: IRR-7R
MOQ: Support 1-10 pcs for sample
Price: Negotiation
Packaging Details: 50 pcs / 1 cartoon
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
Name:
Infrared Reflective Sensor
Sensing Mode:
Retro-reflective
Sensing Distance:
7 M
Sensing Object:
Opaque Object,min Y75mm
Standard Target:

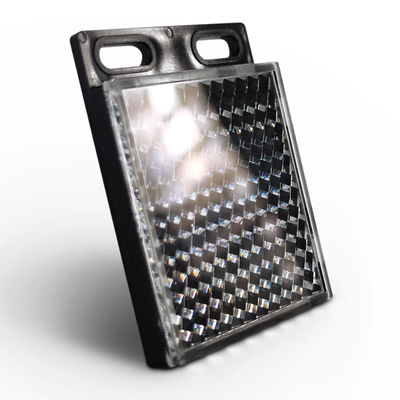

Reflector
Response Time:
≤3 Ms
Sroduct Sizege:
DC12-24V(10-30V DC)/ripple(p-p):10% Max
Output Type:

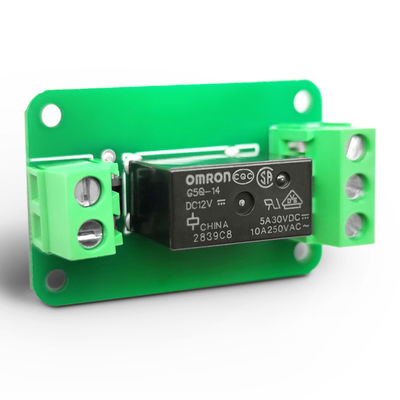

Relay Output
Output Status:
N.O
Consumption:
≤20 MA
Load Current:
200 MA
Voltage Drop(V,):
≤1.8V(200mA)
Supply Ability:
5000 pcs per month
Highlight:

IRR-7R Infrared Reflective Sensor

,

Retro Reflective Sensor

,

Reliable Reflective Infrared Sensor

Product Description

IRR-7R Reliable Reflective Infrared Sensors with Relay Output for Automation Systems



Retro reflective sensors are photoelectricsensors. They consist of an emitter and receiver ina single housing. The light produced by the emitter is reflected back to the receiver with areflector. Whenever this light beam is obstructed, the output signal of the sensor changesstate. photocell retro reflective sensors for the detection of transparent objects are characterized by their long sensing ranges of up to 6m on the IRR-7R reflector and their small housing. Combined with an extensive range of accessories, they provide a simple way to integrate sensors into systems.
The IRR-7R reduces the time required to install and align thesensor to just a few seconds making this the ideal product for logistics applications.Itprovides quick and flexible sensor installation.ensures error-free operation and keeps costs under control.



retro photocell



Feature

  • 1. Long Sensing Distance
    • AThrough-beam Sensor, for example, can detect objects morethan 7 m away.This is impossible with magnetic, ultrasonic.or other sensing methods.
  • 2. Virtually No Sensing ObjectRestrictions
    • These Sensors operate on the principle that an objectinterrupts or reflects light, so they are not limited like ProximitySensors to detecting metal objects. This means they can beused to detect virtually any object, including glass, plastic,wood.and liquid.
  • 3. Fast Response Time
    • The response time is extremely fast because light travels athigh speed and the Sensor performs no mechanical operationbecause all circuits are comprised of electronic components.
  • 4. High Resolution
    • The incredibly high resolution achieved with these Sensorsderives from advanced design technologies that yielded avery small spot beam and a unique optical system forreceivinglight.These developments enable detecting verysmall objects, as well as precise position detection.
  • 5. Non-contact Sensing
    • There is little chance of damaging sensing objects or Sensorsbecause obiects can be detected without physical contact.This ensures years of Sensor service.
  • 6. Easy Adjustment
    • Positioning the beam on an object is simple with models thatemit visible light because the beam is visible.



Applications

application

Product size

products size

Product series

IR-20 IPS-20R IS-30R WIS-30 IRR-7R

Infrared Photocell Sensor

12-24 VAC/DC

Detection distance:20 M

Infrared sensor

12-24 VAC/DC

Detection distance:20 M

Infrared Sensor

12-24 VAC/DC

Detection distance:30 M

INFRARED SENSORS

12-24VAC/DC

Detection distance:30 M

Infrared sensors

10-30 VAC/DC

Detection distance:7 M

SC-10 BP-70 PB3-4L15 PB10-4L15 PB10-8L15

Infrared photocell12-30 VAC/DC

Single Beam / Double Beam

Detection distance: 10

infrared photocell

TX-Batteries RX-12-24 VAC/DC

30.7 cm Single Beam

Detection distance:20 M

infrared sensors

9-30 VAC/DC

30.7 cm 4 Infrared Beam

Detection distance:15 M

infrared

DC 12-24 V

1 Meter 4 Infrared Beam

Detection distance:15 M

infrared

DC 12-24V

1 Meter 8 Infrared Beam

Detection distance:15 M

PB20-8L15 PB20-16L15 FC20-28L20 FC20-32L20 CB15-8L8

infrared

DC 12-24V

2 Meter 8 Infrared Beam

Detection distance:15 M

infrared

12-24 VAC/DC

2 Meter 16 Infrared Beam

Detection distance:15 M

INFRARED

12-24 VAC/DC

2 Meter 28 Infrared Beam

Detection distance:15 M

infrared

12-24 VAC/DC

2 Meter 32 Infrared Beam

Detection distance:15 M

Photocell beam

DC 12-24

1.5 Meter 8 Infrared Beam

Detection distance: 8
