Infrared Photocell Sensor
>
10m Infrared Beam Sensor Photoelectric Cell For Automatic Door Safety

10m Infrared Beam Sensor Photoelectric Cell For Automatic Door Safety

Brand Name: JUTAI
Model Number: SC-20
MOQ: Support 1-10 pcs for sample
Price: Negotiation
Packaging Details: 50 pcs / 1 cartoon
Payment Terms: L/C, T/T, Western Union Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, FCC
Document:
Working Voltage:
AC/DC 10-30 V DC
Quiescent Current:
18 MA (12 V Electricity)
Operating Current:
58 MA (12 V Electricity)
Maximum Transceiver Distance:
10 M
Output Contact Normally Open And Closed:
Jumper Cap Selection Setting(Default Is Normally Open)
RX Cable Length:
5.5 M
TX Cable Length:
5.5 M
Number Of Beams:
Single-or Dual-beam Option
Operating Temperature:
-42~45℃
Operating Humidity:
10~90%RH
Material:
ABS
Controller Dimension:
109.5(L)*41.1(W)*25.6(H)mm
Beam Dimension:
19(L)*13(D)mm
Name:
Infrared Photocell Sensor
Supply Ability:
5000 pcs per month
Highlight:

10m Infrared Beam Sensor

,

Safety Infrared Beam Sensor

,

Automatic Door IR Beam Sensor

Product Description

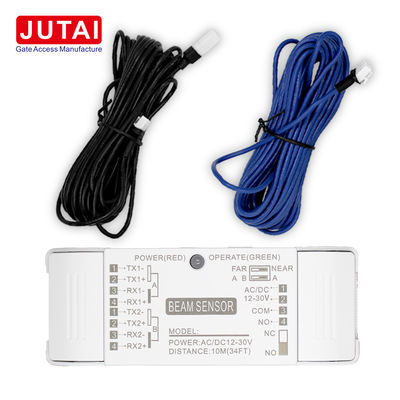

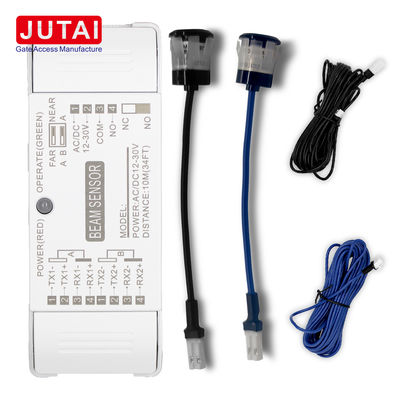

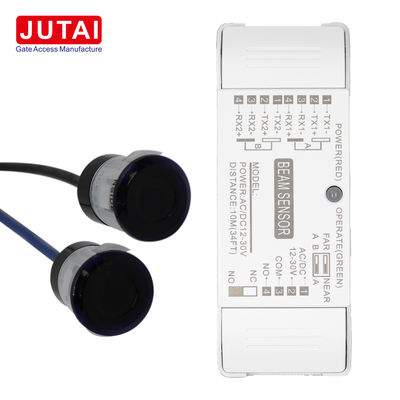

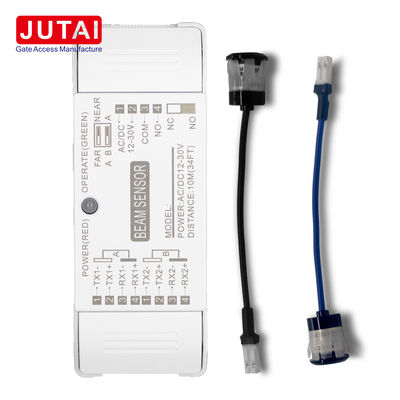

10 m Infrared Beam Sensor Photoelectric cell for Automatic door safety



Automatic Door Safety Counter Beam:Used to prevent the door from trapping people or objects when closed.Consists of a pair of infrared emiters and receivers that areare mounted on either side of the door and create an infrared beam. When a person or object passes through the door,this beam is interrupted,triggering the door to stopclosing oropening action to prevent pinching or crushing events.



infrared sensor




Wiring Definitions

Infrared photocell





Optical sensor

photocell sensor

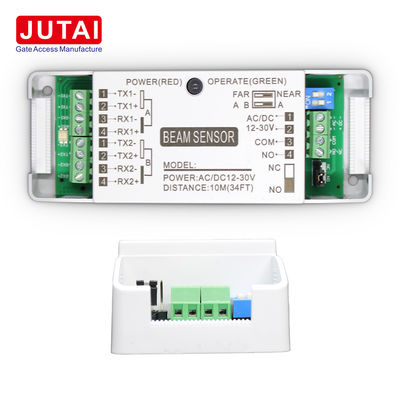

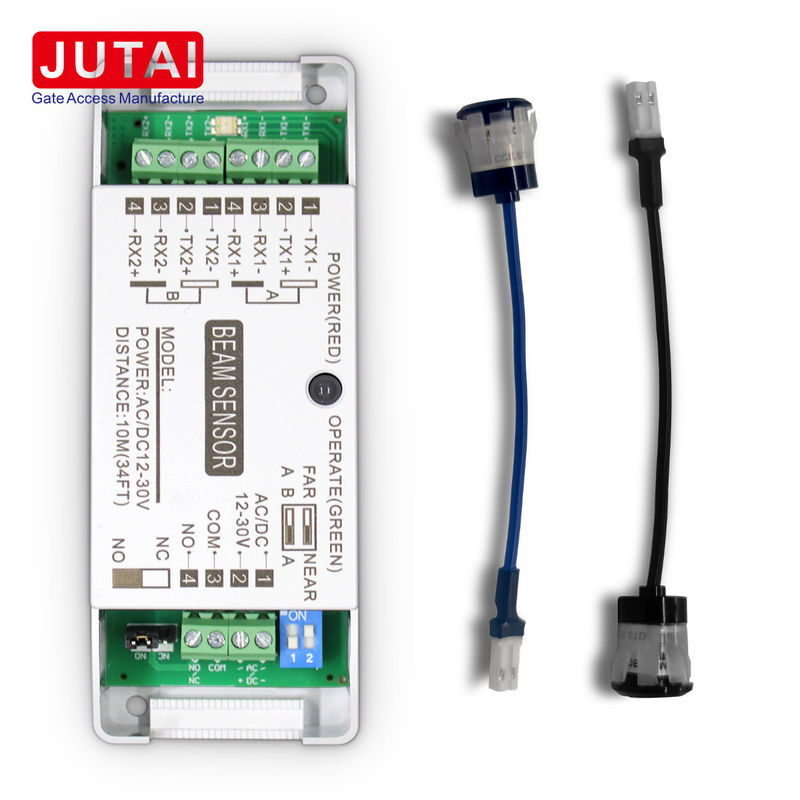

Note: 1.Power Input AC/DC12-30V

2.If used 1 group beam,need to connect to single beam

3.DIP1 setting single/double beam

4.DIP2 setting range

5.NO/NC Output can selected






Overall Advantage

  • Using wiring method,wiring is simple,convenient and accurate.
  • Using microcomputer control technology,the system has high integration and strong stability.
  • The international general optical lens design has good focusing,reasonable control angle,and is easy to install.
  • Using special microcomputer coding transceiver technology,the transmitter and receiver have a long distance and strong anti-interference ability.
  • Adopting german receiving filtering,decoding,and amplification systems to effectively solve the problem of resisting natural sunlight interference.
  • It has a single or double group of transceiver lenses and separate connection outputs.The connection has good shielding properties and can control one beam of light or two beams of light.
  • After light occlusion triggers,the output can flexibly select normally open or normally closed signals.
  • Wide voltage input design,valid for both 12-30VAC and DC power input.
  • The unique high-precision calculation mode and sunlight filter factor greatly improve the anti-interference ability of the system.

infrared photocell



Specific Considerations

  • The single beam must be connected to group A,and the double beam must be connected to group AB.

  • When installing the electric eye ,the diameter of the drilled hole is 13mm.

  • When using a single beam of light,the recommended installation height is 60cm from the ground.

  • When using double beams,one set is installed at a height of 30cm from the ground,and the other set is installed at a height of 90cm from the ground.

  • The transmitter and receiver has a certain automatic capture range,but please be sure to align it when installing to ensure consistency in the horizontal and vertical directions.

  • Normally, you should be careful not to place piles of objects between the transmitter and receiver to avoid blocking and malfunctioning.

  • This system has excellent resistance to natural light interference,but when installing,try to avoid direct frontal exposure to strong sunlight to the electric eye.

  • Make sure that the height of the safety light from the ground is not less than 20cm.

photocell sensor





IR-20 IPS-20R IS-30R WIS-30 IRR-7R

Infrared Photocell Sensor

12-24 VAC/DC

Detection distance:20 M

Infrared sensor

12-24 VAC/DC

Detection distance:20 M

Infrared Sensor

12-24 VAC/DC

Detection distance:30 M

INFRARED SENSORS

12-24VAC/DC

Detection distance:30 M

Infrared sensors

10-30 VAC/DC

Detection distance:7 M

SC-10 BP-70 PB3-4L15 PB10-4L15 PB10-8L15

Infrared photocell12-30 VAC/DC

Single Beam / Double Beam

Detection distance: 10

infrared photocell

TX-Batteries RX-12-24 VAC/DC

30.7 cm Single Beam

Detection distance:20 M

infrared sensors

9-30 VAC/DC

30.7 cm 4 Infrared Beam

Detection distance:15 M

infrared

DC 12-24 V

1 Meter 4 Infrared Beam

Detection distance:15 M

infrared

DC 12-24V

1 Meter 8 Infrared Beam

Detection distance:15 M

PB20-8L15 PB20-16L15 FC20-28L20 FC20-32L20 CB15-8L8

infrared

DC 12-24V

2 Meter 8 Infrared Beam

Detection distance:15 M

infrared

12-24 VAC/DC

2 Meter 16 Infrared Beam

Detection distance:15 M

INFRARED

12-24 VAC/DC

2 Meter 28 Infrared Beam

Detection distance:15 M

infrared

12-24 VAC/DC

2 Meter 32 Infrared Beam

Detection distance:15 M

Photocell beam

DC 12-24

1.5 Meter 8 Infrared Beam
