BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App

Brand Name:	JUTAI
Model Number:	BR-24R4
MOQ:	Support 1-10 pcs for Sample
Price:	Negotiation
Packaging Details:	20 pcs 1 cartoon
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

Name:

External Bluetooth Module

Working Voltage:

12-24 V ADC

Operating Current:

<300 MA

Operating Temperature:

-40~75 ℃

Humidity:

10-90% RH Frost Free

Relay Output:

4-way Relay Output (NC/NO Can Be Set, Defaultsetting Is NO)

Trigger Signal:

Function Reservation

Weigand Output Signal:

1 Group

ID Capacity:

Working Frequency:

433 MHz

Bluetooth Operating Frequency:

2.4 GHz

433 Remote Control Communication Distance:

Conventionalremote Control(30m),High-power Remote Control(100m)

Product Size:

174*108*57 Mm

Product Weight:

0.22 Kg

Supply Ability:

1000 pcs per time

Highlight:

Easy Integration External Bluetooth Module

Mobile App External Bluetooth Module

Product Description

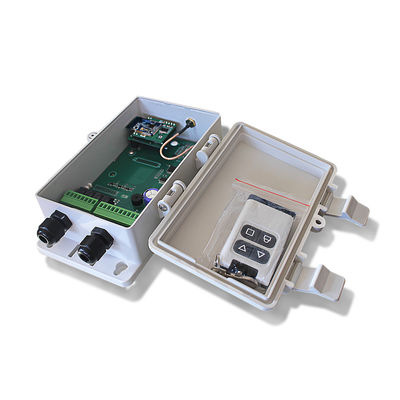

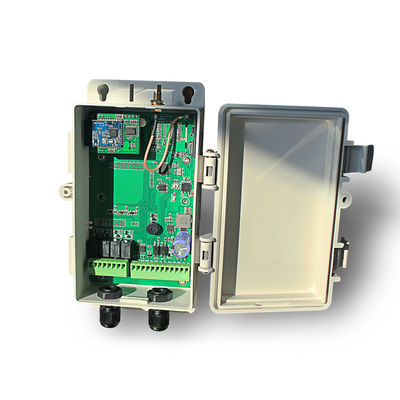

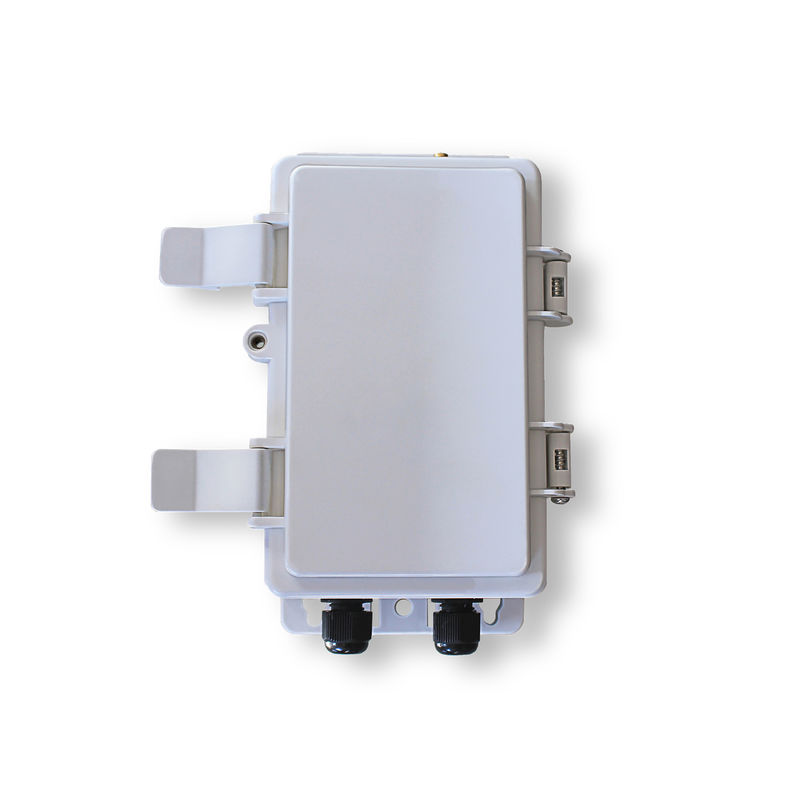

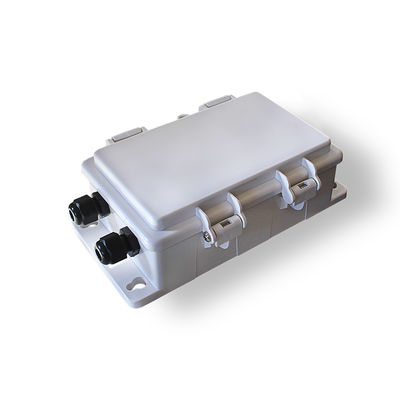

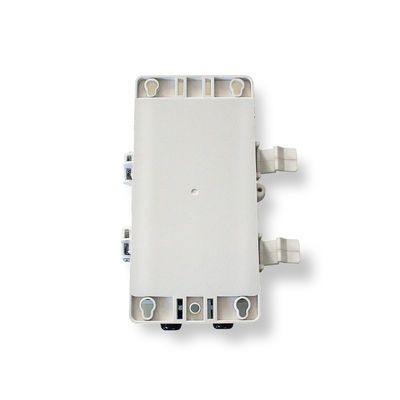

BR-24R4 Easy Integration External Bluetooth Module work with JUTAI bluetooth mobile app for Remote control

JUTAl Bluetooth Gate Opening System is mainly composed of three parts,Bluetooth receiving module,remote transmitter,and mobile phone APP(Supporting Apple and Android systems).Bluetooth receiving module,model is BR24R4,and which has a built-in 4-way relay,it can be used with various doors and gates. By default,255 remote controllDs are stored , and 433MHZ remote control receiving module is built-in,which can be used with all series of JUTAl remote transponder to open doors remotely; At the same time, a 2.4G Bluetooth receiving module is built in also , and the Bluetooth function of the supporting mobile phone is practical, enabling the mobile phone to open the door remotely; it has Wigan output,which can be used as a transit board to connect JUTAl access control system; IP65 protection grade, used directly outdoors.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 0

Details of Mobile APP Software Operation

Download Method:

ios system

Click App Store,search GL Control.and Click GET.

Click Settings→Open Bluetooth.After installation,the user first opens the Bluetooth device and then clicks the desktop icon to enter the APP.The interface is as shown in the figure below.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 1

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 2

Android System

Scan Below QR Code

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 3

Add Device:

For the first operation,press and hold the center circle,click Device Manage→Click Add.

Click Gatelink→lnput initial password after successful connection:12345678→Click Add Decive.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 4

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 5

Basic Switch Of Portal Crane:

Click the three buttons below to,Stop and Close.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 6

Change PIN:

Click Change PIN→lnput original password→lnput new password→lnput confirmed new password again→Click Change.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 7

Change Device Name:

Click Change Device Name→ Enter a new device name→ Enter the device password again→Click Change to modify successfully.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 8

Add User:

Click Add User→Enter user name and device password→Click Add→It can be used to open and close doors for othe family members.

Click the newly added user Ede more→Click Share QR Code→You can directly share the QR code with family members.

Click the newly added user Ede more→Click Disable →Enter the administrator password→Click Disable User→ Disable the user to use the APP to open and close the door.

Click the newly added user Ede more→Click Enable →Enter the administrator password→Click Enable User→ Restore the user to use the APP to open and close the door.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 9

Delete Device:

Click Delete Device→Click Delete→Delete.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 10

Auto Open:

Click Devices List→Click more→Click the switch.

BR-24R4 Easy Integration External Bluetooth Module With JUTAI Bluetooth Mobile App 11

Product Series

RC-2	RC-4	BR-24R4	UR-40	UR-U2K
433 MHz Receiver Two relays	433 MHz Receiver Four relays	Bluthooth Module receiver with 4 Relays Support Mobile APP and Remote control	433 MHz USB transponder Auto-open	433 MHz Car charger Auto-open & Close & Stop
UR-43K	RB43-2K	RB43-4K	LSK4-2	LSK4-4
433 MHz Car charger Auto-open & Open & Close & Stop	433 MHz Remote transponder Open & Close 30M	433 MHz Remote transponder Open & Close & Stop & Lock 30M	433 MHz Remote transponder Open & Close 50-100 M	433 MHz Remote transponder Open & Close & Stop & Lock 50-100 M
