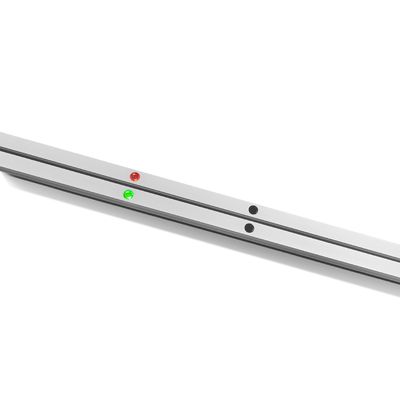

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech

Brand Name: JUTAI
Model Number: CG15-8L
MOQ: Support 1-10 pcs for testing
Price: Negotiation
Packaging Details: 1 set 1 cartoon. 8 set 1 big cartoon
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
CG15-8L12.pdf
Working Voltage:
12 - 30VADC
Working Current:
64mA@DC12V / 44mA@DC24V / 34mA@DC30V
Output Load:
Maximum Switching Current: 1A, Maximum Switching Voltage: 125V@AC, 60V@DC
Output:
Transmitter: - ；Receiver: NO, NC, COM
LED Status:
Transmitter: Green Light Always On (normal) ；Receiver: Red Light (object Obstruction), Green Light (unobstructed, Power Supply), Red Light Flashing (first Power On)
Angle:
Transmitter: ±15° ；Receiver: ±65°
Cable Length:
Transmitter Size 12m Receiver Size 4 M
Number Of Optical Eyes:
8
Light Eye Distance:
175 Mm
Wavelength:
950nm
Detection Distance:
12m (Indoor/Outdoor)
Response Speed:
23 Ms
Closest Installation Distance:
50 Cm
Cable Specifications:
AWG26
Shell Material:
Natural Alumina
Protection Grade:
IP67
Operation Temperature:
-40°C ~ +70°C
Supply Ability:
1000 set per month
Highlight:

safety light curtain for doors

,

embedded door track light curtain

,

cross-beam safety light curtain

Product Description

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech

Seamlessly Built-In Protection for Industrial Doors
Experience truly integrated safety with our ultra-slim embedded light curtain, designed to disappear into door tracks for invisible yet powerful industrial door protection. Unlike bulky traditional sensors, this cross-beam technology slides directly into door profiles and tracks, maintaining clean lines while creating an invisible safety shield across door gaps and openings. Engineered for seamless installation in roller doors, sliding doors, and high-speed doors, it delivers crush prevention and intrusion detection without compromising door aesthetics or operation. The hidden safety system withstands harsh industrial environments – from freezing cold storage facilities to dusty warehouses – providing reliable object detection that keeps personnel safe and operations flowing smoothly, day after day.



Smarter, Stronger Door Gap Security
Transform your moving doors into intelligent guardians with our cross-beam light curtain technology. This revolutionary embedded safety solution acts like guardian angels in door tracks, using intersecting beams to eliminate dangerous blind spots where parallel-beam sensors fail. By detecting fingers, tools, or obstacles with superior accuracy, it actively prevents entrapment and crushing accidents at loading docks, warehouse entrances, and automated gates. The vibration-resistant design ensures false-trigger-free performance even near heavy machinery and forklift traffic, while its ultra-slim profile shields door mechanisms from damage. Enjoy maintenance-free operation, weatherproof reliability, and peace of mind knowing your door safety system works silently as a silent protector – ensuring both productivity and people stay protected.



Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 0





Product Size



Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 1





Wiring



Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 2





Production



Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 3 Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 4 Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 5



Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 6 Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 7 Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 8





Product Series



CG15-8L CL05-10L CL10-8L CL10-16L CL15-8L

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 91.5 m 8 Infrared Beam

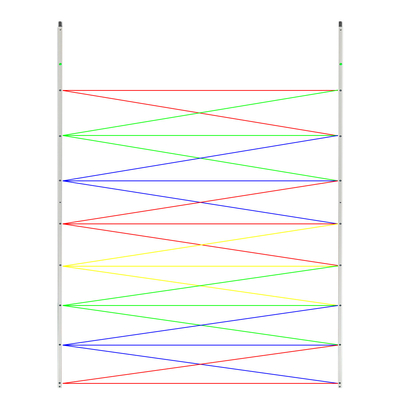

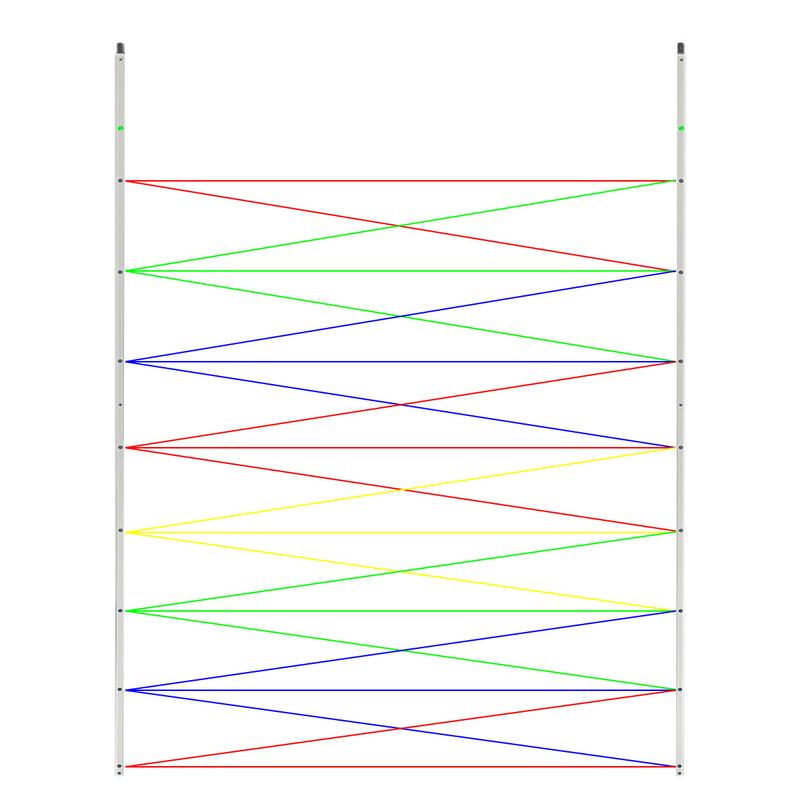

Cross Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 10
0.5 m 16 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 11

1 m 8 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 12

1 m 16 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 13

1.5 m 8 Infrared Beam

Parallel Beam Version
CL15-16L CL20-8L CL20-16L CL25-8L CL25-16L

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 14

1.5 m 16 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 15

2 m 8 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 16

2 m 16 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 17

2.5 m 8 Infrared Beam

Parallel Beam Version

Embedded Safety Light Curtain In Door Tracks For Seamless Integration With Cross-Beam Tech 18

2.5 m 16 Infrared Beam

Parallel Beam Version
