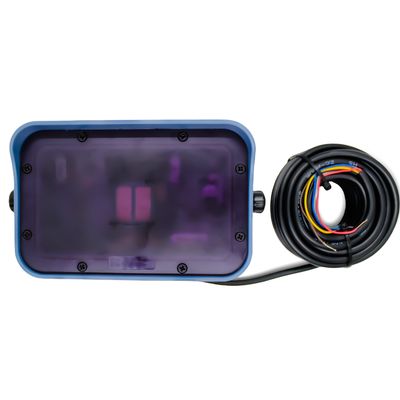

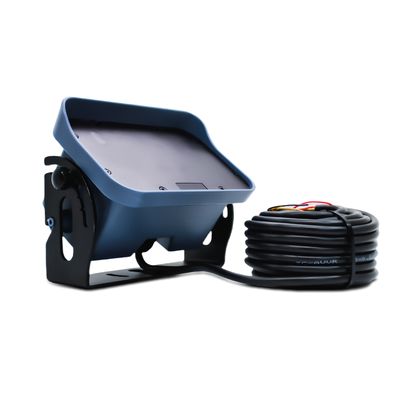

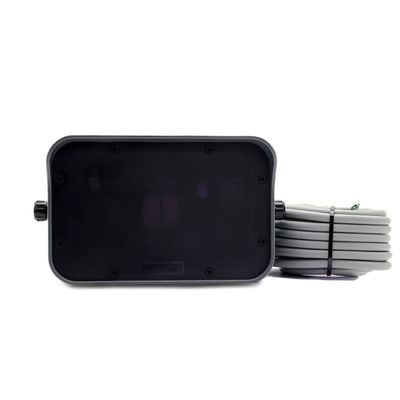

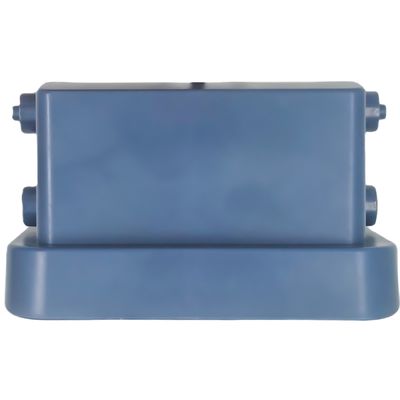

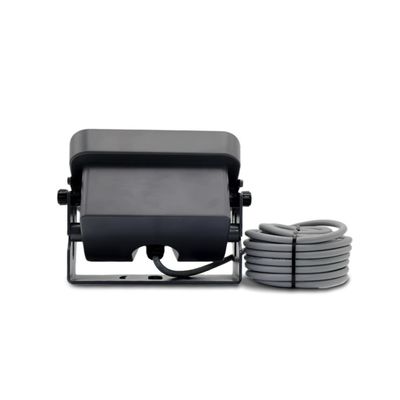

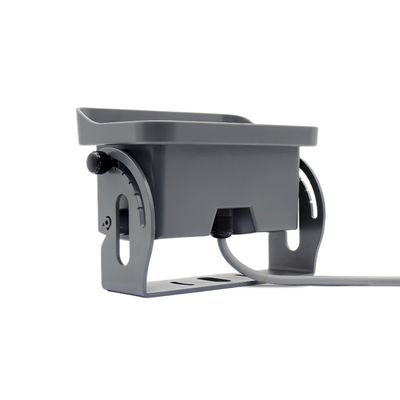

Vehicle detect only Single Solid realy Microwave Motion Radar Detector for High speed stacking door Roller shutter

Product Core Traits & Door-Specific Adaptability

Application Scenarios & Operational Value

• 1. Detection Modes (Vehicle Only or Detect Both Vehicles and People)

Function Description: The sensor supports two detection modes:
Vehicle Only: Suitable for scenarios where pedestrian interference needs to be excluded, such as warehouse access control.
Detect Both Vehicles and People: Suitable for comprehensive monitoring scenarios, such as integrated logistics centers.
Advantages: Flexible mode switching to meet different scenario needs, improving detection accuracy and applicability.

• 2. Adjustable Installation Height (2-7 meters)

Function Description: The sensor supports installation at heights ranging from 2 to 7 meters, and detection parameters can be adjusted according to actual needs.
Advantages: Suitable for various installation environments, such as low warehouse doors or high industrial doors.

• 3. Direction Recognition (Forward and Reverse Detection)

Function Description: The sensor can recognize the direction of target movement (forward or reverse).
Advantages: Improves detection accuracy and prevents false triggers, especially in scenarios requiring distinction between entry and exit directions.

• 4. Sensitivity Adjustment

Function Description: Users can adjust the sensor's detection sensitivity according to environmental needs.
Advantages:

In high sensitivity mode, it can detect slight movements, suitable for high-security environments.
In low sensitivity mode, it reduces false triggers, suitable for complex environments.

• 5. Adjustable Relay Output Time (0.2-5 Seconds)

Function Description: The relay output time can be adjusted within a range of 0.2 to 5 seconds to control the response time of external devices.
Advantages:Short output time is suitable for fast response scenarios, such as automatic doors.
Long output time is suitable for scenarios requiring continuous triggering, such as alarm systems.

• 6. Lateral Filtering

Function Description: The sensor can filter out lateral movement targets and only detect targets moving perpendicular to the sensor.
Advantages: Reduces false triggers and improves detection accuracy

• 7. Strong Anti-Interference Performance

Resists electromagnetic interference, temperature fluctuations, light changes, and other external disturbances.
Ensures the stability and reliability of detection results.

Summary
This industrial door radar sensor integrates a variety of advanced features, including flexible detection modes, precise direction recognition, adjustable sensitivity and output time, and strong anti-interference capabilities. Whether for warehouses, parking lots, or logistics centers, it provides reliable detection solutions to meet diverse application needs. Its setup via remote control or app further enhances the user experience, making it an efficient and intelligent industrial sensor.

Product Series

RVP42-7ME	RVP42-7BW	RVP42-9ME	RVP42-9BW	RVP42-R
2-7 m Insatallation High Remote setting only	2-7m Installation High Remote Setting Mobile APP Setting	2-9m Installation High Inside Button Setting Remote Setting	2-9m Installation High Inside Button Setting Remote Setting Mobile APP Setting	Radar Remote for All Sensor
Android APP QR Code	iOS system App
Scan the QR Code to Get the  Android System APP	Search "GL Control" in iOS App store to get the APP
