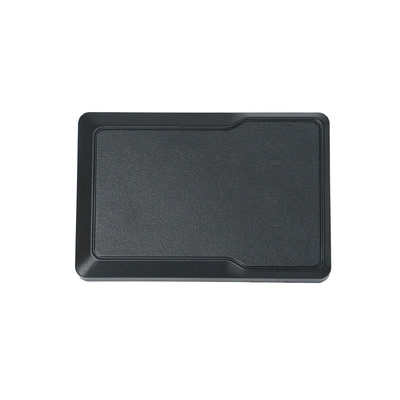

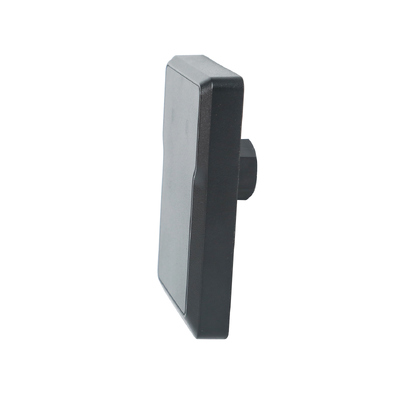

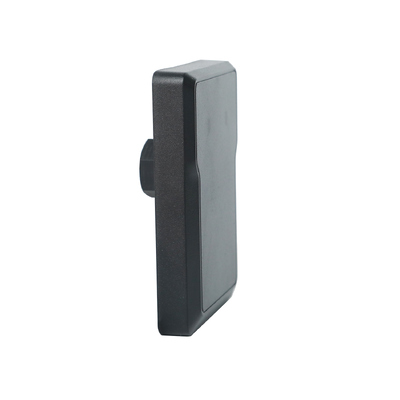

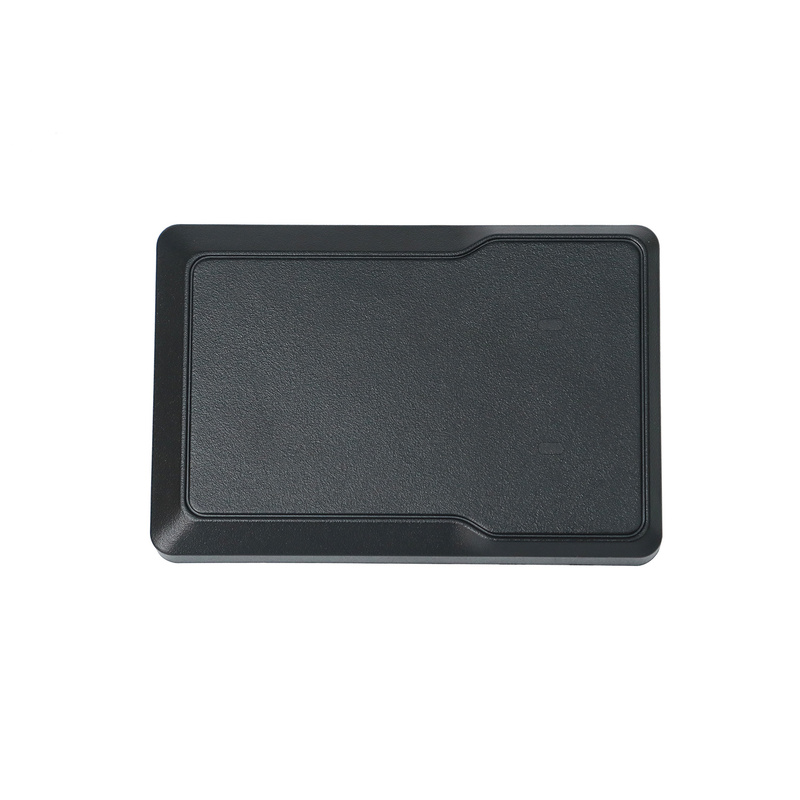

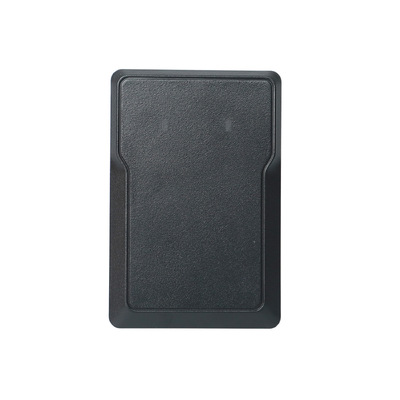

79-81GHz Barrier Radar Sensor RD79-6M with Vehicle Detect Only and IP66 Protection for Loop Detector Replacement

Brand Name: JUTAI
Model Number: RD79-6M
MOQ: Support 1-10 Sample Order
Price: Negotiation
Packaging Details: Cartoon
Payment Terms: Western Union,T/T,Paypal,Alipay,Alibaba link
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
79G radar.pdf
Model:
RD79-6M
Working Frequenc RD79-6M Y:
79～81GHz
Detection Zone Length:
1-6m
Detection Zone Width:
0.5–1.5 Meters To The Right And 0.5–1.5 Meters To The Left Of The Central Line
Interface:
4G（optional）、Bluetooth 5.0、 RS485
Response Time:
≤ 100ms
Supply Voltage:
DC12~24V
Maximum Operating Current:
600mA
Average Power:
1.2W（@12V）
Size:
110.9*73.9*17.5mm
Protection Level:
IP66
Working Temperature:
-40°C ~ ﹢80°C
Supply Ability:
2000 pcs per month
Highlight:

79-81GHz Barrier Radar Sensor

,

Vehicle Detect Only Barrier Radar Sensor

,

IP66 Barrier Radar Sensor

Product Description
79G Barrier Radar Sensor RD79-6M - Vehicle Detection Radar
The RD79-6M 79G Barrier Radar Sensor represents the next generation of millimeter-wave technology, specifically engineered as a high-precision loop detector replacement. Operating at 79-81GHz, this sensor provides exceptional stability and environmental adaptability, remaining unaffected by rain, dust, or intense solar radiation.
Its advanced "Vehicle Detect Only" logic allows the system to completely ignore pedestrians within its 0-6 meter detection range, effectively preventing false triggers and eliminating the need for costly ground cutting and wire burying. With a rapid response time of 100ms and robust IP66 waterproof rating, the RD79-6M ensures reliable, real-time vehicle monitoring for parking lots, toll gates, and automated access control systems.
Beyond core detection capabilities, the RD79-6M offers intelligent safety features and user-friendly setup. It supports two operational modes: Trigger Mode for seamless passage control and Safety Anti-Pinch Mode to protect vehicles from barrier arm contact. Users can achieve professional-grade precision through the "GL Control" mobile app, facilitating intuitive adjustments to the detection zone with 0.1m accuracy.
RD79-6M Barrier Radar Sensor application in gate access control system
Product Specifications
RD79-6M Barrier Radar Sensor dimensions and size specifications
Key Features
  • High-precision 79GHz millimeter wave technology with strong environmental adaptability
  • Pedestrian filtering function (Vehicle Detect Only) accurately ignores pedestrians within detection range
  • Direction recognition prevents vehicles from "reversing" into exits for enhanced security
  • APP intelligent parameter adjustment via "GL Control" mobile application
  • IP66 protection rating for industrial-grade waterproof and dustproof performance
  • Fast response time ≤ 100ms with low power consumption of 1.2W (12V)
  • Detection range: 1-6m length, 0.5-1.5m width, supporting dual target detection
RD79-6M Barrier Radar Sensor detection zone illustration
Key Advantages of 79GHz Barrier Radar Technology
High Precision and Fine-Grained Detection
Operating at 79GHz provides wider bandwidth, resulting in superior range and velocity resolution.
  • Target Recognition: Distinguishes between small objects like pedestrians, bicycles, and motorcycles
  • Accurate Triggering: Creates precise "virtual curtain" eliminating dead zones
Directional Discrimination
Advanced direction sensing capability revolutionizes traffic management.
  • False Trigger Suppression: Ignores traffic moving away from gate or walking parallel
  • Flow Control: Enables strict one-way access control by responding only to approaching targets
Non-Intrusive Installation
Surface-mounted technology eliminates traditional installation challenges.
  • No Road Cutting: Preserves pavement integrity and reduces labor costs
  • Rapid Deployment: Installation completed in minutes without lane closures
All-Weather Reliability
79GHz millimeter-wave technology resists environmental interference.
  • Environmental Immunity: Operates reliably in darkness, sunlight, rain, snow, and fog
  • Longevity: Protected casing prevents mechanical wear from vehicle traffic
Intelligent Human-Vehicle Differentiation
Sophisticated algorithms categorize objects for enhanced safety.
  • Safety First: Identifies pedestrian "micro-doppler" signatures to prevent injuries
  • Adjustable Zones: Digitally configurable detection length and width via software
Quick Reference Summary
Feature 79GHz Radar Advantage
Safety High-density detection of both humans and vehicles
Efficiency Faster response times and direction-based logic
Maintenance Minimal; no road repairs or wire replacements needed
Adaptability Works in all weather conditions and complex terrains
APP Configuration Interface
How to Get the APP
  • For Android systems: Scan the QR code below
  • For iOS systems: Search for "GL Control" in the APP Store
GL Control APP setting interface for RD79-6M radar GL Control APP QR code for download GL Control APP installation guide GL Control APP interface overview GL Control APP parameter settings GL Control APP detection zone configuration GL Control APP advanced settings GL Control APP main dashboard
Product Packaging
RD79-6M Barrier Radar Sensor packaging overview RD79-6M Barrier Radar Sensor package contents RD79-6M Barrier Radar Sensor retail packaging RD79-6M Barrier Radar Sensor box labeling RD79-6M Barrier Radar Sensor installation components RD79-6M Barrier Radar Sensor complete package JUTAI RVP42-9BW Two Relay Microwave Motion Sensor product comparison
