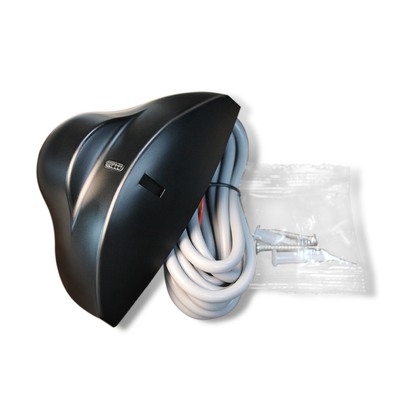

Microwave Radar | RD24-4S | Easy Installation | Temperature Resistant Fast Response

Brand Name:	JUTAI
Model Number:	RD24-4
MOQ:	100
Price:	4-6 USD according to order quantity
Packaging Details:	Carton
Payment Terms:	T/T,paypal,alipay,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

Technology:

Microwave Doppler Radar

Transmitter Frequency:

24.125GHz

Transmitter Radiated Power:

<20 DBm EIRP

Transmitter Power Density:

≤5mW/cm

Maximum Mounting Height:

Tilt Angles:

0°~90° Vertical; -30°~+30° Lateral

Detection Field (2.2m Mounting):

4m(W)×2m(D)

Detection Mode:

Motion Detection

Minimum Detectable Speed:

5cm/s (sensor Axis)

Supply Voltage:

12-24V AC ±10%; 12-24V DC +30% / -10%

Mains Frequency:

50-60Hz

Power Consumption:

≤2W(VA)

Output Mode:

Switch Tube Output

Signal Output Time:

1.5s Hold

Max Contact Voltage:

42V AC/DC

Max Contact Current:

1A (resistive)

Max Switching Power:

30W(DC) / 60VA(AC)

Working Temperature Range:

-20℃ ~ +55℃

Degree Of Protection:

Norm Conformity:

R&TTE 1999/5/EC; EMC 89/336/EEC

Material:

Housing Color:

Black/Silver

Dimensions (W×H×D):

120mm×80mm×50mm

Net Weight:

0.215kg

Cable Length:

Supply Ability:

5000 pcs per month

Highlight:

microwave motion sensor with fast response

temperature resistant microwave radar

easy install RD24-4S sensor

Product Description

Microwave Radar | RD24-4S | Easy Installation | Temperature Resistant Fast Response

This RD24-4S Microwave Radar stands out as a versatile motion detection solution for all door access systems, engineered with effortless installation, robust temperature resistance and ultra fast response—three core strengths that make it a top choice for commercial, retail and industrial settings. Built on professional 24.125GHz microwave Doppler technology, its fast response capability instantly detects valid motion targets moving at ≥5cm/s along the sensor axis, delivering real-time trigger signals for automatic doors, sliding glass doors and commercial entryways, eliminating lag and ensuring smooth, timely access for high-traffic footfall. No complex wiring or professional tools are needed for its easy installation: the compact ABS housing (120×80×50mm) and lightweight 0.215kg build enable direct surface mounting, the 2.2m pre-wired cable fits JST and relay interfaces, and the intuitive LED status indicator and gentle-adjust sensitivity potentiometer simplify one-step calibration right after mounting.

What elevates this radar further is its exceptional temperature resistance, operating stably in an extreme range of -20℃ to +55℃. It performs reliably in cold winter outdoor covered entryways and hot summer indoor commercial spaces without signal drift or performance drop, far exceeding ordinary sensors’ environmental adaptability. Paired with IP54 dustproof and waterproof protection, it resists daily dust, splashes and wear, ensuring long-term durability in harsh working conditions. With low power consumption (≤2W) and wide 12-24V AC/DC voltage compatibility, it integrates seamlessly into existing power setups without additional adapters. Compliant with R&TTE and EMC international standards, this RD24-4S Microwave Radar combines easy setup, all-temperature adaptability and fast motion response, making it a plug-and-play, low-maintenance motion sensing solution for diverse door automation needs.

Microwave Radar | RD24-4S | Easy Installation | Temperature Resistant Fast Response 0

Product Highlights

24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
Wide detection field: 4m(W)*2m(D) at 2.2m mounting height
Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current

Technical Specifications

Parameter	Specification
Technology	Microwave Doppler Radar
Transmitter Frequency	24.125GHz
Transmitter Radiated Power	<20 dBm EIRP
Transmitter Power Density	≤5mW/cm
Maximum Mounting Height	3m
Tilt Angles	0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting)	4m(W)*2m(D)
Detection Mode	Motion detection
Minimum Detectable Speed	5cm/s (sensor axis)
Supply Voltage	12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency	50-60Hz
Power Consumption	≤2W(VA)
Output Mode	Switch tube output
Signal Output Time	1.5s hold
Max Contact Voltage	42V AC/DC
Max Contact Current	1A (resistive)
Max Switching Power	30W(DC) / 60VA(AC)
Working Temperature Range	-20℃ ~ +55℃
Degree of Protection	IP54
Norm Conformity	R&TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Housing Color	Black/Silver
Dimensions (WHD)	120mm80mm50mm
Net Weight	0.215kg
Cable Length	2.2m

Installation & Adjustment Guide

The sensor's performance is closely related to correct installation and adjustment. Simple operation with no professional tools required:

Mounting Requirements

Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.

Sensitivity Adjustment

Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).

Angle Adjustment

Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.

Status Check

LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).

Troubleshooting Guide

Fault Phenomenon	Probable Causes	Corrective Action
Door does not open & LED no light	Sensor power off	Check wiring connection and power supply validity
Door opens/closes constantly	Sensor detects door vibration/movement; interference source in detection range	Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close	Low sensitivity; microwave module angle <45°; sensor blocked	Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects

Application Scenarios

The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)

Core Technologies

Microwave Doppler Radar Sensor 24.125GHz Radar Sensor Automatic Door Motion Detector Wide Field Detection Sensor IP54 Motion Sensor
