Commercial Door Sensor | 24.125GHz Microwave | Compact Size | IP54 Waterproof

Brand Name:	JUTAI
Model Number:	RD24-4S
MOQ:	100
Price:	4-6 USD according to order quantity
Packaging Details:	Carton
Payment Terms:	T/T,paypal,alipay,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

Maximum Mounting Height:

Technology:

Microwave Doppler Radar

Transmitter Frequency:

24.125GHz

Transmitter Radiated Power:

<20 DBm EIRP

Transmitter Power Density:

≤5mW/cm

Tilt Angles:

0°~90° Vertical; -30°~+30° Lateral

Detection Field (2.2m Mounting):

4m(W)×2m(D)

Detection Mode:

Motion Detection

Minimum Detectable Speed:

5cm/s (sensor Axis)

Supply Voltage:

12-24V AC ±10%; 12-24V DC +30% / -10%

Mains Frequency:

50-60Hz

Power Consumption:

≤2W(VA)

Output Mode:

Switch Tube Output

Signal Output Time:

1.5s Hold

Max Contact Voltage:

42V AC/DC

Max Contact Current:

1A (resistive)

Max Switching Power:

30W(DC) / 60VA(AC)

Working Temperature Range:

-20℃ ~ +55℃

Degree Of Protection:

Norm Conformity:

R&TTE 1999/5/EC; EMC 89/336/EEC

Material:

Housing Color:

Black/Silver

Dimensions (W×H×D):

120mm×80mm×50mm

Net Weight:

0.215kg

Cable Length:

Supply Ability:

5000 pcs per month

Highlight:

commercial microwave door sensor

24.125GHz microwave motion sensor

compact waterproof door sensor

Product Description

Commercial Door Sensor | 24.125GHz Microwave | Compact Size | IP54 Waterproof

This 24.125GHz Microwave Commercial Door Sensor is a professionally tailored motion detection accessory for all commercial entry doors, perfectly combining high-performance microwave sensing, ultra-compact size and IP54 waterproof protection, making it the ideal choice for busy commercial spaces like shopping malls, office buildings, retail stores and restaurant entrances. Adopting stable 24.125GHz microwave Doppler technology, it delivers accurate and fast motion detection for commercial door automation, efficiently capturing pedestrian movement at ≥5cm/s and avoiding false triggers from trivial environmental interference, ensuring smooth and stable operation of commercial swing doors, sliding doors and glass doors all day long.

Its compact and lightweight body is a core highlight for commercial installation, with a slim, space-saving profile that fits easily into narrow door frames, ceiling gaps or wall corners without protruding excessively, preserving the neat and professional appearance of commercial door facades and adapting to various commercial decoration styles with flexible concealed mounting. The IP54 waterproof and dustproof rating further enhances its practicality for commercial use, effectively resisting daily water splashes, oil mist, dust and humidity in public business areas, unlike ordinary sensors that are prone to damage in harsh commercial environments. It runs stably in a wide temperature range, supports 12-24V AC/DC wide voltage for universal commercial power adaptation, and features low power consumption for long-term uninterrupted operation. Compliant with international EMC and R&TTE standards, this compact, waterproof commercial door sensor balances small size, durable protection and reliable sensing, solving installation and environmental adaptation pain points for commercial door projects efficiently.

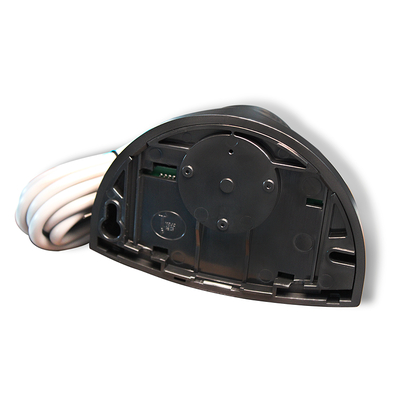

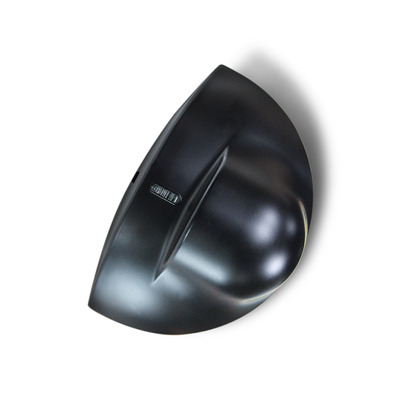

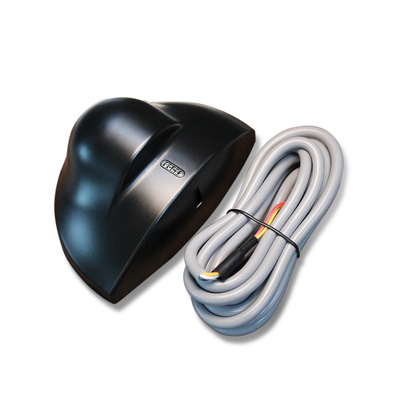

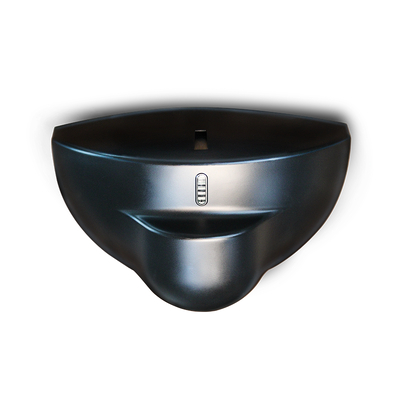

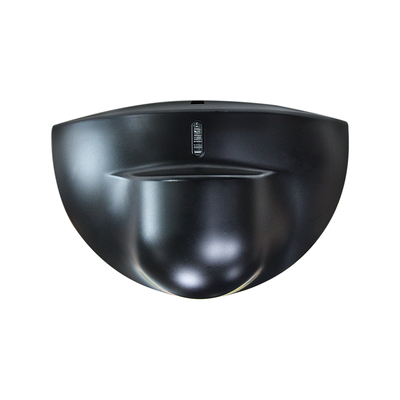

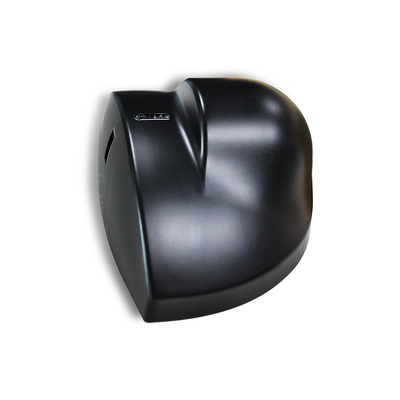

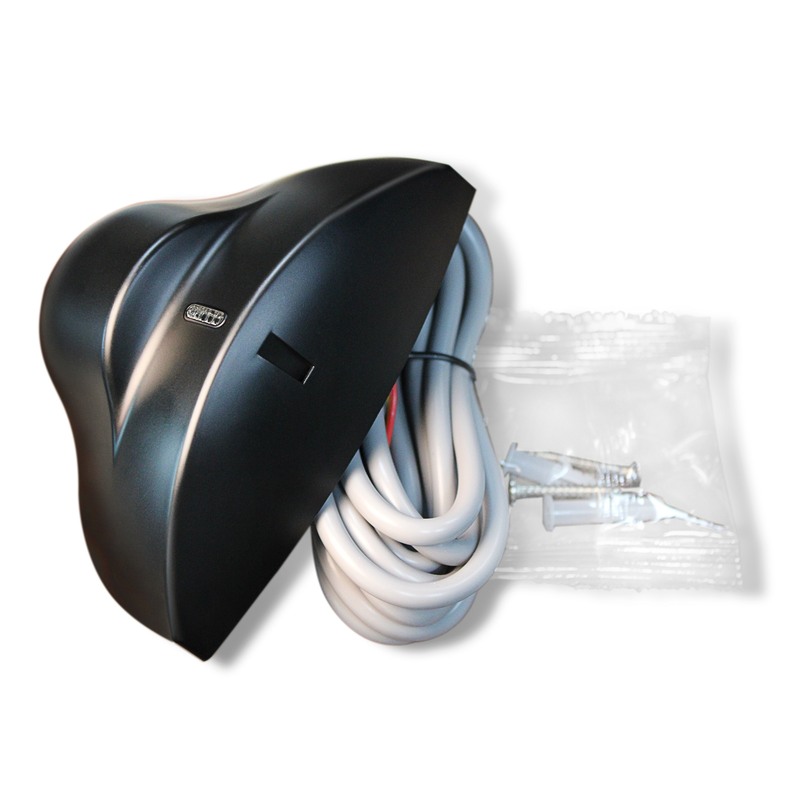

Commercial Door Sensor | 24.125GHz Microwave | Compact Size | IP54 Waterproof 0

Commercial Door Sensor | 24.125GHz Microwave | Compact Size | IP54 Waterproof 1

Product Highlights

24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
Wide detection field: 4m(W)*2m(D) at 2.2m mounting height
Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current

Technical Specifications

Parameter	Specification
Technology	Microwave Doppler Radar
Transmitter Frequency	24.125GHz
Transmitter Radiated Power	<20 dBm EIRP
Transmitter Power Density	≤5mW/cm
Maximum Mounting Height	3m
Tilt Angles	0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting)	4m(W)*2m(D)
Detection Mode	Motion detection
Minimum Detectable Speed	5cm/s (sensor axis)
Supply Voltage	12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency	50-60Hz
Power Consumption	≤2W(VA)
Output Mode	Switch tube output
Signal Output Time	1.5s hold
Max Contact Voltage	42V AC/DC
Max Contact Current	1A (resistive)
Max Switching Power	30W(DC) / 60VA(AC)
Working Temperature Range	-20℃ ~ +55℃
Degree of Protection	IP54
Norm Conformity	R&TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Housing Color	Black/Silver
Dimensions (WHD)	120mm80mm50mm
Net Weight	0.215kg
Cable Length	2.2m

Installation & Adjustment Guide

The sensor's performance is closely related to correct installation and adjustment. Simple operation with no professional tools required:

Mounting Requirements

Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.

Sensitivity Adjustment

Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).

Angle Adjustment

Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.

Status Check

LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).

Troubleshooting Guide

Fault Phenomenon	Probable Causes	Corrective Action
Door does not open & LED no light	Sensor power off	Check wiring connection and power supply validity
Door opens/closes constantly	Sensor detects door vibration/movement; interference source in detection range	Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close	Low sensitivity; microwave module angle <45°; sensor blocked	Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects

Application Scenarios

The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)

Core Technologies

Microwave Doppler Radar Sensor 24.125GHz Radar Sensor Automatic Door Motion Detector Wide Field Detection Sensor IP54 Motion Sensor
