Universal WiFi Gate Relay Controller Low Power Consumption Wireless Smart Control Custom Access Rules for Property and Public Facility Management

Brand Name: JUTAI
Model Number: GL- WLAN
MOQ: Support 1-10 pcs for sample
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T, Western Union, Wechat, Alipay, Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Power Input:
DC 12-24V/1A (5V Customizable)
Relay Output:
2/3-channel Shared Common Terminal
Load:
DC 30V/2A, AC 220V/1A
Interfaces:
1×CAN, 1×RS485, 2×RS232
Communicate:
WIFI/4G + Buletooth
Operating Temperature:
-30~80°C
Supply Ability:
5000 pcs per month
Highlight:

WiFi gate relay controller low power

,

wireless smart control access rules

,

WiFi door access system property management

Product Description

Universal WiFi Gate Relay Controller Low Power Consumption Wireless Smart Control Custom Access Rules for Property and Public Facility Management

The Universal WiFi Gate Relay Controller is a versatile, energy-efficient access management device tailored for property and public facility management, combining universal compatibility with smart wireless control to meet the diverse access needs of residential communities, office buildings, parks, and other public spaces. Designed to simplify daily access regulation and reduce operational costs, it delivers reliable performance while adapting seamlessly to various gate hardware and management scenarios, making it an ideal choice for property teams and public facility administrators.

Low power consumption is one of its core advantages, ensuring long-term stable operation with minimal energy consumption and reducing electricity costs for large-scale facility management. Equipped with seamless WiFi wireless smart control, it allows administrators to manage gate access remotely via mobile devices or a centralized platform, eliminating the need for on-site manual operation and streamlining daily management workflows. This wireless design also simplifies installation, requiring no complex wiring and reducing deployment time and labor costs.

Customizable access rules provide exceptional flexibility, enabling administrators to set tailored access permissions based on user groups, time periods, and specific access scenarios—such as resident daily access, visitor temporary entry, or staff shift access. This personalized control ensures orderly entry and exit, strengthens security oversight, and adapts to the unique management needs of different properties and public facilities. With wide compatibility with standard gate hardware and easy integration with existing security systems, this universal controller optimizes management efficiency, reduces energy and labor costs, and delivers a reliable, user-friendly smart access solution for modern property and public facility management.

Universal WiFi Gate Relay Controller Low Power Consumption Wireless Smart Control Custom Access Rules for Property and Public Facility Management 0

Universal WiFi Gate Relay Controller Low Power Consumption Wireless Smart Control Custom Access Rules for Property and Public Facility Management 1 Universal WiFi Gate Relay Controller Low Power Consumption Wireless Smart Control Custom Access Rules for Property and Public Facility Management 2 Universal WiFi Gate Relay Controller Low Power Consumption Wireless Smart Control Custom Access Rules for Property and Public Facility Management 3
GL-WLAN-01 GL-WLAN-02 GL-WLAN-03







JUTAI GateLink Smart Controller & Camera Core Parameter Summary



General Controller Specifications (All Models)



All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.



Model-Specific Controller Parameters

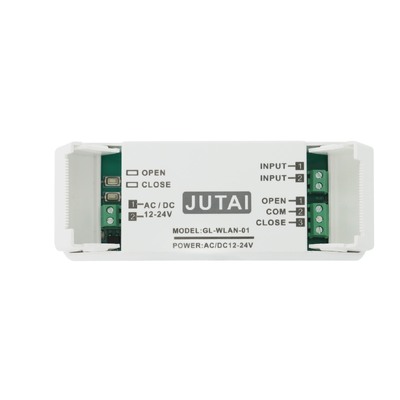

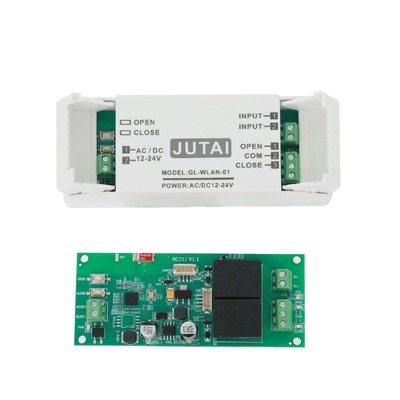

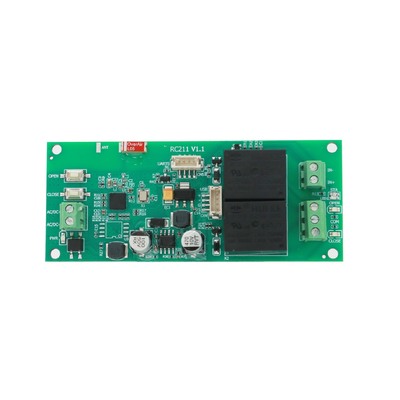

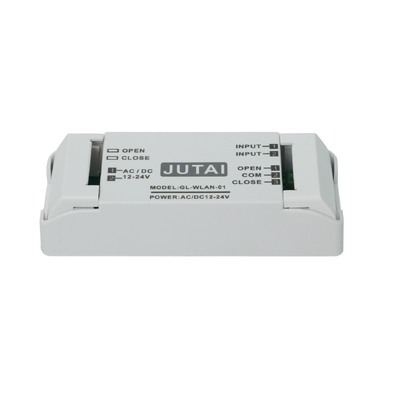

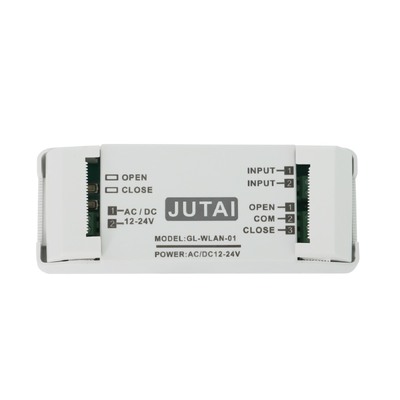

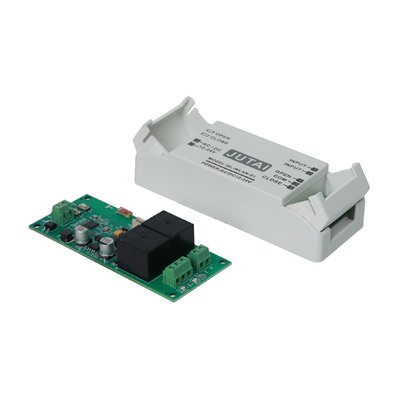

  1. GL-WLAN-01 (2-Relay WiFi Controller)



  • Power input: DC 12-24V/1A (5V customizable)

  • Relay output: 2 channels with shared common terminal

  • Load rating: DC 30V/2A, AC 220V/1A

  • Dimensions: 109.5 × 41.1 × 25.6 mm

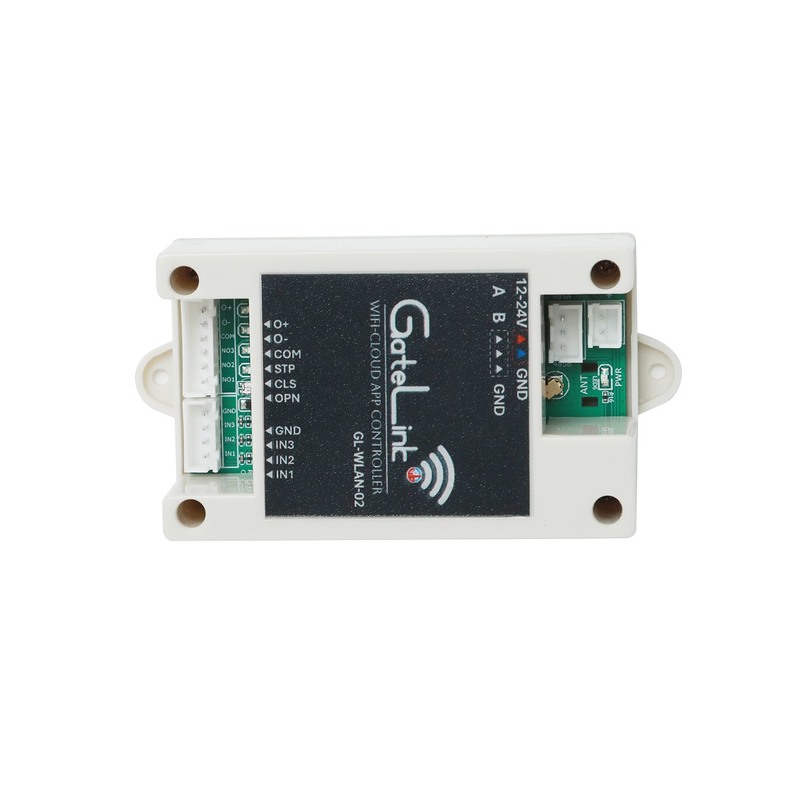

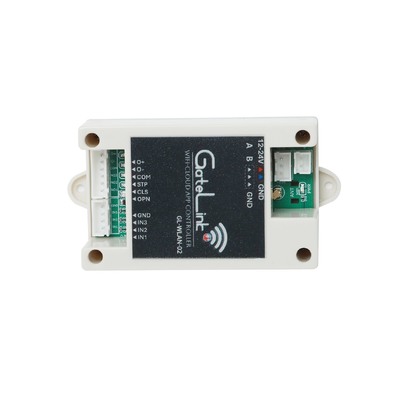

  1. GL-WLAN-02 (4-Relay WiFi Controller)



  • Power input: DC 12-24V/1A (5V customizable)

  • Expansion port: 1 × RS485

  • Relay output: 3 shared common channels + 1 independent channel

  • Load rating: DC 30V/1A, AC 125V/1A

  • Dimensions: 96.5 × 50 × 31.4 mm



  1. GL-WLAN-03 (4-Relay 4G Controller)



  • Power input: DC 12-48V (max peak voltage 60V)

  • Communication: 4G + WiFi + BLE triple-mode

  • Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232

  • Input: 4-channel isolated digital input

  • Relay output: 4-channel independent NO/NC output

  • Load rating: DC 30V/10A, AC 220V/10A (high-power support)

  • Dimensions: 135 × 80 × 40 mm



Camera Pixel Parameters



  • GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)

  • GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)

  • JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution
