DC brushless motor design helps reduce power consumption and lowers stress on key components.

The dual-spring structure reduces motor load, improves boom balance, and extends service life.

Fast-start and slow-stop technology makes the boom movement smoother and more stable.

The barrier gate can be locked at any angle between 0° and 90°.

Simplified mechanical design makes installation and servicing easier.

Supports straight boom, telescopic boom, folding boom, fence boom, and LED strip boom for different site requirements.

1. 1. What type of motor does this barrier gate use?

   This barrier gate uses a DC brushless motor, which helps reduce power consumption, lower mechanical stress, and provide smoother operation for frequent vehicle access control.

   2. What boom arm lengths are available?

   The barrier gate supports 3m, 4.5m, and 6m boom arm lengths. It can be configured according to different entrance widths and site requirements.

   3. What opening speed options are available?

   The available opening and closing speeds include 1.5s, 3s, and 6s, depending on the selected configuration and boom arm length.

   4. Is this barrier gate suitable for parking lots?

   Yes. It is suitable for parking lots, residential communities, commercial buildings, industrial parks, logistics centers, and vehicle entrance control systems.

   5. Does this barrier gate support folding arms?

   Yes. Besides straight boom arms, this barrier gate can support 90° folding arms, 180° folding arms, telescopic boom arms, fence boom arms, and LED strip boom arms for different installation environments.

   6. Can it be used in underground parking entrances?

   Yes. For underground parking lots or low-ceiling areas, the 90° folding boom or 180° folding boom option is recommended.

   7. What is the protection grade?

   The protection grade is IP54, suitable for common outdoor and semi-outdoor parking entrance applications.

   8. What is the operating temperature range?

   The operating temperature range is -35°C to 75°C, making it suitable for various climates and installation environments.

   9. What communication interfaces are available?

   The barrier gate supports RS232 and RS485 communication interfaces, making it convenient to integrate with access control systems, parking management systems, RFID readers, and other control devices.

   10. What input signals does the barrier gate support?

   It supports multiple input signals, including gate open, gate close, stop, ground sensor, and anti-crush signals. This makes it easy to connect with loop detectors, safety sensors, radar sensors, and access control devices.

   11. Does it support anti-crush protection?

   Yes. The system supports an anti-crush input signal, which can work with external safety devices such as loop detectors, photocells, or radar sensors to improve vehicle and pedestrian safety.

   12. Can the barrier gate open during power failure?

   Yes. It supports opening by an external 12V 1Ah battery during power failure.

   13. What power supply does it use?

   The barrier gate uses 220V ±10%, 50/60Hz power supply, with 24V DC input voltage for the motor system.

   14. Is the barrier gate easy to install and maintain?

   Yes. The product is designed with a simplified mechanical structure, which helps make installation, servicing, and routine maintenance easier.

   15. What safety or protection features are included?

   The hardware protection includes overcurrent protection, overvoltage protection, and short-circuit protection. These features help improve operational stability and protect key components.

   16. Does it have an auto-lock function?

   Yes. The barrier gate can be locked at any angle between 0° and 90°, helping improve stability and control during operation.

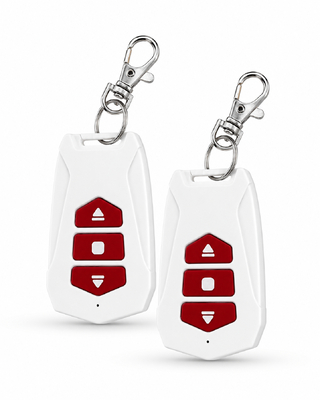

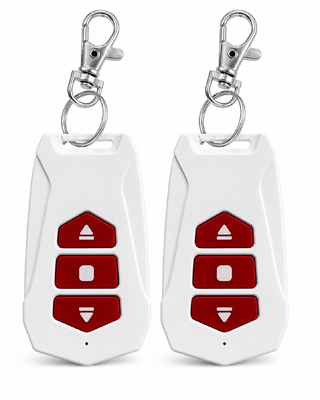

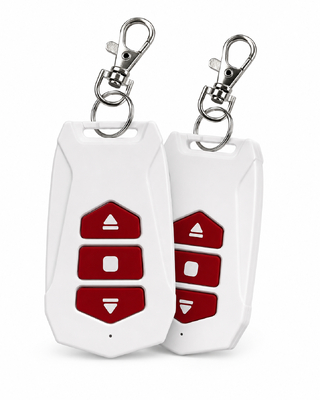

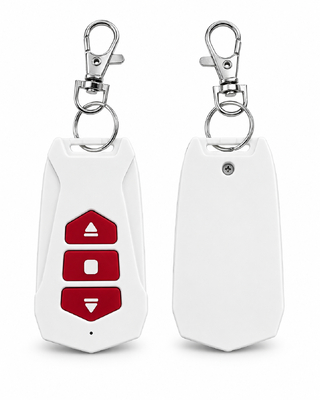

   17. What is the remote control distance?

   The remote control distance is ≤35m, depending on the installation environment and signal conditions.

   18. Can this barrier gate work with RFID readers or parking systems?

   Yes. It can be integrated with RFID readers, license plate recognition systems, loop detectors, radar sensors, access control systems, and parking management systems.

   19. Which boom arm should I choose?

   For standard parking entrances, a straight boom arm is usually recommended. For low-ceiling areas, choose a folding boom arm. For wider lanes, choose a telescopic boom or longer straight boom. For higher access control requirements, a fence boom can be selected.

   20. Is this barrier gate suitable for high-traffic entrances?

   Yes. The DC brushless motor, dual-spring balance system, and fast-start/slow-stop operation make it suitable for entrances with frequent vehicle flow, such as parking lots, communities, industrial parks, and commercial entrances.
