Gate Boom Barrier
>
High Performance DC Barrier Gate for Parking Access Control with Dual Spring Balance and Fast Opening Speed
All Category

Vehicle Loop Detector

Industrial Door Sensor

Infrared Light Curtain

Wifi Door Access Control System

Parking Managment System

Gate Boom Barrier

Barrier Radar Detector

Infrared Photocell Sensor

Microwave Motion Sensor

Traffic Light Traffic Signal

Push Button

Sliding Gate Motor

UHF Long Range Reader

Low Frequency Reader 125K

Mifare RFID Reader 13.56 MHZ
Contact Us
Mr. David
marketing@jutaigateaccess.com
+86 13143400257
Wechat 13143400257
Contact Now

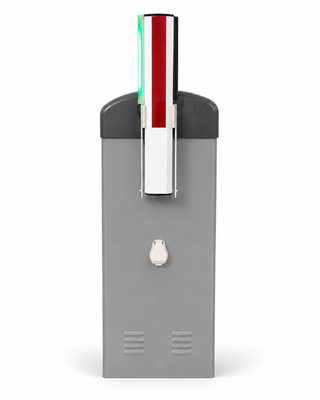

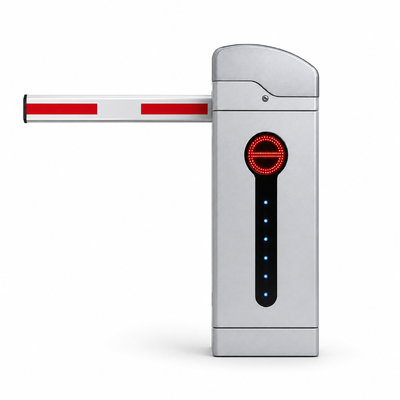

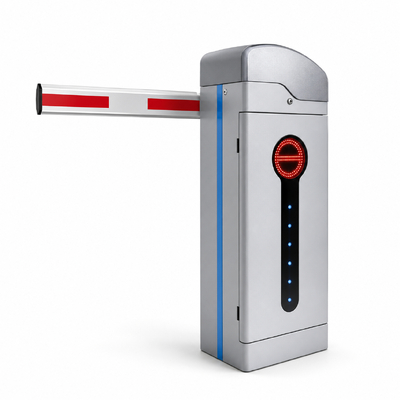

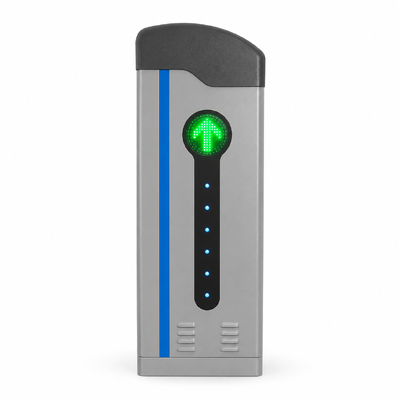

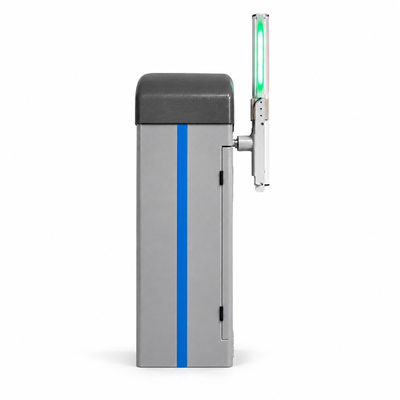

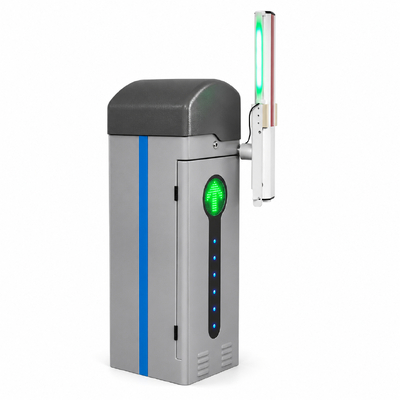

High Performance DC Barrier Gate for Parking Access Control with Dual Spring Balance and Fast Opening Speed
  • name
  • name
  • name
  • name
  • name
  • name

High Performance DC Barrier Gate for Parking Access Control with Dual Spring Balance and Fast Opening Speed

Brand Name: JUTAI
Model Number: A8
MOQ: Support 1-10 set for Sample
Price: 250-260 USD
Packaging Details: 107*38.5*42.5 cm 51kg Carton
Payment Terms: T/T,Western Union,paypal,Alipay,Make in China
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Document:
DC motor barrier manul.pdf
Model:
A8
Product Name:
DC Brushless Motor Barrier Gate
Rated / Peak Current:
8A / 30A
Motor Type:
DC Brushless Motor
Communication Interface:
RS232 / RS485
Hardware Protection:
Overcurrent, Overvoltage, Short-Circuit Protection
Input Signals:
Gate Open, Gate Close, Stop, Ground Sensor, Anti-Crush
Output Signals:
Dry Contacts For Fully Opened And Fully Closed Positions
Operating Humidity:
90% Without Condensation
Operating Temperature:
-35°C To 75°C
Power Supply:
220V ±10%, 50/60Hz
Rated Power:
100W
Motor No-Load Speed:
450RPM
Protection Grade:
IP54
Remote Control Distance:
≤35m
Pole Length:
3m / 4.5m / 6m
Gate Opening Time:
1.5s / 3s / 6s
Supply Ability:
500 set / per month
Product Description

High Performance DC Barrier Gate for Parking Access Control with Dual Spring Balance and Fast Opening Speed

The High Performance DC Barrier Gate for Parking Access Control with Dual Spring Balance and Fast Opening Speed is designed to deliver stable and efficient vehicle entrance management for modern parking systems. Powered by a reliable DC brushless motor, the barrier gate offers smooth operation, reduced maintenance requirements, and consistent performance in high-traffic environments.

Built for parking access control applications, this automatic boom barrier is suitable for residential communities, commercial buildings, office parks, industrial facilities, logistics centers, and public parking lots. The fast opening and closing speed helps improve vehicle flow efficiency, reduce waiting time, and support frequent daily operation.

The advanced dual spring balance system helps reduce motor load and improves boom arm stability during operation. Combined with fast-start and slow-stop technology, the barrier gate provides quieter movement and minimizes mechanical impact, helping extend the overall service life of the equipment.

Multiple boom arm configurations are available, including straight arm, folding arm, telescopic arm, and fence boom options, allowing flexible installation for different site requirements. The system can also integrate with RFID readers, loop detectors, radar safety sensors, remote controls, and parking management systems.

With its durable structure, modern appearance, and reliable access control performance, this DC barrier gate is an ideal solution for secure and professional vehicle entrance management.

High Performance DC Barrier Gate for Parking Access Control with Dual Spring Balance and Fast Opening Speed 0
Core Features
  • High Efficiency DC Drive: DC brushless motor design reduces power consumption and lowers stress on key components
  • Dual-Spring Balance System: Dual-spring structure reduces motor load, improves boom balance, and extends service life
  • Multispeed Function: Fast-start and slow-stop technology ensures smoother, more stable boom movement
  • Auto-Lock Function: Barrier gate can be locked at any angle between 0° and 90°
  • Easy Installation & Maintenance: Simplified mechanical design facilitates installation and servicing
  • Multiple Boom Arm Options: Supports straight boom, telescopic boom, folding boom, fence boom, and LED strip boom for different site requirements
Product Specifications & Pricing
Category Item Specification / Unit Price
Main Product Boom Barrier with 1-6m Straight Arm 1 set USD 250 - 260 / set
Optional Accessory Light Strip 1 meter USD 2 / m
Optional Accessory Safety Edge 1 set USD 23 / set
Optional Accessory Infrared Sensor 1 set USD 10 / set
Optional Accessory Single Channel Loop Detector 1 unit USD 35 / unit
Optional Accessory Dual Channel Loop Detector 1 unit USD 55 / unit
Optional Accessory Radar Safety Sensor 1 unit USD 50 / unit
Frequently Asked Questions
1. What type of motor does this barrier gate use?
This barrier gate uses a DC brushless motor, which helps reduce power consumption, lower mechanical stress, and provide smoother operation for frequent vehicle access control.
2. What boom arm lengths are available?
The barrier gate supports 3m, 4.5m, and 6m boom arm lengths. It can be configured according to different entrance widths and site requirements.
3. What opening speed options are available?
The available opening and closing speeds include 1.5s, 3s, and 6s, depending on the selected configuration and boom arm length.
4. Is this barrier gate suitable for parking lots?
Yes. It is suitable for parking lots, residential communities, commercial buildings, industrial parks, logistics centers, and vehicle entrance control systems.
5. Does this barrier gate support folding arms?
Yes. Besides straight boom arms, this barrier gate can support 90° folding arms, 180° folding arms, telescopic boom arms, fence boom arms, and LED strip boom arms for different installation environments.
6. Can it be used in underground parking entrances?
Yes. For underground parking lots or low-ceiling areas, the 90° folding boom or 180° folding boom option is recommended.
7. What is the protection grade?
The protection grade is IP54, suitable for common outdoor and semi-outdoor parking entrance applications.
8. What is the operating temperature range?
The operating temperature range is -35°C to 75°C, making it suitable for various climates and installation environments.
9. What communication interfaces are available?
The barrier gate supports RS232 and RS485 communication interfaces, making it convenient to integrate with access control systems, parking management systems, RFID readers, and other control devices.
10. What input signals does the barrier gate support?
It supports multiple input signals, including gate open, gate close, stop, ground sensor, and anti-crush signals. This makes it easy to connect with loop detectors, safety sensors, radar sensors, and access control devices.
11. Does it support anti-crush protection?
Yes. The system supports an anti-crush input signal, which can work with external safety devices such as loop detectors, photocells, or radar sensors to improve vehicle and pedestrian safety.
12. Can the barrier gate open during power failure?
Yes. It supports opening by an external 12V 1Ah battery during power failure.
13. What power supply does it use?
The barrier gate uses 220V ±10%, 50/60Hz power supply, with 24V DC input voltage for the motor system.
14. Is the barrier gate easy to install and maintain?
Yes. The product is designed with a simplified mechanical structure, which helps make installation, servicing, and routine maintenance easier.
15. What safety or protection features are included?
The hardware protection includes overcurrent protection, overvoltage protection, and short-circuit protection. These features help improve operational stability and protect key components.
16. Does it have an auto-lock function?
Yes. The barrier gate can be locked at any angle between 0° and 90°, helping improve stability and control during operation.

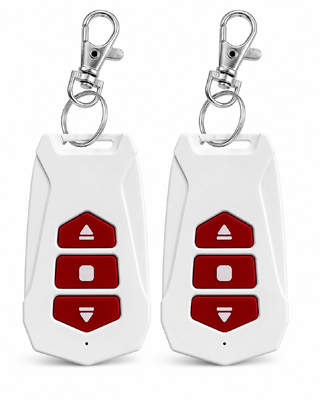

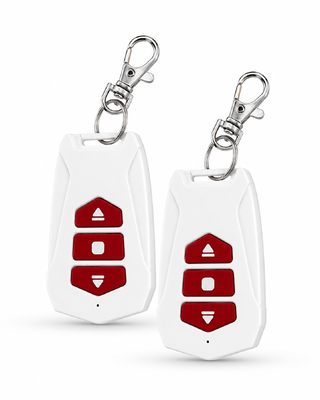

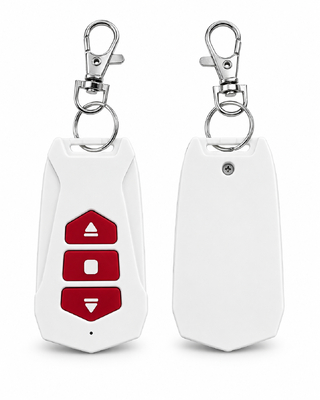

17. What is the remote control distance?
The remote control distance is ≤ 35m, depending on the installation environment and signal conditions.
18. Can this barrier gate work with RFID readers or parking systems?
Yes. It can be integrated with RFID readers, license plate recognition systems, loop detectors, radar sensors, access control systems, and parking management systems.
19. Which boom arm should I choose?
For standard parking entrances, a straight boom arm is usually recommended. For low-ceiling areas, choose a folding boom arm. For wider lanes, choose a telescopic boom or longer straight boom. For higher access control requirements, a fence boom can be selected.
20. Is this barrier gate suitable for high-traffic entrances?
Yes. The DC brushless motor, dual-spring balance system, and fast-start/slow-stop operation make it suitable for entrances with frequent vehicle flow, such as parking lots, communities, industrial parks, and commercial entrances.
Tags:

Security Barrier Gate

Automatic Parking Barrier Gate

Heavy Duty Barrier Gate
