Gate Boom Barrier
>

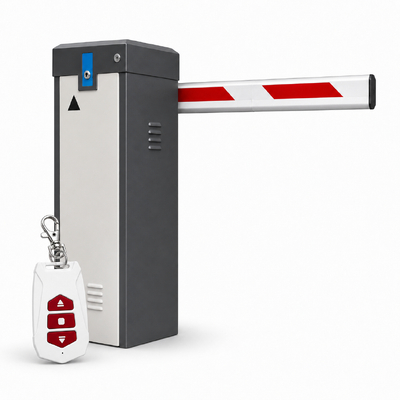

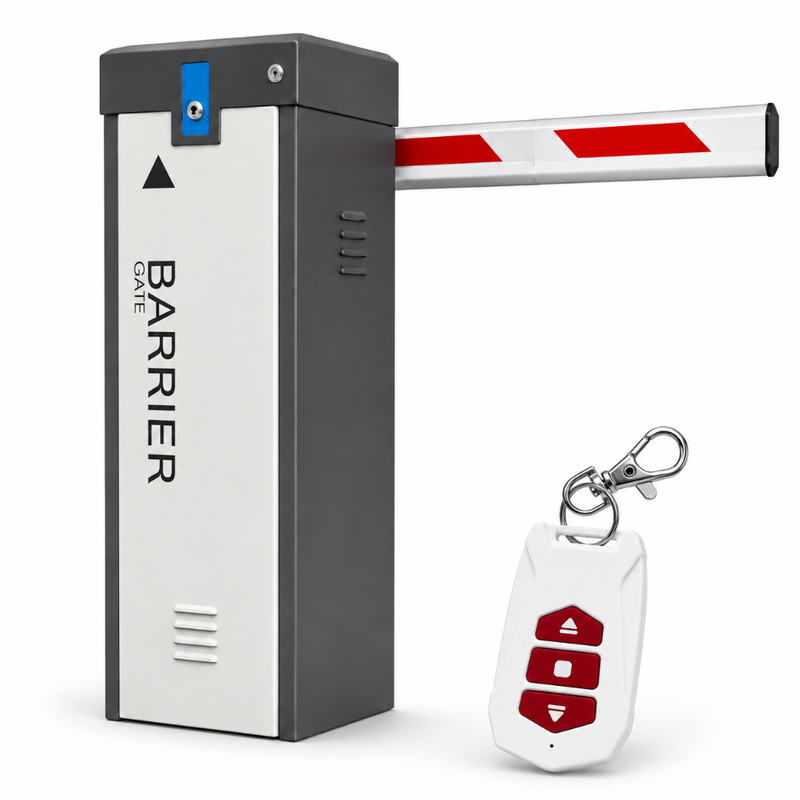

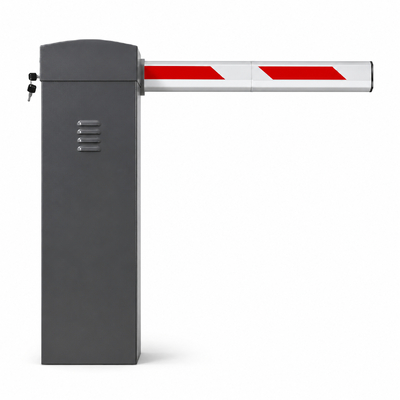

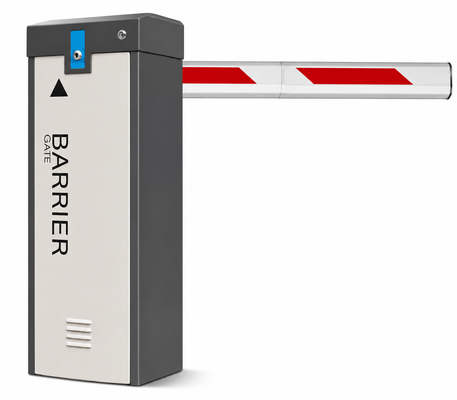

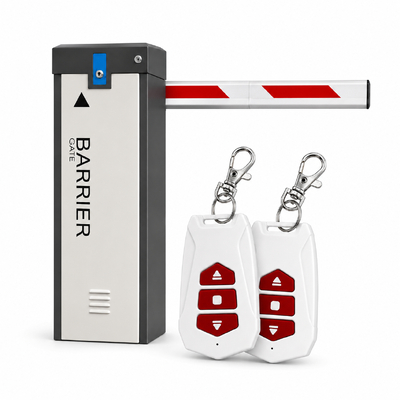

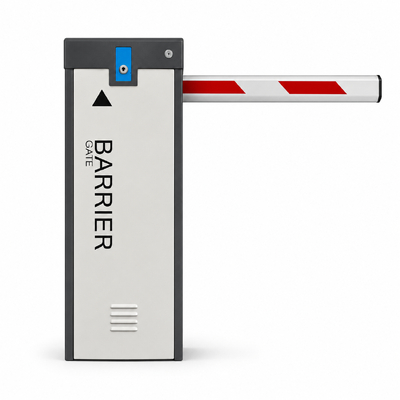

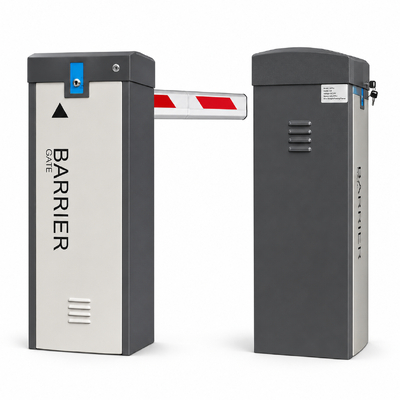

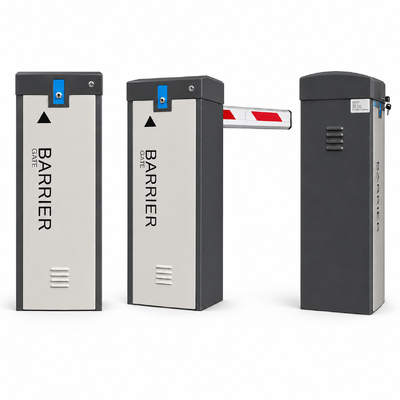

Heavy Duty Automatic Boom Barrier for Parking Lots Logistics Centers and Secure Vehicle Entrances

Heavy Duty Automatic Boom Barrier for Parking Lots Logistics Centers and Secure Vehicle Entrances

Brand Name: JUTAI
Model Number: A9
MOQ: Support 1-10 set for Sample
Price: 250-260 USD
Packaging Details: 107*38.5*42.5 cm 51kg Carton
Payment Terms: T/T,Western Union,PayPal,Wechat,Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE
Model:
A9
Product Name:
DC Barrier Gate
Input Voltage:
24V
Power Supply:
220V ±10%, 50/60Hz
Rated Power:
100W
Rated / Peak Current:
8A / 30A
Motor Type:
DC Brushless Motor
Motor No-Load Speed:
450RPM
Communication Interface:
RS232 / RS485
Hardware Protection:
Overcurrent Protection, Overvoltage Protection, Short-Circuit Protection
Input Signals:
Gate Open, Gate Close, Stop, Ground Sense, Anti-Crush
Output Signals:
Dry Contacts For Fully Opened And Fully Closed Positions
Power Failure Gate Opening:
External 12V 1Ah Battery
Operating Temperature:
-35°C To 75°C
Operating Humidity:
90% Without Condensation
Protection Grade:
IP 54
Remote Control Distance:
≤35m
Barrier Arm Length:
1-6m
Opening Time:
1.5s / 3s / 6s
Supply Ability:
500 set / per month
Highlight:

heavy duty automatic boom barrier

,

parking lot boom barrier

,

secure vehicle entrance barrier

Product Description

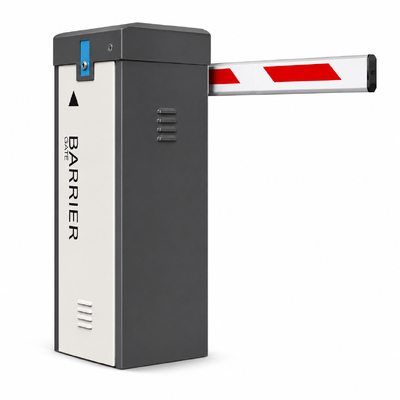

Heavy Duty Automatic Boom Barrier for Parking Lots Logistics Centers and Secure Vehicle Entrances
Product Description

The Heavy Duty Automatic Boom Barrier for Parking Lots, Logistics Centers and Secure Vehicle Entrances is built for demanding vehicle access control environments that require durability, continuous operation and stable performance under high traffic conditions. Powered by a reliable DC brushless motor system, the barrier gate delivers efficient operation with reduced mechanical wear, making it suitable for logistics parks, industrial facilities, commercial parking areas, warehouses and secured vehicle checkpoints. Its reinforced structure and intelligent control design help maintain smooth and dependable access management throughout long daily operating hours.

Designed for flexible project requirements, the system supports multiple boom arm types including straight boom arms, fence booms, telescopic arms and folding arms for different lane widths and site layouts. The adjustable opening speeds of 1.5s, 3s and 6s allow operators to balance traffic efficiency and operational safety according to real-world vehicle flow conditions. The integrated dual-spring balance system further improves movement stability and reduces motor load during continuous opening and closing cycles.

To support modern intelligent parking systems, the barrier gate includes RS232 and RS485 communication interfaces for connection with RFID readers, parking software, loop detectors, radar sensors and license plate recognition systems. Additional safety functions such as anti-crush input support, overload protection and short-circuit protection help improve operational reliability in commercial and industrial environments. The system also supports backup battery and optional super capacitor configurations to maintain emergency access operation during temporary power interruptions, ensuring more secure and uninterrupted vehicle management.

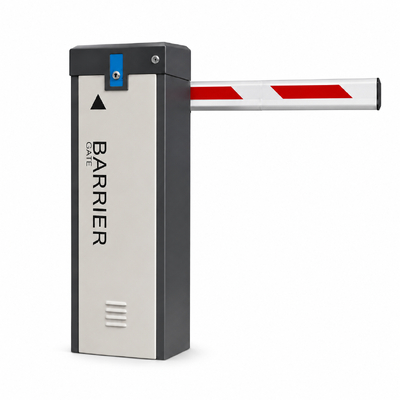

Heavy Duty Automatic Boom Barrier for Parking Lots Logistics Centers and Secure Vehicle Entrances 0


Key Features
  • High-Efficiency DC Brushless Motor

    The A9 barrier gate uses a DC brushless motor for efficient and stable operation. It helps reduce power consumption, lowers mechanical wear and supports long-term reliable performance.

  • Dual-Spring Balance Design

    The dual-spring structure helps balance the boom arm load, reducing stress on the motor and transmission system. This design improves operation stability and extends service life.

  • Multiple Opening Speed Options

    The A9 supports 1.5s, 3s and 6s open/close speed options, allowing customers to choose the right model according to traffic flow, boom length and site requirements.

  • Fast-Start and Slow-Stop Operation

    The motor supports fast-start and slow-stop technology. This makes the boom arm movement smoother, reduces impact at the end position and improves user experience.

  • Auto-Lock Function

    The barrier gate can be locked at any angle between 0° and 90°, improving operational safety and stability during use.

  • Easy Installation and Maintenance

    The simplified mechanical design allows easier installation, adjustment and maintenance. This is especially useful for installers, parking system integrators and maintenance teams.

  • Multiple Boom Arm Options

    The A9 supports straight boom, telescopic boom, 90° folding boom, 180° folding boom, fence boom and LED strip boom options. It can adapt to standard parking lots, underground parking, low-ceiling entrances and special vehicle access layouts.

  • Safety Input and Output Support

    The system supports input signals such as gate open, gate close, stop, ground sense and anti-crush. It also provides dry contact outputs for fully opened and fully closed status.

  • RS232 / RS485 Communication

    With RS232 and RS485 communication interfaces, the A9 can be integrated into parking management systems, access control platforms and smart entrance control solutions.

  • Wide Operating Temperature Range

    The A9 can operate from -35°C to 75°C, making it suitable for hot, cold and demanding outdoor environments.

  • Backup Battery & Super Capacitor Support

    The barrier gate supports an external 24V 1Ah backup battery, which can provide up to 200 operating cycles during power failure, helping maintain normal vehicle access when the main power supply is interrupted.

    It can also be equipped with a super capacitor option, allowing the barrier arm to open 1–2 times after power outage for emergency access or manual site recovery.


Product Advantages for Buyers
For Parking System Integrators

The A9 provides RS232 / RS485 communication, multiple input and output signals, and flexible arm configurations. It is easy to integrate with parking systems, RFID access systems, loop detectors, radar sensors and automatic control equipment.

For Property Managers

The product offers stable operation, smooth movement and low maintenance requirements. It helps improve entrance management efficiency and gives the site a cleaner, more professional appearance.

For Contractors and Installers

The simplified mechanical design and flexible boom arm options make the A9 easier to install and maintain. Different speed and arm configurations allow installers to match the barrier gate to different site conditions.

For Industrial and Commercial Sites

With a wide operating temperature range and reliable DC brushless motor, the A9 is suitable for factories, logistics parks, industrial entrances, commercial buildings and other high-use vehicle access locations.


Why Choose JUTAI A9 DC Barrier Gate?

The JUTAI A9 DC Barrier Gate is not only a vehicle access control product but also a complete entrance management component designed for long-term practical use. It combines a DC brushless motor, dual-spring balance system, multiple boom arm options and smart control interfaces to meet the needs of different parking and access control projects.

With flexible speed options, stable performance and professional design, the A9 barrier gate is suitable for both standard parking entrances and customized access control solutions. Whether used in residential communities, commercial parking lots, industrial parks or logistics entrances, it provides a reliable and efficient way to manage vehicle traffic.


Price
Category Item Specification / Unit Price
Main Product Boom Barrier with 1–6m Straight Arm 1 set USD 270–280 / set
Optional Accessory Light Strip 1 meter USD 2 / m
Optional Accessory Safety Edge 1 set USD 23 / set
Optional Accessory Infrared Sensor 1 set USD 10 / set
Optional Accessory Single Channel Loop Detector 1 unit USD 35 / unit
Optional Accessory Dual Channel Loop Detector 1 unit USD 55 / unit
Optional Accessory Radar Safety Sensor 1 unit USD 50 / unit
Optional Accessory 24 V 6 Ah Backup Battery Running 500+ Times When Power Off 1 unit USD 25 / unit
Optional Accessory Emergency Super Capacitor, running 1 time when Power Off 1 pcs USD 13 / unit
Device Function
RFID Reader Long-range vehicle identification
Loop Detector Vehicle presence detection
Radar Safety Sensor Anti-smashing and vehicle detection
Infrared Photocell Safety protection for vehicles and pedestrians

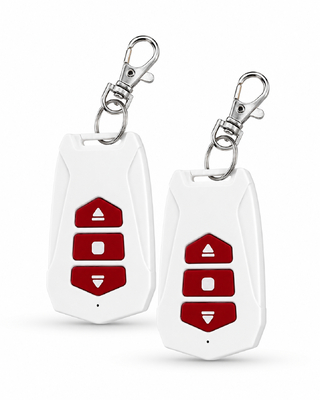

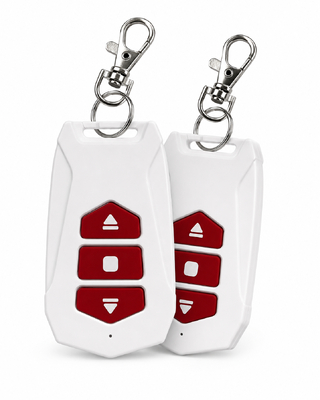

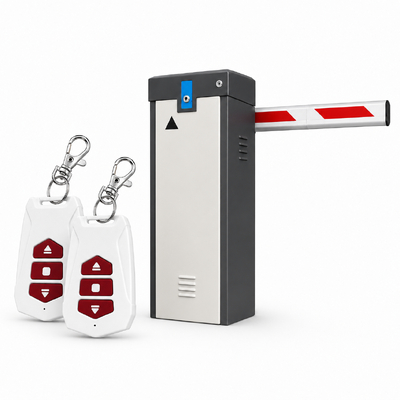

Remote Control Manual open / close control
Parking Management Software Centralized access control and vehicle management
License Plate Recognition Camera Automatic vehicle entry and exit management
LED Light Strip Boom Arm Better visibility and site safety
Application Use Case
Parking Lots Vehicle entry and exit control
Residential Communities Car access management for residents and visitors
Commercial Buildings Professional vehicle entrance control
Industrial Parks High-frequency vehicle access and logistics control
Office Buildings Controlled parking entrance and exit
Shopping Centers Parking access and traffic flow management
Logistics Centers Truck and vehicle passage management
Underground Parking Folding arm options for low-ceiling areas
Toll or Checkpoint Areas Controlled boom barrier operation
Smart Parking Systems Integration with RFID, LPR, loop detector and access control systems

FAQ
Q1: What is the maximum boom arm length of the A9 barrier gate?

The A9 supports boom arm lengths of 3m, 4.5m and 6m, depending on the selected model and arm type.

Q2: What opening speeds are available?

The A9 supports 1.5s, 3s and 6s opening speed options. Some model versions are listed as 1.8s, 3s and 6s in the model selection table.

Q3: Does the A9 barrier gate use a DC motor?

Yes. The A9 uses a DC brushless motor, offering efficient operation, stable performance and reduced maintenance.

Q4: Can the A9 barrier gate connect with parking management systems?

Yes. It supports RS232 / RS485 communication interfaces and multiple input/output signals, making it suitable for integration with parking systems, RFID systems, loop detectors, radar sensors and access control devices.

Q5: Can this barrier gate be used for underground parking?

Yes. The A9 supports 90° and 180° folding boom arms, which are suitable for underground parking lots and low-ceiling environments.

Q6: Does the A9 support anti-crush protection?

Yes. The A9 supports anti-crush input and can work with safety devices such as infrared sensors, loop detectors or radar safety sensors.

Q7: What is the operating temperature range?

The A9 can operate from -35°C to 75°C, making it suitable for different outdoor environments.

Q8: What accessories are available?

Optional accessories include LED strip boom, telescopic boom, straight boom, 90° folding boom, 180° folding boom and fence boom.

Q9: How do I place an order for the A9 Barrier Gate?

You can contact our sales team by email at marketing@jutaigateaccess.com or by WhatsApp at +86 13143400257.
Please send us your required product quantity and company information. After confirming the details, our sales team will provide a Proforma Invoice for your order. Once the payment is completed, we will arrange production, packing and shipment on time according to the agreed schedule.

Q10: What trade terms do you support?

Our factory’s default trade term is EXW. We also support FOB, CIF and other common international trade terms according to your order requirements.
If you have your own freight forwarder, they can arrange pickup from our factory. If you do not have a freight forwarder, we can also help arrange shipment through our long-term cooperative logistics partners to support safe and efficient delivery.

Q11: Are you a manufacturer or a trading company?

We are a manufacturer.
Relying on China’s complete and mature supply chain system, we customize our own components from professional parts manufacturers according to our product design and quality requirements. These components are then delivered to our factory for unified assembly, production, testing and quality control.
This allows us to maintain stable product quality, flexible customization capability and better control over the complete production process.
