Vehicle Loop Detector
>
JUTAI Single Channel Loop Detector LD-100 LD-102

JUTAI Single Channel Loop Detector LD-100 LD-102

Brand Name: JUTAI
Model Number: LD-100 LD
MOQ: Support 1-10 Pcs for Sample
Price: 33-38 USD
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Paypal,Alipay
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE FCC
Document:
Voltage Supply:
100-240 VAC 48 To 62Hz
Working Type:
-40 To +70 ℃ (-111°F To +158°F)
Package:
Carton
Self-turning Range:
20-2000uh
Sensitivity:
16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L
Response Times:
10-90 MS
Humidity:
95% Non-condensing
HS Code:
9033000090
Product Size:
76*42*110 Mm
Package Size:
136*86*52 Mm
Net Weight:
195 G
Gross Weight:
300 G
Relay Output:
Presence Relay / Fault Relay
Warranty:
2 Year
Color:
Green
Loop Connection:
Twisted Pair Cable
Name:
Vehicle Loop Detector
Supply Ability:
5000 Pcs per Month
Highlight:

JUTAI single channel loop detector

,

vehicle loop detector LD-100

,

loop detector LD-102 with warranty

Product Description

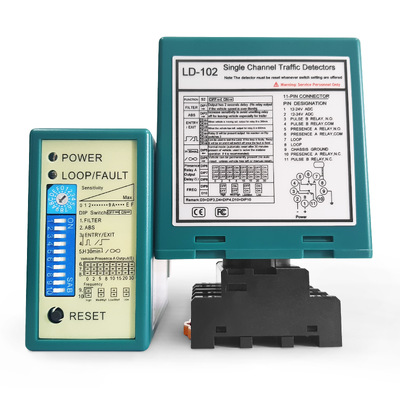

JUTAI Single Channel Loop Detector LD-100 LD-102



With the continuous advancement of modern smart city construction, refined urban traffic management, unmanned operation of access points, and intelligent security in public areas have become the core directions for the upgrading of urban governance. As the most mature and stable underlying sensing component within traffic perception and vehicle management systems, loop vehicle detectors feature round-the-clock reliable operation, strong resistance to environmental interference, and high detection accuracy, leading to an expanding range of application scenarios in modern urban construction.



They are widely installed at the entrances and exits of smart parking lots in urban commercial complexes, residential communities and office buildings, and also extensively deployed in numerous scenarios including traffic light signal control on municipal roads, roadside smart parking space detection, toll stations on expressways and national/provincial highways, freight passage management in industrial and logistics parks, linkage control of urban security bollards, fully automatic car washing stations, and motor vehicle inspection lines. Serving as core fundamental equipment for automatic vehicle access control, traffic flow data collection and intelligent site scheduling, they underpin the efficient and unmanned operation of urban traffic and space management.



The high-performance single-channel loop detector from JUTAI is fully tailored to diverse deployment demands of modern urban construction. It can flexibly accommodate on-site requirements of varying construction conditions, power supply environments and vehicle model detection, boasting outstanding scenario compatibility and long-term operational stability. It delivers solid and dependable underlying detection support for various urban intelligent traffic systems and automated access control solutions, facilitating the implementation and efficient operation of intelligent urban management.


loop detector application



Features


1. Ultra-Wide Inductance Range: 15–2000 μH


The detector supports an ultra-wide loop inductance range of 15–2000 μH, making it compatible with loops of different sizes, shapes, and numbers of turns.


It can reliably detect a wide range of vehicle types, including motorcycles, passenger cars, vans, trucks, heavy-duty vehicles, and long trailers. Vehicles with different chassis heights and metal masses can be detected accurately, making the detector suitable for various entrances, exits, roads, and traffic control applications.




2. Independent Pulse Relay and Presence Relay Outputs


The detector features two independent relay outputs: a pulse relay and a presence relay. Each output can be connected to a different control device without interfering with the other.


The pulse relay provides a momentary trigger signal for applications such as opening a barrier gate, activating a camera, or starting equipment.


The presence relay provides a continuous vehicle-presence signal for applications such as barrier anti-crushing protection and vehicle occupancy detection.


One detector can therefore support both trigger control and continuous presence monitoring.




3. Adjustable Presence Relay Delay


The presence relay supports an adjustable release delay. The delay time can be configured according to the actual traffic flow and operating requirements.


This function helps reduce false triggering caused by vehicles following too closely, pedestrians entering the detection area, or short-term electromagnetic interference. It also ensures smoother barrier closing and equipment operation while reducing unnecessary repeated switching.




4. Unlimited Vehicle Presence Time


The detector supports continuous vehicle presence output without a time limit.


When a vehicle remains above the loop for an extended period, the presence relay stays activated and does not automatically reset due to timeout.


This is ideal for truck loading areas, parking space occupancy detection, slow-moving long vehicles, and other applications where vehicles may remain on the loop for a long time. It helps prevent accidental barrier closing or unexpected equipment shutdown.




5. 16-Level Sensitivity Adjustment


The detector provides 16 sensitivity levels for precise field adjustment.


Sensitivity can be configured according to the loop size, installation depth, electromagnetic environment, and target vehicle type.


Higher sensitivity can be selected for motorcycles or smaller vehicles, while lower sensitivity can be used in environments with strong electrical interference to reduce false triggering.




6. ASB Automatic Sensitivity Boost


The built-in ABS automatic sensitivity boost function increases sensitivity after a vehicle is detected and continuously maintains vehicle presence detection.


This function is especially useful for high-chassis trucks, trailers, and long vehicles with relatively weak metal induction signals.


It helps prevent signal loss while the vehicle is passing over the loop, ensuring stable and continuous detection throughout the entire vehicle passage.




7. Four Selectable Operating Frequencies


The detector provides four selectable operating frequencies.


In applications with adjacent loops, multiple lanes, dual-loop systems, or closely installed parking spaces, nearby loops can be set to different frequencies.


This effectively reduces electromagnetic crosstalk between loops and helps prevent false triggering or missed detection in multi-device installations.




8. Wide Power Supply Range


The detector is available with wide-voltage power supply options:

  • 12–24V AC/DC

  • 100–240V AC


This allows direct installation in parking facilities, industrial parks, toll stations, construction sites, and other locations with different power supply conditions.


No additional dedicated power conversion equipment is required, reducing installation complexity and cost.




9. Plug-In Base Design


The detector uses a detachable plug-in structure consisting of a mounting base and a main unit.


The base can be installed and wired in advance. During commissioning or maintenance, the main unit can simply be plugged into the base.


This design makes installation, replacement, and maintenance faster and eliminates the need to reconnect all wiring when changing the detector.




10. DIP Switch Parameter Setting


All major parameters are adjusted through physical DIP switches.


No computer, software, or programming tool is required. Installers can quickly configure sensitivity, operating frequency, relay delay, and other settings directly on site.


This simplifies commissioning and significantly reduces installation time.




11. LED Status Indicators


The detector is equipped with LED status indicators for quick fault diagnosis.


Different indicator states help users distinguish between detector faults and loop circuit faults.


Maintenance personnel can quickly identify the source of a problem without checking every wire individually, reducing troubleshooting and repair time.




12. Reset Button


The built-in Reset button allows the detector to restart quickly during commissioning or operation.


If the detector freezes, operates abnormally, or requires recalibration, pressing the Reset button restores normal operation without disconnecting the power or rewiring the system.


This makes field commissioning and fault recovery faster and more efficient.



connection

connection

vihicle loop detector

vehicle loop detector





 Debug Details

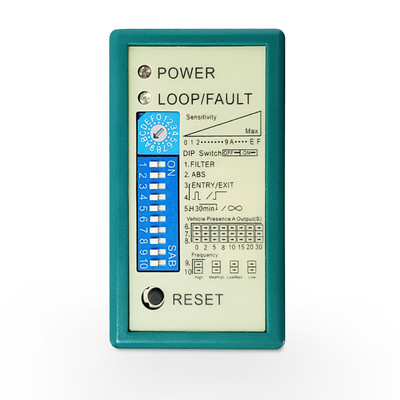

loop detector indicator light

LED Indicator Status

The upper RED LED indicates the power status, while the lower GREEN LED indicates vehicle detection and loop condition.

During normal operation, the red LED remains illuminated. When a vehicle enters the detection area, the green LED turns on.

If the RED LED is off, please check the external power supply or the internal fuse.

If the GREEN LED flashes during installation, please refer to the following instructions:

  • Standard flashing: A loop short circuit or wiring fault may have occurred. Please inspect the wiring and reinstall the loop if necessary.
  • Rapid flashing: The loop inductance is too low. Please set DIP switches 9 and 10 to High. If the issue persists, please increase the number of loop turns.
  • Slow flashing: The loop inductance is too high. Please set DIP switches 9 and 10 to Low. If the issue persists, please reduce the number of loop turns.

Loop Detector Sensitivity

Sensitivity Adjustment

SWITCH1 is a 16-position rotary switch used to adjust detection sensitivity. The available settings range from 0–9 and A–F. Please use a small flat-head screwdriver to rotate the switch until the arrow points to the required setting.

Sensitivity increases progressively from 0 to F:

  • 0: Lowest sensitivity
  • F: Highest sensitivity

If vehicles are not detected reliably, please increase the sensitivity gradually. If false triggering occurs, please reduce the sensitivity. It is recommended to adjust one level at a time and select the most suitable setting according to actual site conditions.

Loop detector relay delay

DIP 1: Delayed Confirmation and High-Speed Vehicle Filtering

When DIP 1 is set to ON, the relay output is delayed by approximately 2 seconds after a vehicle is detected. Vehicles travelling faster than 8 km/h will not trigger the relay output.

When a vehicle enters the induction loop, the system does not activate the relay immediately. It waits for approximately 2 seconds and only outputs a signal if the vehicle remains within the loop detection area.

This function helps filter out fast-moving vehicles or vehicles that pass briefly over the loop, reducing false triggering. It also ensures that the vehicle has slowed down, stopped, or reached the designated position before activating equipment such as a barrier gate, camera, or weighing system.

This function is suitable for parking entrances, toll stations, vehicle inspection areas, weighbridges, and other applications requiring low-speed vehicle confirmation.

Loop detector ASB

DIP 2: ASB — Automatic Sensitivity Boost

When DIP 2 is set to ON, the Automatic Sensitivity Boost (ASB) function is enabled. After a vehicle is initially detected, the detector automatically increases its sensitivity to maintain stable vehicle presence detection.

This function helps prevent detection loss when vehicles with high or uneven chassis profiles pass over the loop, particularly trucks, trailers, and semi-trailers.

Please note that enabling ASB may slightly reduce the detection response speed.



Loop detector

DIP 3 & DIP 4: Relay B Output Mode

DIP 3 and DIP 4 are used to configure the operating mode of Relay B.

DIP 3 OFF / DIP 4 OFF — Entry Pulse Output
Relay B generates a momentary pulse when a vehicle enters the induction loop. This mode is suitable for barrier activation, entry image capture, and vehicle counting.

DIP 3 ON / DIP 4 OFF — Exit Pulse Output
Relay B generates a momentary pulse when a vehicle leaves the induction loop. This mode is suitable for exit image capture, departure counting, and other exit-triggered functions.

DIP 3 OFF / DIP 4 ON — Presence Output
Relay B remains activated while a vehicle is present over the loop and resets after the vehicle leaves. This mode is suitable for barrier anti-crushing protection, vehicle presence confirmation, and gate-hold-open applications.

DIP 3 ON / DIP 4 ON — Relay B Disabled
Only Relay A provides an output, while Relay B is disabled. This mode is suitable for applications requiring a single relay output.

single channel loop detector

DIP 5: Vehicle Presence Mode

DIP 5 is used to configure the vehicle presence detection mode.

DIP 5 ON — Permanent Presence Mode
The detector maintains the vehicle presence output continuously while the vehicle remains over the loop. The output resets only after the vehicle leaves. This mode is suitable for barrier anti-crushing protection, gate hold-open control, and long-term vehicle presence detection.

DIP 5 OFF — Limited Presence Mode
If a vehicle remains over the loop beyond the preset period, the detector automatically resets and treats the loop as unoccupied. This mode helps reduce unwanted operation caused by prolonged vehicle presence or environmental interference.

For standard applications, it is recommended to set DIP 5 to OFF.

single channel loop detector

DIP 6, DIP 7 & DIP 8: Relay A Release Delay

DIP 6, DIP 7, and DIP 8 are used to set how long Relay A remains activated after the vehicle leaves the induction loop. The relay resets automatically once the selected delay time has elapsed.

Available delay settings:

  • OFF / OFF / OFF: 0 seconds
  • ON / OFF / OFF: 2 seconds
  • OFF / ON / OFF: 5 seconds
  • ON / ON / OFF: 8 seconds
  • OFF / OFF / ON: 10 seconds
  • ON / OFF / ON: 15 seconds
  • OFF / ON / ON: 20 seconds
  • ON / ON / ON: 30 seconds

This function is suitable for delayed barrier closing, gate hold-open control, continuous vehicle passage, and applications requiring additional response time for cameras, controllers, or other connected equipment.

single channel loop detector

DIP 9 & DIP 10: Operating Frequency Setting

DIP 9 and DIP 10 are used to adjust the induction loop operating frequency within a range of approximately 40–80 kHz.

DIP 9 OFF / DIP 10 OFF — High Frequency
DIP 9 ON / DIP 10 OFF — Medium-High Frequency
DIP 9 OFF / DIP 10 ON — Medium-Low Frequency
DIP 9 ON / DIP 10 ON — Low Frequency

When two or more loops of similar size are installed close to each other, please set the adjacent loops to different operating frequencies. This helps prevent crosstalk and mutual interference, ensuring stable and reliable vehicle detection.

loop detector reset button

RESET Button: Manual Reset and Recalibration

The built-in RESET button allows the loop detector to restart and reinitialize quickly during commissioning or operation.

Press the RESET button when the detector operates abnormally, becomes unresponsive, or requires recalibration. This restores normal operation without disconnecting the power supply or rewiring the system.

After changing the operating frequency using DIP 9 and DIP 10, please press the RESET button to apply the new settings and allow the detector to relearn the current loop parameters.

This function makes on-site commissioning, parameter adjustment, and fault recovery faster and more efficient.






Application

Car Park Barrier, LPR, Ticket/ Card Dispenser

  • Trigger LPR camera capture, reduce invalid snapshots
  • Interact with ticket dispenser: allow card-taking/payment only when vehicle arrives
  • Automatically lift barrier gate; auto-lower gate after vehicle passes
  • Anti-crash protection via loop detector under barrier arm
  • Detect tailgating vehicles to prevent fare evasion
  • Filter pedestrians & non-motor vehicles to avoid false triggers
  • Count inbound & outbound vehicles
loop detector application

Industrial Door

  • Automatically open industrial door when vehicle drives over the loop
  • Hold door open while vehicle stays within detection zone
  • Auto-close door with delay after vehicle fully leaves
  • Anti-collision protection: stop door descent if vehicle remains underneath
  • Eliminate false activation triggered by pedestrians or trolleys
loop detector application

Sliding Door, Auto Gate

  • Trigger sliding gate to auto open when vehicle passes the loop
  • Keep gate open as long as vehicle stays in detection range
  • Auto close sliding gate with adjustable delay after vehicle fully exits
  • Anti-collision safety: pause gate closing if vehicle is still detected
  • Prevent false opening caused by pedestrians, bikes or carts
  • Link with license plate camera to activate snapshot capture
loop detector application

Traffic Signal

  • Detects vehicles on one lane to request green light
  • Triggers red-light running capture at stop line
  • Counts vehicles for basic traffic flow statistics
  • Supports basic adaptive green timing adjustment
  • Skips green phase for empty lanes to boost efficiency
  • Outputs relay signals to signal controllers and cameras
loop detector application

Bollards

  • Triggers bollard to lower automatically when vehicle arrives
  • Delays bollard re-rising after vehicle fully leaves detection zone
  • Anti-collision: halts bollard ascent if vehicle stays underneath
  • Filters pedestrians & non-motor vehicles to avoid false activation
  • Outputs relay signals to connect with bollard control system
  • Fits single-lane bollard access points with one detection zone
loop detector application

High Bed Vehicle



Used to detect high bed vehicles.

Used in carparks, streets, factories, warehouses.

Automatic sensitivity boost (ASB) ensures a reliable detection of high bed vehicle

such as buses and trucks.

loop detector application

ETC

  • Triggers ETC antenna to start toll collection when vehicle enters
  • Controls barrier gate to lower automatically after vehicle passes
  • Provides anti-crash protection by keeping gate open if vehicle remains
  • Counts passing vehicles for traffic statistics and toll reconciliation
  • Filters pedestrians and non-motor vehicles to avoid false transactions
  • Outputs relay signals to interface with ETC lane controller
loop detector application

Weighing System

  • Triggers weighbridge system to start automatically when vehicle arrives
  • Verifies vehicle is fully on scale for accurate weighing results
  • Resets weighing equipment after vehicle fully exits for next use
  • Interlocks with barrier gate to release vehicle post weighing
  • Counts weighed vehicles for transaction records and statistics
  • Filters pedestrians & non-motor vehicles to avoid false triggers
loop detector application














Size and Package Size

loop detector size JUTAI Single Channel Loop Detector LD-100 LD-102 23






 Production


loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

production

production



 Certification

vehicle loop detector





Product Series

LD-100 LD-102 LD-200 LD-202 JTHT-11

high sensitive loop detector

Single Channel

100-240 V AC

loop detector

Single Channel

12-24 V AC/DC

loop detector

Dual Channel

100-240 V AC

loop detector

Dual Channel

12-24 V AV/DC

loop cable

Loop cable

305 m Teflon coil

LCR-MT



multimeter


Multimeter












Good price  online

Products Details

Home > Products >
Vehicle Loop Detector
>

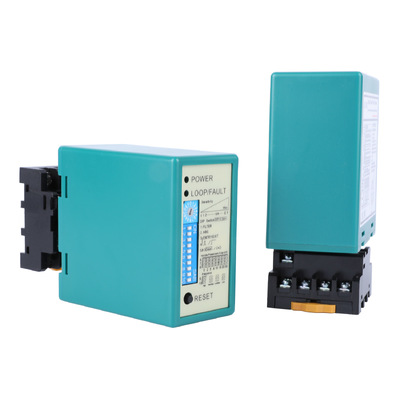

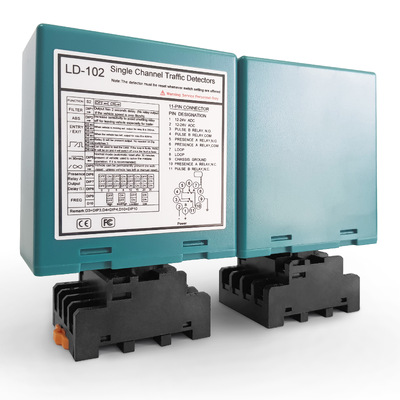

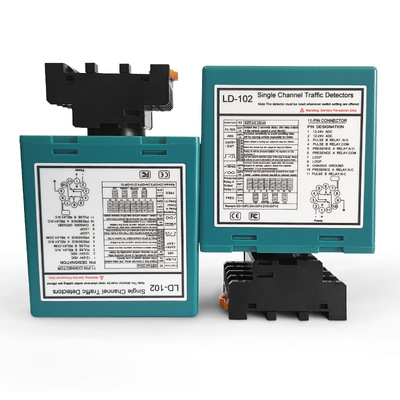

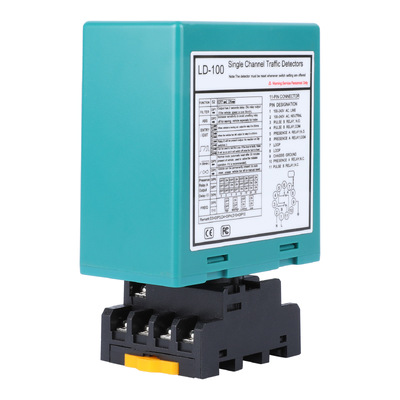

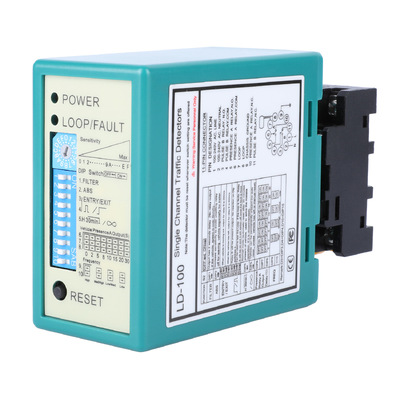

JUTAI Single Channel Loop Detector LD-100 LD-102

JUTAI Single Channel Loop Detector LD-100 LD-102

Brand Name: JUTAI
Model Number: LD-100 LD
MOQ: Support 1-10 Pcs for Sample
Price: 33-38 USD
Packaging Details: 50 Pcs 1 Carton
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Paypal,Alipay
Detail Information
Place of Origin:
Shenzhen China
Brand Name:
JUTAI
Certification:
CE FCC
Model Number:
LD-100 LD
Document:
Voltage Supply:
100-240 VAC 48 To 62Hz
Working Type:
-40 To +70 ℃ (-111°F To +158°F)
Package:
Carton
Self-turning Range:
20-2000uh
Sensitivity:
16 Way Selectable/Highest 0.01% DL/L / Lowest 2.56% DL/L
Response Times:
10-90 MS
Humidity:
95% Non-condensing
HS Code:
9033000090
Product Size:
76*42*110 Mm
Package Size:
136*86*52 Mm
Net Weight:
195 G
Gross Weight:
300 G
Relay Output:
Presence Relay / Fault Relay
Warranty:
2 Year
Color:
Green
Loop Connection:
Twisted Pair Cable
Name:
Vehicle Loop Detector
Minimum Order Quantity:
Support 1-10 Pcs for Sample
Price:
33-38 USD
Packaging Details:
50 Pcs 1 Carton
Delivery Time:
5-8 working day
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,Paypal,Alipay
Supply Ability:
5000 Pcs per Month
Highlight:

JUTAI single channel loop detector

,

vehicle loop detector LD-100

,

loop detector LD-102 with warranty

Product Description

JUTAI Single Channel Loop Detector LD-100 LD-102



With the continuous advancement of modern smart city construction, refined urban traffic management, unmanned operation of access points, and intelligent security in public areas have become the core directions for the upgrading of urban governance. As the most mature and stable underlying sensing component within traffic perception and vehicle management systems, loop vehicle detectors feature round-the-clock reliable operation, strong resistance to environmental interference, and high detection accuracy, leading to an expanding range of application scenarios in modern urban construction.



They are widely installed at the entrances and exits of smart parking lots in urban commercial complexes, residential communities and office buildings, and also extensively deployed in numerous scenarios including traffic light signal control on municipal roads, roadside smart parking space detection, toll stations on expressways and national/provincial highways, freight passage management in industrial and logistics parks, linkage control of urban security bollards, fully automatic car washing stations, and motor vehicle inspection lines. Serving as core fundamental equipment for automatic vehicle access control, traffic flow data collection and intelligent site scheduling, they underpin the efficient and unmanned operation of urban traffic and space management.



The high-performance single-channel loop detector from JUTAI is fully tailored to diverse deployment demands of modern urban construction. It can flexibly accommodate on-site requirements of varying construction conditions, power supply environments and vehicle model detection, boasting outstanding scenario compatibility and long-term operational stability. It delivers solid and dependable underlying detection support for various urban intelligent traffic systems and automated access control solutions, facilitating the implementation and efficient operation of intelligent urban management.


loop detector application



Features


1. Ultra-Wide Inductance Range: 15–2000 μH


The detector supports an ultra-wide loop inductance range of 15–2000 μH, making it compatible with loops of different sizes, shapes, and numbers of turns.


It can reliably detect a wide range of vehicle types, including motorcycles, passenger cars, vans, trucks, heavy-duty vehicles, and long trailers. Vehicles with different chassis heights and metal masses can be detected accurately, making the detector suitable for various entrances, exits, roads, and traffic control applications.




2. Independent Pulse Relay and Presence Relay Outputs


The detector features two independent relay outputs: a pulse relay and a presence relay. Each output can be connected to a different control device without interfering with the other.


The pulse relay provides a momentary trigger signal for applications such as opening a barrier gate, activating a camera, or starting equipment.


The presence relay provides a continuous vehicle-presence signal for applications such as barrier anti-crushing protection and vehicle occupancy detection.


One detector can therefore support both trigger control and continuous presence monitoring.




3. Adjustable Presence Relay Delay


The presence relay supports an adjustable release delay. The delay time can be configured according to the actual traffic flow and operating requirements.


This function helps reduce false triggering caused by vehicles following too closely, pedestrians entering the detection area, or short-term electromagnetic interference. It also ensures smoother barrier closing and equipment operation while reducing unnecessary repeated switching.




4. Unlimited Vehicle Presence Time


The detector supports continuous vehicle presence output without a time limit.


When a vehicle remains above the loop for an extended period, the presence relay stays activated and does not automatically reset due to timeout.


This is ideal for truck loading areas, parking space occupancy detection, slow-moving long vehicles, and other applications where vehicles may remain on the loop for a long time. It helps prevent accidental barrier closing or unexpected equipment shutdown.




5. 16-Level Sensitivity Adjustment


The detector provides 16 sensitivity levels for precise field adjustment.


Sensitivity can be configured according to the loop size, installation depth, electromagnetic environment, and target vehicle type.


Higher sensitivity can be selected for motorcycles or smaller vehicles, while lower sensitivity can be used in environments with strong electrical interference to reduce false triggering.




6. ASB Automatic Sensitivity Boost


The built-in ABS automatic sensitivity boost function increases sensitivity after a vehicle is detected and continuously maintains vehicle presence detection.


This function is especially useful for high-chassis trucks, trailers, and long vehicles with relatively weak metal induction signals.


It helps prevent signal loss while the vehicle is passing over the loop, ensuring stable and continuous detection throughout the entire vehicle passage.




7. Four Selectable Operating Frequencies


The detector provides four selectable operating frequencies.


In applications with adjacent loops, multiple lanes, dual-loop systems, or closely installed parking spaces, nearby loops can be set to different frequencies.


This effectively reduces electromagnetic crosstalk between loops and helps prevent false triggering or missed detection in multi-device installations.




8. Wide Power Supply Range


The detector is available with wide-voltage power supply options:

  • 12–24V AC/DC

  • 100–240V AC


This allows direct installation in parking facilities, industrial parks, toll stations, construction sites, and other locations with different power supply conditions.


No additional dedicated power conversion equipment is required, reducing installation complexity and cost.




9. Plug-In Base Design


The detector uses a detachable plug-in structure consisting of a mounting base and a main unit.


The base can be installed and wired in advance. During commissioning or maintenance, the main unit can simply be plugged into the base.


This design makes installation, replacement, and maintenance faster and eliminates the need to reconnect all wiring when changing the detector.




10. DIP Switch Parameter Setting


All major parameters are adjusted through physical DIP switches.


No computer, software, or programming tool is required. Installers can quickly configure sensitivity, operating frequency, relay delay, and other settings directly on site.


This simplifies commissioning and significantly reduces installation time.




11. LED Status Indicators


The detector is equipped with LED status indicators for quick fault diagnosis.


Different indicator states help users distinguish between detector faults and loop circuit faults.


Maintenance personnel can quickly identify the source of a problem without checking every wire individually, reducing troubleshooting and repair time.




12. Reset Button


The built-in Reset button allows the detector to restart quickly during commissioning or operation.


If the detector freezes, operates abnormally, or requires recalibration, pressing the Reset button restores normal operation without disconnecting the power or rewiring the system.


This makes field commissioning and fault recovery faster and more efficient.



connection

connection

vihicle loop detector

vehicle loop detector





 Debug Details

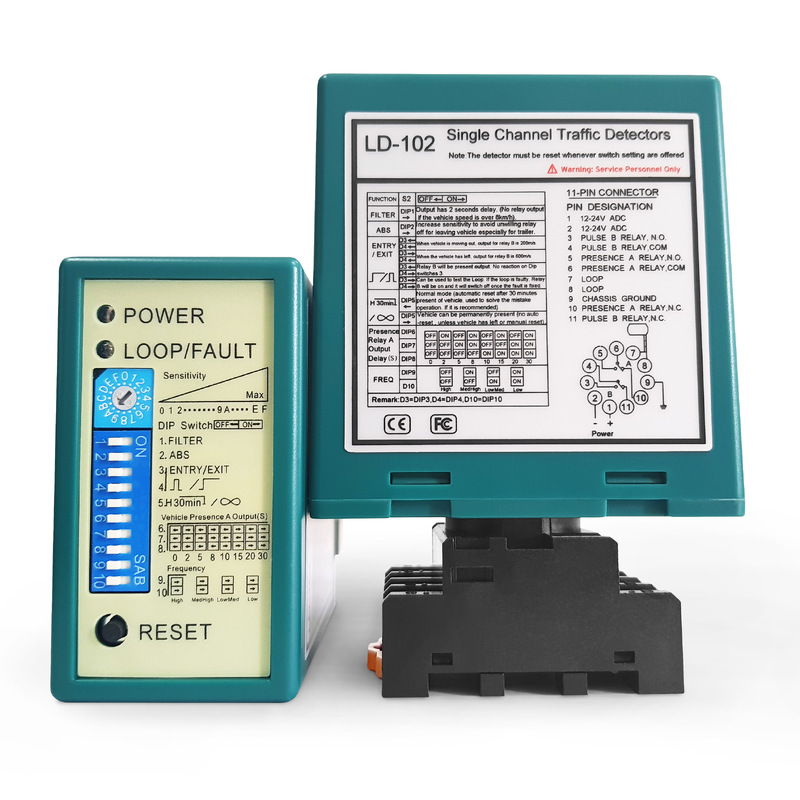

loop detector indicator light

LED Indicator Status

The upper RED LED indicates the power status, while the lower GREEN LED indicates vehicle detection and loop condition.

During normal operation, the red LED remains illuminated. When a vehicle enters the detection area, the green LED turns on.

If the RED LED is off, please check the external power supply or the internal fuse.

If the GREEN LED flashes during installation, please refer to the following instructions:

  • Standard flashing: A loop short circuit or wiring fault may have occurred. Please inspect the wiring and reinstall the loop if necessary.
  • Rapid flashing: The loop inductance is too low. Please set DIP switches 9 and 10 to High. If the issue persists, please increase the number of loop turns.
  • Slow flashing: The loop inductance is too high. Please set DIP switches 9 and 10 to Low. If the issue persists, please reduce the number of loop turns.

Loop Detector Sensitivity

Sensitivity Adjustment

SWITCH1 is a 16-position rotary switch used to adjust detection sensitivity. The available settings range from 0–9 and A–F. Please use a small flat-head screwdriver to rotate the switch until the arrow points to the required setting.

Sensitivity increases progressively from 0 to F:

  • 0: Lowest sensitivity
  • F: Highest sensitivity

If vehicles are not detected reliably, please increase the sensitivity gradually. If false triggering occurs, please reduce the sensitivity. It is recommended to adjust one level at a time and select the most suitable setting according to actual site conditions.

Loop detector relay delay

DIP 1: Delayed Confirmation and High-Speed Vehicle Filtering

When DIP 1 is set to ON, the relay output is delayed by approximately 2 seconds after a vehicle is detected. Vehicles travelling faster than 8 km/h will not trigger the relay output.

When a vehicle enters the induction loop, the system does not activate the relay immediately. It waits for approximately 2 seconds and only outputs a signal if the vehicle remains within the loop detection area.

This function helps filter out fast-moving vehicles or vehicles that pass briefly over the loop, reducing false triggering. It also ensures that the vehicle has slowed down, stopped, or reached the designated position before activating equipment such as a barrier gate, camera, or weighing system.

This function is suitable for parking entrances, toll stations, vehicle inspection areas, weighbridges, and other applications requiring low-speed vehicle confirmation.

Loop detector ASB

DIP 2: ASB — Automatic Sensitivity Boost

When DIP 2 is set to ON, the Automatic Sensitivity Boost (ASB) function is enabled. After a vehicle is initially detected, the detector automatically increases its sensitivity to maintain stable vehicle presence detection.

This function helps prevent detection loss when vehicles with high or uneven chassis profiles pass over the loop, particularly trucks, trailers, and semi-trailers.

Please note that enabling ASB may slightly reduce the detection response speed.



Loop detector

DIP 3 & DIP 4: Relay B Output Mode

DIP 3 and DIP 4 are used to configure the operating mode of Relay B.

DIP 3 OFF / DIP 4 OFF — Entry Pulse Output
Relay B generates a momentary pulse when a vehicle enters the induction loop. This mode is suitable for barrier activation, entry image capture, and vehicle counting.

DIP 3 ON / DIP 4 OFF — Exit Pulse Output
Relay B generates a momentary pulse when a vehicle leaves the induction loop. This mode is suitable for exit image capture, departure counting, and other exit-triggered functions.

DIP 3 OFF / DIP 4 ON — Presence Output
Relay B remains activated while a vehicle is present over the loop and resets after the vehicle leaves. This mode is suitable for barrier anti-crushing protection, vehicle presence confirmation, and gate-hold-open applications.

DIP 3 ON / DIP 4 ON — Relay B Disabled
Only Relay A provides an output, while Relay B is disabled. This mode is suitable for applications requiring a single relay output.

single channel loop detector

DIP 5: Vehicle Presence Mode

DIP 5 is used to configure the vehicle presence detection mode.

DIP 5 ON — Permanent Presence Mode
The detector maintains the vehicle presence output continuously while the vehicle remains over the loop. The output resets only after the vehicle leaves. This mode is suitable for barrier anti-crushing protection, gate hold-open control, and long-term vehicle presence detection.

DIP 5 OFF — Limited Presence Mode
If a vehicle remains over the loop beyond the preset period, the detector automatically resets and treats the loop as unoccupied. This mode helps reduce unwanted operation caused by prolonged vehicle presence or environmental interference.

For standard applications, it is recommended to set DIP 5 to OFF.

single channel loop detector

DIP 6, DIP 7 & DIP 8: Relay A Release Delay

DIP 6, DIP 7, and DIP 8 are used to set how long Relay A remains activated after the vehicle leaves the induction loop. The relay resets automatically once the selected delay time has elapsed.

Available delay settings:

  • OFF / OFF / OFF: 0 seconds
  • ON / OFF / OFF: 2 seconds
  • OFF / ON / OFF: 5 seconds
  • ON / ON / OFF: 8 seconds
  • OFF / OFF / ON: 10 seconds
  • ON / OFF / ON: 15 seconds
  • OFF / ON / ON: 20 seconds
  • ON / ON / ON: 30 seconds

This function is suitable for delayed barrier closing, gate hold-open control, continuous vehicle passage, and applications requiring additional response time for cameras, controllers, or other connected equipment.

single channel loop detector

DIP 9 & DIP 10: Operating Frequency Setting

DIP 9 and DIP 10 are used to adjust the induction loop operating frequency within a range of approximately 40–80 kHz.

DIP 9 OFF / DIP 10 OFF — High Frequency
DIP 9 ON / DIP 10 OFF — Medium-High Frequency
DIP 9 OFF / DIP 10 ON — Medium-Low Frequency
DIP 9 ON / DIP 10 ON — Low Frequency

When two or more loops of similar size are installed close to each other, please set the adjacent loops to different operating frequencies. This helps prevent crosstalk and mutual interference, ensuring stable and reliable vehicle detection.

loop detector reset button

RESET Button: Manual Reset and Recalibration

The built-in RESET button allows the loop detector to restart and reinitialize quickly during commissioning or operation.

Press the RESET button when the detector operates abnormally, becomes unresponsive, or requires recalibration. This restores normal operation without disconnecting the power supply or rewiring the system.

After changing the operating frequency using DIP 9 and DIP 10, please press the RESET button to apply the new settings and allow the detector to relearn the current loop parameters.

This function makes on-site commissioning, parameter adjustment, and fault recovery faster and more efficient.






Application

Car Park Barrier, LPR, Ticket/ Card Dispenser

  • Trigger LPR camera capture, reduce invalid snapshots
  • Interact with ticket dispenser: allow card-taking/payment only when vehicle arrives
  • Automatically lift barrier gate; auto-lower gate after vehicle passes
  • Anti-crash protection via loop detector under barrier arm
  • Detect tailgating vehicles to prevent fare evasion
  • Filter pedestrians & non-motor vehicles to avoid false triggers
  • Count inbound & outbound vehicles
loop detector application

Industrial Door

  • Automatically open industrial door when vehicle drives over the loop
  • Hold door open while vehicle stays within detection zone
  • Auto-close door with delay after vehicle fully leaves
  • Anti-collision protection: stop door descent if vehicle remains underneath
  • Eliminate false activation triggered by pedestrians or trolleys
loop detector application

Sliding Door, Auto Gate

  • Trigger sliding gate to auto open when vehicle passes the loop
  • Keep gate open as long as vehicle stays in detection range
  • Auto close sliding gate with adjustable delay after vehicle fully exits
  • Anti-collision safety: pause gate closing if vehicle is still detected
  • Prevent false opening caused by pedestrians, bikes or carts
  • Link with license plate camera to activate snapshot capture
loop detector application

Traffic Signal

  • Detects vehicles on one lane to request green light
  • Triggers red-light running capture at stop line
  • Counts vehicles for basic traffic flow statistics
  • Supports basic adaptive green timing adjustment
  • Skips green phase for empty lanes to boost efficiency
  • Outputs relay signals to signal controllers and cameras
loop detector application

Bollards

  • Triggers bollard to lower automatically when vehicle arrives
  • Delays bollard re-rising after vehicle fully leaves detection zone
  • Anti-collision: halts bollard ascent if vehicle stays underneath
  • Filters pedestrians & non-motor vehicles to avoid false activation
  • Outputs relay signals to connect with bollard control system
  • Fits single-lane bollard access points with one detection zone
loop detector application

High Bed Vehicle



Used to detect high bed vehicles.

Used in carparks, streets, factories, warehouses.

Automatic sensitivity boost (ASB) ensures a reliable detection of high bed vehicle

such as buses and trucks.

loop detector application

ETC

  • Triggers ETC antenna to start toll collection when vehicle enters
  • Controls barrier gate to lower automatically after vehicle passes
  • Provides anti-crash protection by keeping gate open if vehicle remains
  • Counts passing vehicles for traffic statistics and toll reconciliation
  • Filters pedestrians and non-motor vehicles to avoid false transactions
  • Outputs relay signals to interface with ETC lane controller
loop detector application

Weighing System

  • Triggers weighbridge system to start automatically when vehicle arrives
  • Verifies vehicle is fully on scale for accurate weighing results
  • Resets weighing equipment after vehicle fully exits for next use
  • Interlocks with barrier gate to release vehicle post weighing
  • Counts weighed vehicles for transaction records and statistics
  • Filters pedestrians & non-motor vehicles to avoid false triggers
loop detector application














Size and Package Size

loop detector size JUTAI Single Channel Loop Detector LD-100 LD-102 23






 Production


loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

loop detector production

production

production



 Certification

vehicle loop detector





Product Series

LD-100 LD-102 LD-200 LD-202 JTHT-11

high sensitive loop detector

Single Channel

100-240 V AC

loop detector

Single Channel

12-24 V AC/DC

loop detector

Dual Channel

100-240 V AC

loop detector

Dual Channel

12-24 V AV/DC

loop cable

Loop cable

305 m Teflon coil

LCR-MT



multimeter


Multimeter
