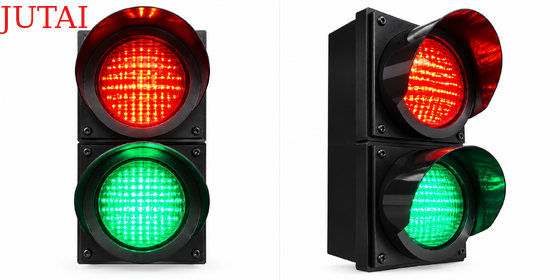

100mm LED Traffic Signal Light, 12-24V DC, Low Power Consumption for Automatic Barrier Gate Systems

The JUTAI JD112F-C 100mm LED Traffic Signal Light is designed to enhance vehicle access efficiency in automatic barrier gate systems by providing clear, immediate visual instructions to approaching drivers. At parking entrances, security checkpoints, residential communities, and commercial vehicle access points, drivers need to recognize whether a barrier is open and passage is permitted. This red and green LED traffic indicator helps communicate access status through two individually controlled signal heads, each featuring 40 LEDs within a 100mm circular display. The red indication can instruct vehicles to remain behind the barrier, while the green indication confirms permission to proceed when the connected control system authorizes passage. Operating on 12–24V DC, this version is particularly suitable for low-voltage access control installations. Its energy-efficient design consumes less than 3W per signal module, making it an economical choice for parking facilities with multiple barrier lanes or traffic lights operating for extended periods.

The JD112F-C LED Barrier Gate Traffic Signal is engineered for convenient integration with compatible automatic barrier controllers, including JUTAI's A6, A8, and A9 series. Through the controller's relay output terminals, the red and green lights can respond to barrier position signals, allowing drivers to receive visual confirmation of the gate's operating status. An external 12–24V DC power supply is recommended to ensure stable operation without placing unnecessary electrical loads on the barrier controller. The compact signal assembly can be positioned beside barrier cabinets, entrance posts, or access lanes using its C-type mounting brackets, simplifying installation in both new and existing parking systems. An IP65-rated enclosure protects the electrical components against dust and water jets, supporting reliable outdoor use. Combining low-voltage operation, minimal energy consumption, and straightforward controller connectivity, the JUTAI JD112F-C is a suitable signaling accessory for automated parking barriers, vehicle entry checkpoints, and controlled access installations.

Product Highlights

100mm High-Brightness LED Signal

The JD112F-C uses 100mm / 4-inch LED signal modules with integrated optical design. The red and green lights provide clear visual indication for drivers and operators in different environments.

Typical luminance is more than 1000 cd/m², providing good visibility for short and medium-distance traffic control applications.

Red & Green Dual Signal

The standard JD112F-C combines two independent traffic indications:

• Red – Stop / Restricted / Closed
• Green – Go / Allowed / Open

The simple red and green indication allows the signal light to be used with many types of controllers and automation systems.

Low Voltage & High Voltage Versions

JD112F-C is available in two main voltage versions to meet different system requirements.

Low Voltage Version: 12–24V

High Voltage Version: 100–220VAC

The high-voltage version supports a wide operating voltage range of approximately 85–265VAC, providing greater flexibility for different countries and electrical environments.

IP65 Weather Protection

The JD112F-C is designed with an IP65 protection rating, helping protect the internal electronic components against dust and water ingress.

This makes the traffic light suitable for indoor, semi-outdoor and outdoor installations in parking areas, factories, warehouses, logistics centers and industrial facilities.

Durable ABS + PC Housing

The housing is made from ABS + PC material, providing a good balance of mechanical strength, impact resistance, insulation performance and long-term durability.

Low Power Consumption

LED technology provides high visibility while maintaining low energy consumption.

Long LED Service Life

The LED light source is designed for long-term operation, with a service life of up to approximately 100,000 hours.

This helps reduce lamp replacement frequency and long-term maintenance costs.

Technical Specifications

Product Dimensions

The JD112F-C uses a compact vertical dual-light structure with adjustable mounting brackets, allowing convenient installation on walls, columns and equipment frames.

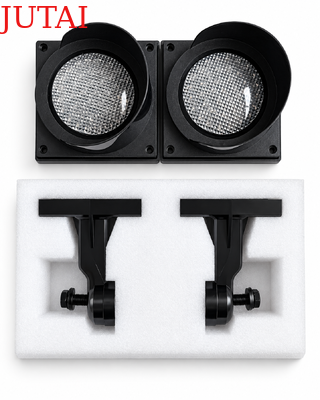

Flexible Mounting Design

JD112F-C is equipped with upper and lower mounting brackets. The bracket structure allows the traffic light to be securely fixed to walls, steel columns or other installation surfaces.

The side-mounted design also helps position the traffic light toward the driver or operator for better visibility.

Wide Range of Applications

The compact 100mm red and green traffic light can be used in many vehicle control, industrial and automation environments.

Parking Entrance & Exit

The red and green signal can provide clear stop and pass instructions at parking entrances, exits and underground parking facilities.

[Insert Parking Entrance Application Image Here]

Industrial Doors

JD112F-C can be installed beside industrial doors to indicate whether vehicles, forklifts or personnel are permitted to pass.

It can be used with sectional doors, high-speed doors, roller shutters and other automatic industrial entrance systems.

[Insert Industrial Door Application Image Here]

Loading Dock

At loading docks, the traffic light can provide clear red and green instructions to truck drivers during loading, unloading, docking and departure procedures.

Vehicle Access Lane

JD112F-C can be used at factory entrances, logistics parks, security checkpoints and controlled vehicle lanes to improve traffic organization and provide clear driving instructions.

Weighbridge & Weighing System

The traffic light can also be integrated into truck weighing and weighbridge systems.

For example, the red signal can instruct the vehicle to stop during weighing, while the green signal can indicate that weighing is complete and the vehicle may leave.

Warehouse & Logistics Center

In warehouses and logistics facilities, the JD112F-C can help manage trucks, forklifts and other vehicles at warehouse entrances, narrow passages, loading areas and internal traffic lanes.

Simple R / G / COM Control

JD112F-C uses a simple three-terminal control configuration:

This simple control method allows the traffic light to be integrated with different automation controllers, parking equipment, industrial door controllers, access control systems and weighing systems.

Production Display

JUTAI manufactures and supplies traffic signal products for professional parking, access control and industrial automation projects.

During production, the JD112F-C goes through component assembly, housing installation, wiring, functional testing and final inspection before shipment.

Our quality control process covers the product from incoming material inspection to final finished-product testing, helping maintain consistent performance between production batches.

Why Choose JUTAI JD112F-C?

• 100mm compact red and green LED signal
• High brightness above 1000 cd/m²
• IP65 protection for indoor and outdoor applications
• Durable ABS + PC housing
• 12–24V low-voltage version available
• 100–220VAC high-voltage version available
• Wide AC operating range up to 85–265VAC
• Low power consumption
• Long LED service life up to approximately 100,000 hours
• Simple R / G / COM control
• Flexible bracket mounting
• Suitable for a wide range of industrial and traffic control applications

FAQ

What is the JD112F-C?

JD112F-C is a compact 100mm red and green LED traffic light designed for vehicle access, parking, industrial automation, warehouse, logistics and traffic control applications.

What voltage versions are available?

JD112F-C is available in a 12–24V low-voltage version and a 100–220VAC high-voltage version. The AC version supports a wide operating range of approximately 85–265VAC.

Is JD112F-C suitable for outdoor installation?

Yes. JD112F-C has an IP65 protection rating and can be used in many indoor and outdoor environments.

What is the housing material?

The housing is made from ABS + PC material.

What applications can JD112F-C be used for?

Typical applications include parking entrances, industrial doors, loading docks, vehicle lanes, factory entrances, warehouses, logistics centers, access control systems and weighbridge systems.

Can it work with different controllers?

Yes. The simple red, green and common control configuration allows the traffic light to be integrated with different compatible control systems.

JUTAI Traffic Light Manufacturer

JUTAI provides traffic lights, vehicle detection sensors, access control products and entrance automation equipment for distributors, system integrators and project customers worldwide.

For JD112F-C sample orders, bulk purchasing, OEM cooperation or technical information, please contact us.
