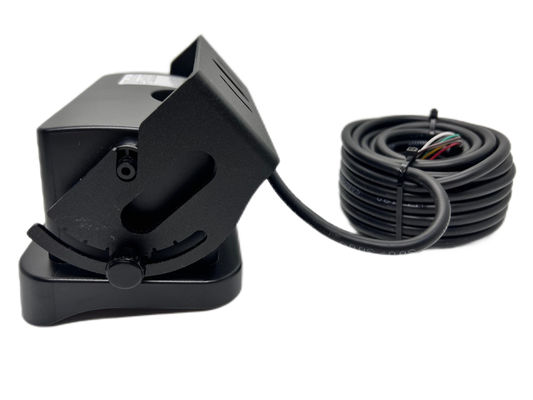

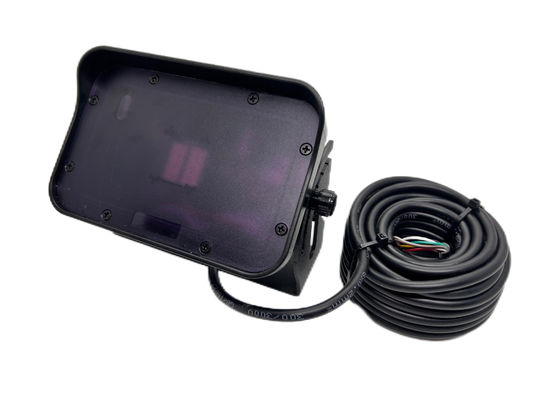

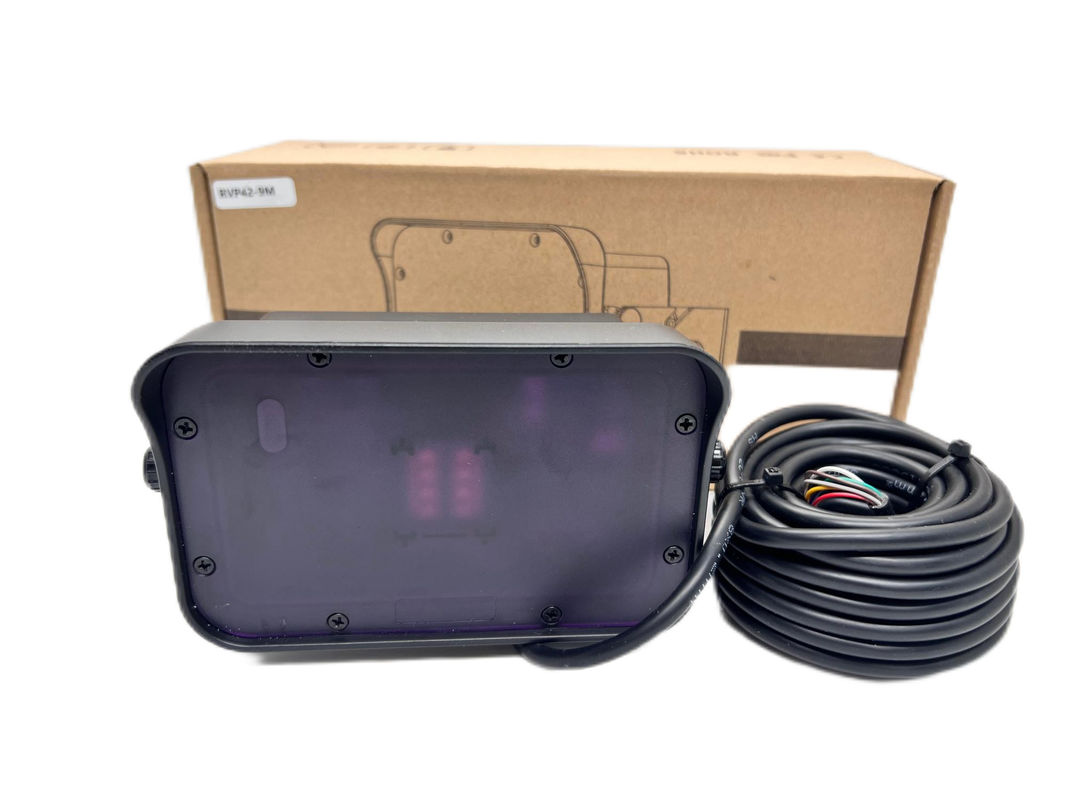

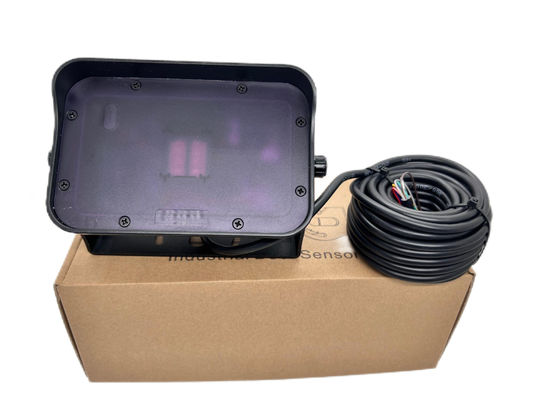

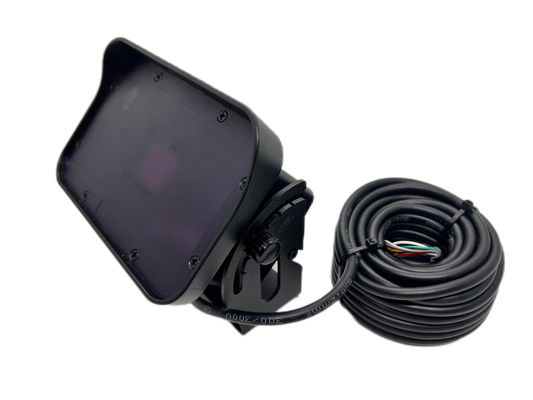

24.150 GHz Microwave Motion Radar Detect for Large automatic door

    The 24.150 GHz Microwave Motion Radar is an advanced detection system specifically designed to enhance the operation of large automatic doors. Utilizing high-frequency microwave technology, this sensor provides precise motion detection over significant distances, making it ideal for high-traffic environments such as shopping malls, airports, and large industrial facilities. By accurately sensing the presence of pedestrians and vehicles, the radar ensures that doors open swiftly and safely, facilitating smooth traffic flow and improving the overall user experience.

    In terms of performance, the 24.150 GHz radar sensor excels in various conditions, including low light and inclement weather. Its high sensitivity allows for reliable detection, minimizing the risk of accidents and ensuring safety in busy areas. The fast response time is crucial for large automatic doors, enabling them to react quickly to approaching individuals or vehicles, which is essential for maintaining efficiency in environments where time is of the essence. Additionally, the sensor’s robust design is built to withstand the demands of both indoor and outdoor applications, ensuring long-lasting functionality and minimal maintenance. By integrating the 24.150 GHz Microwave Motion Radar into large automatic door systems, facilities can significantly improve operational efficiency, enhance safety measures, and create a more welcoming environment for all users.

Feature

• 1. Car Detect Only / People Detect Only

  • Detection Mechanism: The radar distinguishes between pedestrians and vehicles by analyzing characteristics such as speed, frequency, reflective area, and movement patterns.
  • Dual Relays: The radar has two relays that manage pedestrian and vehicle signals separately. Parameters can be set to deactivate one relay, allowing the radar to detect either vehicles only or pedestrians only.

• 2. Horizontal Filtration

  • Detection Area Limitation: By restricting the detection area, the radar effectively filters out interfering signals from other directions, such as objects moving in neighboring areas.
  • Lateral Movement Exclusion: The radar will not trigger when pedestrians and vehicles move laterally across the door, reducing the chance of false triggering.

• 3. Longitudinal Orientation Recognition

  • Movement Detection: Similar to horizontal filtration, the radar can recognize the movement of objects in both forward and backward directions.
  • Adjustable Functions:
    • A: Detects only forward movement.
    • B: Detects only backward movement.
    • C: Detects both forward and backward movement.

• 4. Setting by Remote Control or Mobile App

  • Remote Control: Allows for quick and responsive setup.
  • Mobile App: Offers a simple and intuitive interface, though saving data via Bluetooth may require 30-45 seconds due to transmission delays.

• 5. Maximum Installation Height Up to 9m

  • Installation Range: The radar can be mounted at heights ranging from 2 to 9 meters.
  • Recommended Height: For optimal performance and to avoid accidental contact, it is recommended to install the radar at a height of 3 meters or more.

• 6. Adjustable Detection Area

  • Size Adjustment: The detection area can be customized to prevent false triggers and enhance accuracy.
  • Levels of Adjustment: Available in small, medium, and large area settings.

• 7. Easy Integration into Different Systems

  • Components: The radar includes a power cable and two relay signal cables for detecting people and cars.
  • System Integration: It can be integrated into various systems such as automatic door systems, radar dimming systems, traffic control systems, and security systems, offering flexible application possibilities.

Application

• 1. Industrial Door Control

  • Automatic Door Control: Industrial doors can be set to open fully for vehicles and partially or maintain a smaller opening for pedestrians, based on radar detection.
  • Shunt Control: Separately manages the two relays to handle pedestrians and vehicles differently, ensuring safety and efficiency.

• 2. Car Park Management

  • Lane Control: Manages lane gates and pedestrian gates at the car park entrance and exit based on detected vehicles or pedestrians, enabling automated management.
  • Safety Monitoring: Ensures vehicles and pedestrians stay within designated areas to minimize accidents.

• 3. Intelligent Building Management

  • Entrance Control: Differentiates between pedestrians and vehicles at building entrances to manage pedestrian and vehicle access efficiently.
  • Energy Consumption Management: Controls lighting, air conditioning, and other equipment based on detection results to optimize energy use.

• 4. Security System

  • Intrusion Detection: Distinguishes between pedestrian and vehicle intrusions, triggering appropriate alarm systems for enhanced security.
  • Automatic Locking: Automatically locks or unlocks areas based on detection results, ensuring safety.

• 5. Intelligent Traffic Management

  • Traffic Signal Control: Separately detects pedestrians and vehicles at intersections or pedestrian overpasses, controlling traffic signals to improve efficiency and safety.
  • Intelligent Parking Guidance: Guides vehicles into designated parking areas based on the number and location of detected vehicles, enhancing parking management efficiency.

• 6. Logistics and Warehouse Management

  • Sorting System: Controls different sorting equipment based on detection results to improve sorting efficiency.
  • Warehouse Door Control: Automatically manages warehouse door operations according to detected vehicle or personnel activity, improving logistics efficiency and safety.

• 7. Medical Institutions

  • Contactless Door Control: Differentiates between pedestrians and vehicles at hospital entrances to manage pedestrian and emergency vehicle access doors, reducing contact and infection risk.
  • Emergency Channel Management: Automatically opens or closes emergency channels based on detection results, ensuring quick and efficient emergency response.

Certification

RVP42-7ME	RVP42-7BW	RVP42-9ME	RVP42-9BW	RVP42-R
2-7 m Insatallation High Remote setting only	2-7m Installation High Remote Setting Mobile APP Setting	2-9m Installation High Inside Button Setting Remote Setting	2-9m Installation High Inside Button Setting Remote Setting Mobile APP Setting	Radar Remote for All Sensor
Android APP QR Code	iOS system App
Scan the QR Code to Get the  Android System APP	Search "GL Control" in iOS App store to get the APP
