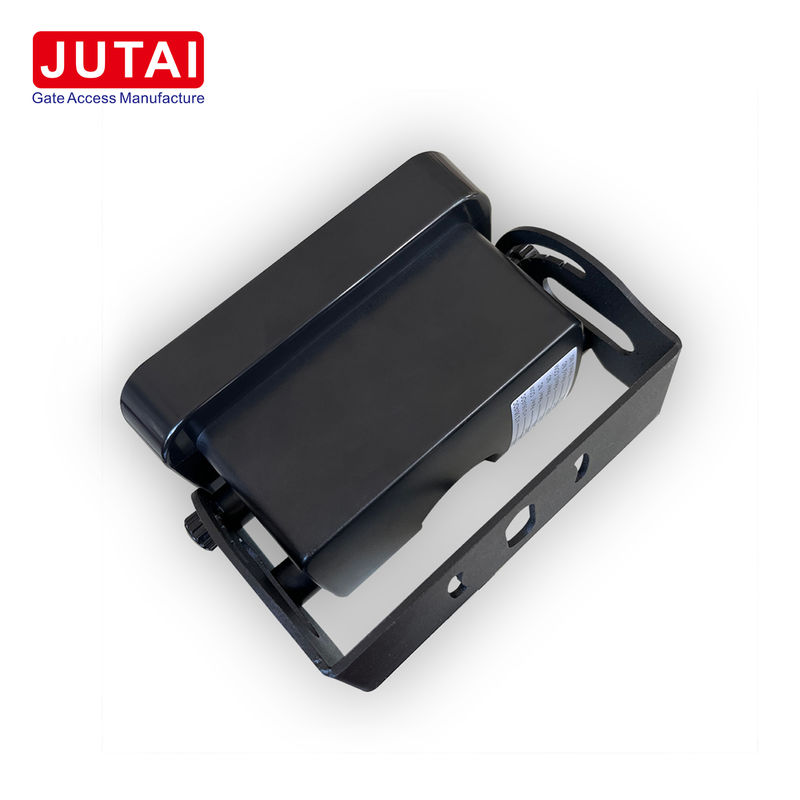

High Speed Stacking Door Cold Storage Rapid Door Automatic Door Sensor IP 65 0°-90° Longitudinal

    The High-Speed Stacking Door Cold Storage Rapid Door Automatic Door Sensor is engineered to enhance the efficiency and safety of cold storage operations. Designed for environments that require rapid access, this sensor features an impressive IP65 rating, ensuring protection against dust and water ingress. Its longitudinal detection range of 0° to 90° allows for optimal performance in various configurations, making it ideal for high-speed stacking doors in refrigerated warehouses and distribution centers. By automating door operations, this sensor minimizes energy loss and maintains precise temperature control, crucial for preserving perishable goods.

    In terms of performance, the sensor excels under demanding conditions, reliably detecting both pedestrian and vehicle movements even in low-light environments. Its high sensitivity minimizes false activations, ensuring that doors only open when necessary, which further enhances energy efficiency. The quick response time is vital for safety, allowing doors to operate swiftly to prevent accidents and streamline workflow. Additionally, the robust construction is designed to withstand the rigors of cold storage environments, promising longevity and minimal maintenance. By incorporating the High-Speed Stacking Door Cold Storage Rapid Door Automatic Door Sensor, facilities can significantly improve their operational efficiency and create a safer, more secure environment for both employees and goods, all while optimizing energy consumption in temperature-sensitive settings.

Feature

• 1. Car Detect Only / People Detect Only

  • Detection Mechanism: The radar distinguishes between pedestrians and vehicles by analyzing characteristics such as speed, frequency, reflective area, and movement patterns.
  • Dual Relays: The radar has two relays that manage pedestrian and vehicle signals separately. Parameters can be set to deactivate one relay, allowing the radar to detect either vehicles only or pedestrians only.

• 2. Horizontal Filtration

  • Detection Area Limitation: By restricting the detection area, the radar effectively filters out interfering signals from other directions, such as objects moving in neighboring areas.
  • Lateral Movement Exclusion: The radar will not trigger when pedestrians and vehicles move laterally across the door, reducing the chance of false triggering.

• 3. Longitudinal Orientation Recognition

  • Movement Detection: Similar to horizontal filtration, the radar can recognize the movement of objects in both forward and backward directions.
  • Adjustable Functions:
    • A: Detects only forward movement.
    • B: Detects only backward movement.
    • C: Detects both forward and backward movement.

• 4. Setting by Remote Control or Mobile App

  • Remote Control: Allows for quick and responsive setup.
  • Mobile App: Offers a simple and intuitive interface, though saving data via Bluetooth may require 30-45 seconds due to transmission delays.

• 5. Maximum Installation Height Up to 9m

  • Installation Range: The radar can be mounted at heights ranging from 2 to 9 meters.
  • Recommended Height: For optimal performance and to avoid accidental contact, it is recommended to install the radar at a height of 3 meters or more.

• 6. Adjustable Detection Area

  • Size Adjustment: The detection area can be customized to prevent false triggers and enhance accuracy.
  • Levels of Adjustment: Available in small, medium, and large area settings.

• 7. Easy Integration into Different Systems

  • Components: The radar includes a power cable and two relay signal cables for detecting people and cars.
  • System Integration: It can be integrated into various systems such as automatic door systems, radar dimming systems, traffic control systems, and security systems, offering flexible application possibilities.

Application

• 1. Industrial Door Control

  • Automatic Door Control: Industrial doors can be set to open fully for vehicles and partially or maintain a smaller opening for pedestrians, based on radar detection.
  • Shunt Control: Separately manages the two relays to handle pedestrians and vehicles differently, ensuring safety and efficiency.

• 2. Car Park Management

  • Lane Control: Manages lane gates and pedestrian gates at the car park entrance and exit based on detected vehicles or pedestrians, enabling automated management.
  • Safety Monitoring: Ensures vehicles and pedestrians stay within designated areas to minimize accidents.

• 3. Intelligent Building Management

  • Entrance Control: Differentiates between pedestrians and vehicles at building entrances to manage pedestrian and vehicle access efficiently.
  • Energy Consumption Management: Controls lighting, air conditioning, and other equipment based on detection results to optimize energy use.

• 4. Security System

  • Intrusion Detection: Distinguishes between pedestrian and vehicle intrusions, triggering appropriate alarm systems for enhanced security.
  • Automatic Locking: Automatically locks or unlocks areas based on detection results, ensuring safety.

• 5. Intelligent Traffic Management

  • Traffic Signal Control: Separately detects pedestrians and vehicles at intersections or pedestrian overpasses, controlling traffic signals to improve efficiency and safety.
  • Intelligent Parking Guidance: Guides vehicles into designated parking areas based on the number and location of detected vehicles, enhancing parking management efficiency.

• 6. Logistics and Warehouse Management

  • Sorting System: Controls different sorting equipment based on detection results to improve sorting efficiency.
  • Warehouse Door Control: Automatically manages warehouse door operations according to detected vehicle or personnel activity, improving logistics efficiency and safety.

• 7. Medical Institutions

  • Contactless Door Control: Differentiates between pedestrians and vehicles at hospital entrances to manage pedestrian and emergency vehicle access doors, reducing contact and infection risk.
  • Emergency Channel Management: Automatically opens or closes emergency channels based on detection results, ensuring quick and efficient emergency response.

Product Series

RVP42-7ME	RVP42-7BW	RVP42-9ME	RVP42-9BW	RVP42-R
2-7 m Insatallation High Remote setting only	2-7m Installation High Remote Setting Mobile APP Setting	2-9m Installation High Inside Button Setting Remote Setting	2-9m Installation High Inside Button Setting Remote Setting Mobile APP Setting	Radar Remote for All Sensor
Android APP QR Code	iOS system App
Scan the QR Code to Get the Android System APP	Search "GL Control" in iOS App store to get the APP
