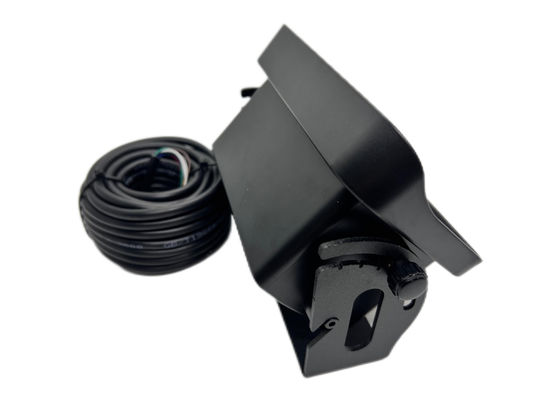

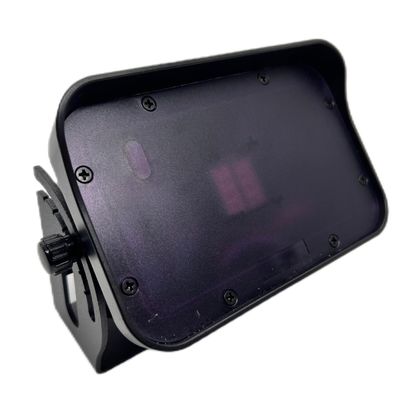

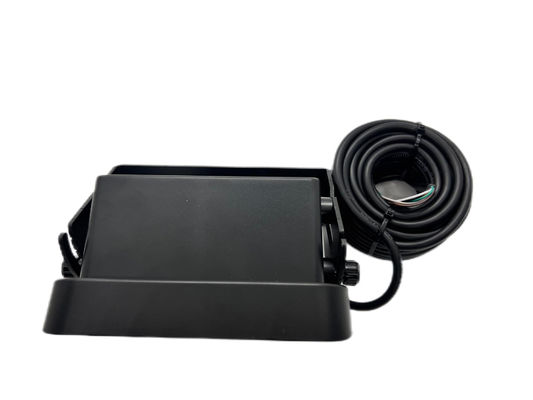

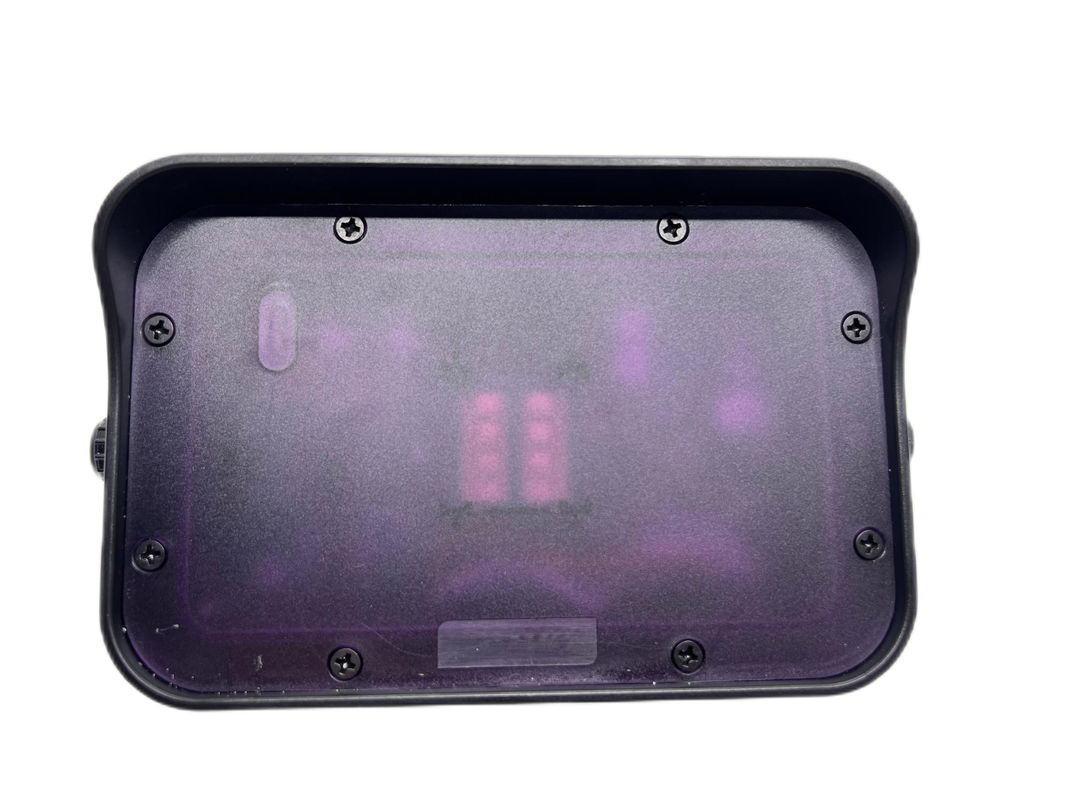

High Detection Accuracy Cold Storage Rapid Door Millimeter Wave Radar Sensor

    The Vehicle Detect Only IP 65 Fast Response Speed Rolling Up Motion Sensor is a cutting-edge solution designed to optimize the operation of rolling up doors in high-traffic environments. With an IP 65 rating, this sensor is dust-tight and protected against water jets, making it ideal for outdoor and industrial applications where durability is essential. Designed specifically to detect vehicle movements, this sensor ensures that doors operate efficiently, allowing for seamless entry and exit while enhancing safety protocols in environments such as warehouses, loading docks, and commercial facilities.

    In terms of performance, this motion sensor excels with its fast response speed, allowing for immediate activation of rolling up doors as vehicles approach. Its high sensitivity minimizes the risk of false triggers, ensuring that doors only open when necessary, which helps conserve energy and maintain optimal temperature control in climate-sensitive areas. The sensor’s robust construction is engineered to withstand the rigors of daily use in demanding conditions, ensuring longevity and minimal maintenance. By incorporating the Vehicle Detect Only IP 65 Fast Response Speed Rolling Up Motion Sensor into their door systems, businesses can significantly improve operational efficiency, enhance safety measures, and create a more streamlined environment for vehicle traffic, ultimately supporting better workflow and productivity.

Feature

• 1. Car Detect Only / People Detect Only

  • Detection Mechanism: The radar distinguishes between pedestrians and vehicles by analyzing characteristics such as speed, frequency, reflective area, and movement patterns.
  • Dual Relays: The radar has two relays that manage pedestrian and vehicle signals separately. Parameters can be set to deactivate one relay, allowing the radar to detect either vehicles only or pedestrians only.

• 2. Horizontal Filtration

  • Detection Area Limitation: By restricting the detection area, the radar effectively filters out interfering signals from other directions, such as objects moving in neighboring areas.
  • Lateral Movement Exclusion: The radar will not trigger when pedestrians and vehicles move laterally across the door, reducing the chance of false triggering.

• 3. Longitudinal Orientation Recognition

  • Movement Detection: Similar to horizontal filtration, the radar can recognize the movement of objects in both forward and backward directions.
  • Adjustable Functions:
    • A: Detects only forward movement.
    • B: Detects only backward movement.
    • C: Detects both forward and backward movement.

• 4. Setting by Remote Control or Mobile App

  • Remote Control: Allows for quick and responsive setup.
  • Mobile App: Offers a simple and intuitive interface, though saving data via Bluetooth may require 30-45 seconds due to transmission delays.

• 5. Maximum Installation Height Up to 9m

  • Installation Range: The radar can be mounted at heights ranging from 2 to 9 meters.
  • Recommended Height: For optimal performance and to avoid accidental contact, it is recommended to install the radar at a height of 3 meters or more.

• 6. Adjustable Detection Area

  • Size Adjustment: The detection area can be customized to prevent false triggers and enhance accuracy.
  • Levels of Adjustment: Available in small, medium, and large area settings.

• 7. Easy Integration into Different Systems

  • Components: The radar includes a power cable and two relay signal cables for detecting people and cars.
  • System Integration: It can be integrated into various systems such as automatic door systems, radar dimming systems, traffic control systems, and security systems, offering flexible application possibilities.

Application

• 1. Industrial Door Control

  • Automatic Door Control: Industrial doors can be set to open fully for vehicles and partially or maintain a smaller opening for pedestrians, based on radar detection.
  • Shunt Control: Separately manages the two relays to handle pedestrians and vehicles differently, ensuring safety and efficiency.

• 2. Car Park Management

  • Lane Control: Manages lane gates and pedestrian gates at the car park entrance and exit based on detected vehicles or pedestrians, enabling automated management.
  • Safety Monitoring: Ensures vehicles and pedestrians stay within designated areas to minimize accidents.

• 3. Intelligent Building Management

  • Entrance Control: Differentiates between pedestrians and vehicles at building entrances to manage pedestrian and vehicle access efficiently.
  • Energy Consumption Management: Controls lighting, air conditioning, and other equipment based on detection results to optimize energy use.

• 4. Security System

  • Intrusion Detection: Distinguishes between pedestrian and vehicle intrusions, triggering appropriate alarm systems for enhanced security.
  • Automatic Locking: Automatically locks or unlocks areas based on detection results, ensuring safety.

• 5. Intelligent Traffic Management

  • Traffic Signal Control: Separately detects pedestrians and vehicles at intersections or pedestrian overpasses, controlling traffic signals to improve efficiency and safety.
  • Intelligent Parking Guidance: Guides vehicles into designated parking areas based on the number and location of detected vehicles, enhancing parking management efficiency.

• 6. Logistics and Warehouse Management

  • Sorting System: Controls different sorting equipment based on detection results to improve sorting efficiency.
  • Warehouse Door Control: Automatically manages warehouse door operations according to detected vehicle or personnel activity, improving logistics efficiency and safety.

• 7. Medical Institutions

  • Contactless Door Control: Differentiates between pedestrians and vehicles at hospital entrances to manage pedestrian and emergency vehicle access doors, reducing contact and infection risk.
  • Emergency Channel Management: Automatically opens or closes emergency channels based on detection results, ensuring quick and efficient emergency response.

Certification

Product Series

RVP42-7ME	RVP42-7BW	RVP42-9ME	RVP42-9BW	RVP42-R
2-7 m Insatallation High Remote setting only	2-7m Installation High Remote Setting Mobile APP Setting	2-9m Installation High Inside Button Setting Remote Setting	2-9m Installation High Inside Button Setting Remote Setting Mobile APP Setting	Radar Remote for All Sensor
Android APP QR Code	iOS system App
Scan the QR Code to Get the Android System APP	Search "GL Control" in iOS App store to get the APP
